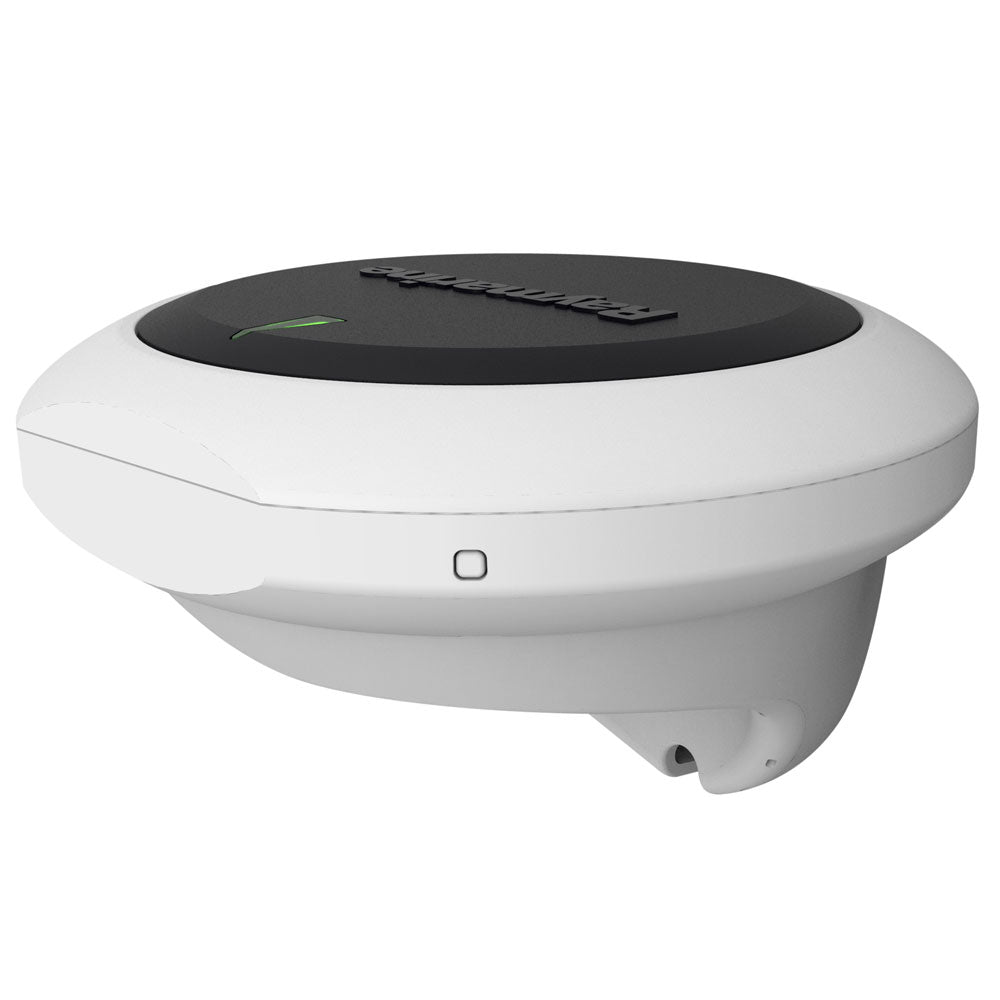

Raymarine EV-1 Sensor Core - 9-Axis Marine Autopilot Sensor for Evolution Systems

The EV Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalk^ng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalk^ng and NMEA2000 networks.

Features:

• Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change

• Flexible installation options. Mount above or below deck

• Simple SeaTalk^ng connectivity to the control head and ACU

• Solid state sensor technology delivers dynamic accuracy to within 2 in all conditions

• Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes

• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

The Raymarine EV-1 Sensor Core is a vital component for enhancing your vessel's autopilot performance with advanced 9-axis motion monitoring. Designed specifically for Evolution mechanical and hydraulic autopilot systems, this sensor core provides precise heading, pitch, roll, and yaw data, ensuring smooth and accurate autopilot operation even in challenging sea conditions. Its robust, fully sealed enclosure meets IPX6 and IPX7 waterproofing standards, allowing flexible installation options above or below deck for optimal placement and protection. The EV-1 seamlessly integrates with SeaTalk^ng networking, providing a single cable connection for power and data to the autopilot's actuator control unit (ACU) and extended networks, simplifying setup and reducing clutter. Equipped with solid-state sensors, the EV-1 offers dynamic accuracy within 2 inches, compensating automatically for onboard magnetic interference to maintain reliable heading information in all environments, including extreme northern and southern latitudes. This sensor core delivers fast, dependable heading data essential for MARPA, radar overlay, and heading modes on Raymarine multifunction displays, enhancing navigation safety and precision. Whether installing above or below deck, the EV-1 Sensor Core is engineered for durability, precision, and ease of use, making it an indispensable upgrade for serious sailors seeking reliable autopilot performance in a compact, easy-to-install package. Fully compliant with Prop 65 standards, this sensor core ensures safety and high-quality performance in demanding marine conditions. Upgrade your vessel's autopilot system with the Raymarine EV-1 Sensor Core for superior vessel control and peace of mind on every voyage.

Features:

• Precision monitoring of heading, pitch, roll, and yaw for dynamic autopilot adjustment

• Flexible installation options above or below deck

• Simple SeaTalk^ng connectivity for easy integration with control head and ACU

• Solid-state sensor technology provides dynamic accuracy within 2 inches

• Auto-compensation for magnetic interference ensures reliable heading data in all conditions

• Fast, accurate heading information for MARPA, radar overlay, and navigation modes
