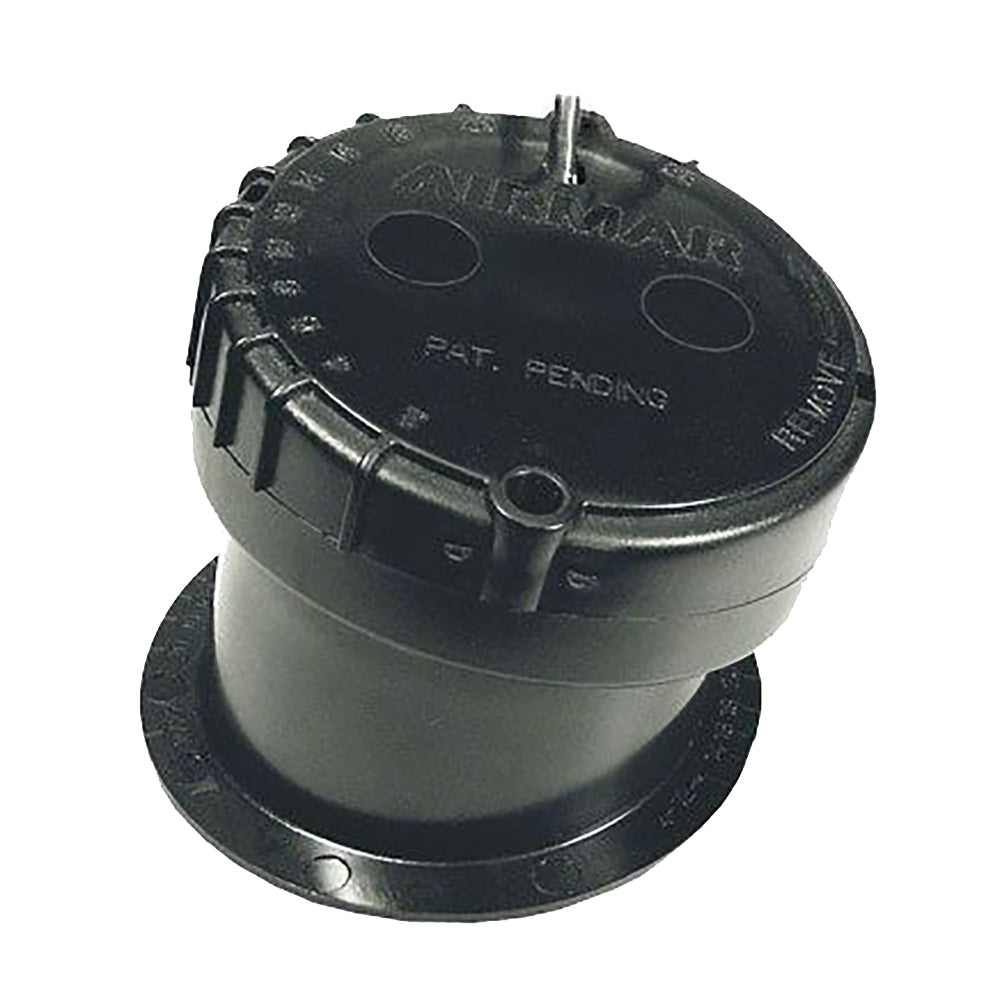

Raymarine P79S Smart Depth Sensor with SeaTalkNG Adapter, A80373 and A06045

P79S Smart Sensor with SeaTalkNG Adapter with A80373 A06045

The P79S brings depth intelligence to your boat. Featuring Airmars Smart Sensor technology, the P79S delivers processed depth data right to the onboard network for multiple displays to use.

The P79S includes a plastic mounting base that is aligned to the centerline and secured inside the hull. Then it is filled with non-toxic antifreeze. The transducer is inserted into the base and adjusted for the proper deadrise offset, ensuring the beam will be shooting straight down for maximum echo returns. The antifreeze provides the best medium to transmit through solid fiberglass and into the surrounding water. The major benefit of an in-hull transducer is no protruding features on the exterior of the hull, making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 8 m (25') with a solid fiberglass hull.

Airmar's Smart Sensors have embedded microelectronicsthe transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth data is a single cable into a compatible network or display. Available as an analog sensor or a digital Smart Sensor that can output in the NMEA 0183 or NMEA 2000 format.

Features:

• Depth only
• 60 W
• 235 kHz frequency prevents mutual interference with other echo sounders on the vessel
• 7 beamwidth
• Depth range:
  • NMEA 0183 model has a maximum depth of 100 m (330')
  • NMEA 2000 model has a maximum depth of 150 m (500')
  • Installed with a hand-adjustable base. No cutting is needed.
• NMEA 2000 certified cable assembly
• No holes to drill
• In-hull installation can be done while the boat is in the water
• Urethane transducer with adjustable, plastic, mounting base
• Available in NMEA 0183 or NMEA 2000 standard
• NMEA 2000 certified or NMEA 0183 cable
• Installed with a hand-adjustable base
• No cutting is needed

Raymarine P79S Smart Sensor with SeaTalkNG Adapter brings processed depth data directly to your compatible onboard network or display. Designed for smaller boats up to 25 feet with solid fiberglass hulls, this depth-only in-hull transducer provides a clean installation without an exterior through-hull protrusion.

The P79S uses Airmar Smart Sensor technology, placing the transducer element and signal processor close together so depth information is processed within the sensor. Its 235 kHz frequency helps prevent mutual interference with other echo sounders on the vessel, while the 7-degree beamwidth supports focused depth readings. The included plastic mounting base is secured inside the hull, filled with non-toxic antifreeze, and adjusted by hand to account for the hull’s deadrise. This positions the beam straight down for effective signal transmission through a solid fiberglass hull.

Installation does not require drilling holes or cutting the hull, and the in-hull design can be completed while the boat is in the water. With no exterior component extending below the hull, the P79S is well suited to trailered or lifted boats. This Raymarine model includes a SeaTalkNG adapter, A80373, and A06045, along with a certified cable assembly for connection to compatible marine network equipment.

Key Features

• Smart depth sensing: Processes depth data within the sensor for delivery to compatible networked displays.
• In-hull installation: Installs inside a solid fiberglass hull without drilling holes or cutting the hull.
• Adjustable mounting base: Hand-adjustable plastic base helps align the beam for the hull’s deadrise.
• 235 kHz frequency: Helps reduce mutual interference with other echo sounders on the vessel.
• Boat-friendly design: No exterior protrusion, making it suitable for trailered or lifted boats.
• Network connectivity: Includes a SeaTalkNG adapter with A80373 and A06045.

Product Details

• Brand: Raymarine
• Model: P79S
• Part number: T70278
• Product type: Smart in-hull depth sensor
• Function: Depth only
• Power: 60 watts
• Frequency: 235 kHz
• Beamwidth: 7 degrees
• Maximum depth range: Up to 330 feet for the NMEA 0183 model or up to 500 feet for the NMEA 2000 model
• Hull compatibility: Solid fiberglass hulls
• Recommended boat size: Up to 25 feet
• Installation: In-hull, hand-adjustable base; no drilling or cutting required
• Included components: SeaTalkNG adapter, A80373, and A06045
• Cable: NMEA 2000 certified cable assembly
• Transducer material: Urethane

Choose the Raymarine P79S Smart Sensor for a practical, low-profile depth-sensing solution designed for compatible marine network systems and solid fiberglass boats.
