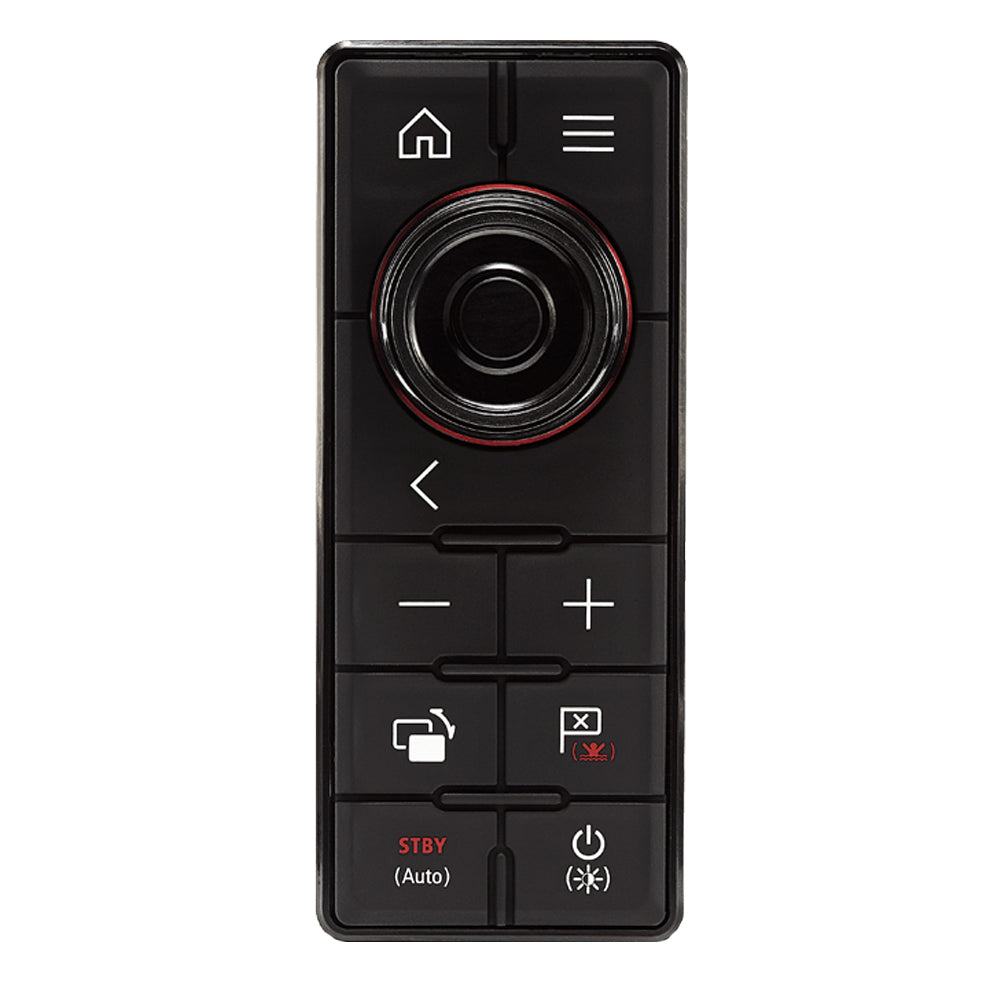

Raymarine RMK-10 System Remote Control Portrait Keypad for Multifunction Displays

RMK-10 System Remote Control Portrait Keypad

Remote Keypad is an ultra-compact wired keypad accessory that provides full control of aSeries, cSeries, eSeries, eS Series and gS Series Multifunction Displays (MFDs) from any mounting location.

The fully backlit RMK-10 includes dedicated keys for home, menu, zoom in/out, window control, waypoint management, power/brightness, as well as Evolution autopilot control.

RMK-10 also features the same multifunction rotary controller with the integrated cursor pad found on eS Series multifunction displays

The RMK-10 can be surface-mounted or flush-mounted, and is available with key mats for horizontal or vertical installation. This gives you the flexibility to install the RMK-10 just about anywhere.

Utilising Raymarines RayNet high speed networking, the RMK-10 can be setup to control a single multifunction display, or multiple displays mounted at the same location. When controlling multiple displays on the same helm, the RMK-10 provides seamless control across all of the displays.

When used with aSeries or gS Series Multitouch displays, the RMK-10 brings full HybridTouch control capability to these products. The RMK-10 integrates seamlessly with the LightHouse II user interface and allows the navigation system to be operated solely by touch, by keypad, or any variation between.

Mounting Options
The RMK-10 is the perfect solution for controlling MFDs mounted beyond arms reach, or in overhead electronics boxes. Instead of reaching for the MFD, the RMK-10 brings the systems controls to you.

For the ultimate in convenience, mount the RMK-10 in the arm of your favorite helm chair. Now its easy to sit back, relax and enjoy the ride on autopilot, while still being able to interact with your navigation system.

RMK-10 is also great for bringing remote system control to secondary monitors and onboard LCD TV sets connected to the VGA or HDMI output of select e-Series, eS-Series and gS-Series displays. Now you can see and control your Raymarine navigation system from a below-deck navigation table, salon or stateroom.

Specifications:

• PoE classClass 1
• Nominal supply voltage12 / 24 V dc
• Operating voltage range10.8V dc to 31.2V dc
• Power consumption3.84W

Environmental:

• Operating temperature-25C to +55C (-13F to 131F)
• Storage temperature-30C to +70C (-22F to 158F)
• Relative humidityMaximum 75%
• Waterproof ratingIPX6

Wired Connections:

• Network / power1 x RayNet connector | (gS Series - 1000 Mb/s plus PoE) | (aSeries , cSeries, eSeries - 100 Mb/s)
• Alternate power1 x power connector

Enhance your marine navigation experience with the Raymarine RMK-10 System Remote Control Portrait Keypad. Designed for seamless integration with aSeries, cSeries, eSeries, eS Series, and gS Series Multifunction Displays (MFDs), this compact wired keypad offers full control from any mounting location, making it ideal for both primary and secondary navigation setups. Its fully backlit interface features dedicated keys for essential functions such as home, menu, zoom in/out, window control, waypoint management, power/brightness adjustment, and Evolution autopilot control, allowing for intuitive operation even in low-light conditions. The multifunction rotary controller with an integrated cursor pad, identical to the one found on eS Series MFDs, provides precise and responsive navigation control, enhancing your ability to manage complex systems effortlessly. The RMK-10 offers versatile mounting options including surface-mount or flush-mount configurations, with key mats available for horizontal or vertical installation, enabling flexible placement just about anywhere on your vessel. Leveraging Raymarine's RayNet high-speed networking, the keypad can control a single display or multiple displays simultaneously, providing seamless management across all connected systems from a centralized point. When used with aSeries or gS Series Multitouch displays, the RMK-10 unlocks full HybridTouch control, allowing the navigation system to be operated via touch, keypad, or a combination of both for maximum convenience. Its compact size and mounting flexibility make it perfect for controlling systems mounted beyond arm’s reach, in overhead electronics boxes, or even mounted on the helm chair for easy access. Additionally, the RMK-10 is ideal for remotely controlling secondary monitors or onboard LCD TVs connected via VGA or HDMI outputs, enabling you to operate your navigation system from below deck, the salon, or a stateroom. Built to withstand marine conditions, the keypad features an IPX6 waterproof rating, operates over a wide temperature range, and consumes minimal power, making it a reliable addition to your vessel’s control suite. With easy integration into existing Raymarine networks, the RMK-10 ensures you stay in command of your vessel’s navigation and autopilot functions with comfort and precision, whether at the helm or from a remote location.

Features:

• Backlit control keys for navigation and autopilot functions

• Multifunction rotary controller with integrated cursor pad

• Flexible mounting options including surface or flush mount

• Compatible with RayNet high-speed networking for multiple display control

• Full HybridTouch compatibility with aSeries and gS Series MFDs

• Waterproof rating: IPX6 for marine durability

• Operates over a wide voltage range with low power consumption

• Designed for remote control from any location on your vessel

• Supports control of secondary monitors and onboard TVs via VGA/HDMI

• Ideal for controlling systems beyond arm’s reach or in overhead spaces
