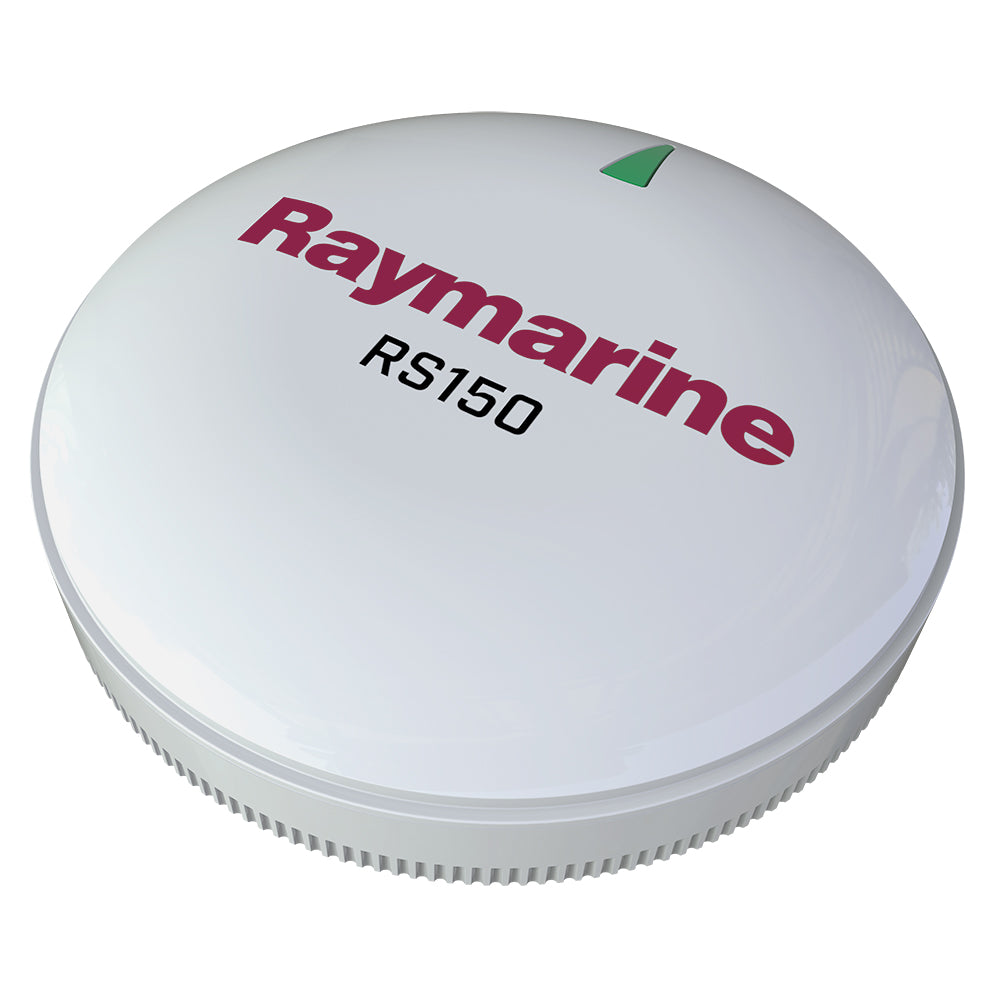

Raymarine RS150 GPS Sensor with 72-Channel GNSS Receiver and 10Hz Updates

RS150 GPS Sensor

The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

Features:

• 72-channel GPS receiver
• Fast 10Hz position updates
• Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
• A GNSS receiver with GLONASS compatibility
• Low power consumption: 30mA (1 LEN)
• SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
• Designed for low profile surface mounting or optional pole mounting

Specifications:

• Nominal supply voltage: 12V D.C. Powered by N2K bus
• Operating voltage range: 8 - 32V DC
• Power consumption: 30 mA max (NMEA LEN = 1)
• Operating temperature: -13F to 131F (-25C to +55C)
• Relative humidity: max 93%
• Waterproof: IPx6/7
• Supported connection protocols: SeaTalk^ng: NMEA 2000 (certified) (via DeviceNet adaptor)
• Sensitivity: High sensitivity - acquisition down to -163dBm
• No. of channels: 72
• Positioning System: GPS GLONASS
• Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
• Differential acquisition: Automatic
• Position accuracy (95%): <15M
• Position accuracy with SDGPS (95%): <5M
• Speed accuracy (95%): <0.3kt
• Time to first fix from cold start: <2 minutes (< 45 seconds typical)
• Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start
• Geodetic Datum: WGS84

The Raymarine RS150 GPS Sensor is a high-performance, 72-channel GPS and GNSS receiver designed for seamless integration with Raymarine navigation systems. It provides rapid 10Hz position updates, ensuring accurate and real-time navigation data for marine applications. With support for multiple satellite systems including GPS, GLONASS, and SBAS (WASS, EGNOS, MSAS, GAGAN), the RS150 delivers enhanced positioning accuracy and reliability even in challenging environments. Its low power consumption of just 30mA makes it an efficient choice for extended use onboard vessels. The sensor's compact, low-profile design allows for surface or pole mounting, providing flexible installation options tailored to your vessel's layout. Compatibility with SeaTalkng and NMEA 2000 via a device net adapter enables seamless integration with existing marine electronics and systems, simplifying setup and operation. Operating within a temperature range of -13°F to 131°F and waterproof to IPx6/7 standards, the RS150 is built to withstand harsh marine conditions. Its high sensitivity, capable of acquiring signals down to -163dBm, ensures reliable satellite lock and fast positioning even in difficult environments. The RS150's differential GPS support, combined with automatic acquisition, offers position accuracy of less than 15 meters (95%) and less than 5 meters with SBAS correction. It also provides precise speed data with an accuracy of less than 0.3 knots, and a quick time to first fix—under two minutes from a cold start and approximately eight seconds from a hot start with a 72-hour hold-up battery. The proprietary WGS84 geodetic datum ensures compatibility with global positioning standards, making the Raymarine RS150 GPS Sensor an excellent choice for navigation, chartplotting, and marine safety systems. Whether you're outfitting a new vessel or upgrading your existing navigation suite, the RS150 delivers dependable, high-precision positioning performance for demanding marine environments. Please note, the manufacturer states the product complies with Prop 65 standards for safety and environmental responsibility.

Features:

• 72-channel GPS and GNSS receiver supporting GPS and GLONASS satellite systems

• Fast 10Hz position updates for real-time navigation

• Satellite differential GPS compatibility with SBAS support including WASS, EGNOS, MSAS, and GAGAN

• Low power consumption at 30mA for efficient operation

• Compatible with SeaTalkng and NMEA 2000 via device net adapter cable

• Surface or pole mounting options for flexible installation

• IPx6/IPx7 waterproof rating for durability in harsh marine conditions

• High sensitivity acquisition down to -163dBm for reliable satellite lock

• Automatic differential acquisition with RTK-style accuracy enhancements

• Position accuracy less than 15 meters, less than 5 meters with SBAS correction

• Speed accuracy under 0.3 knots for precise navigation

• Rapid time to first fix: under 2 minutes cold start, approximately 8 seconds hot start

• Supports WGS84 geodetic datum for global compatibility

• Designed and tested to meet Prop 65 environmental standards
