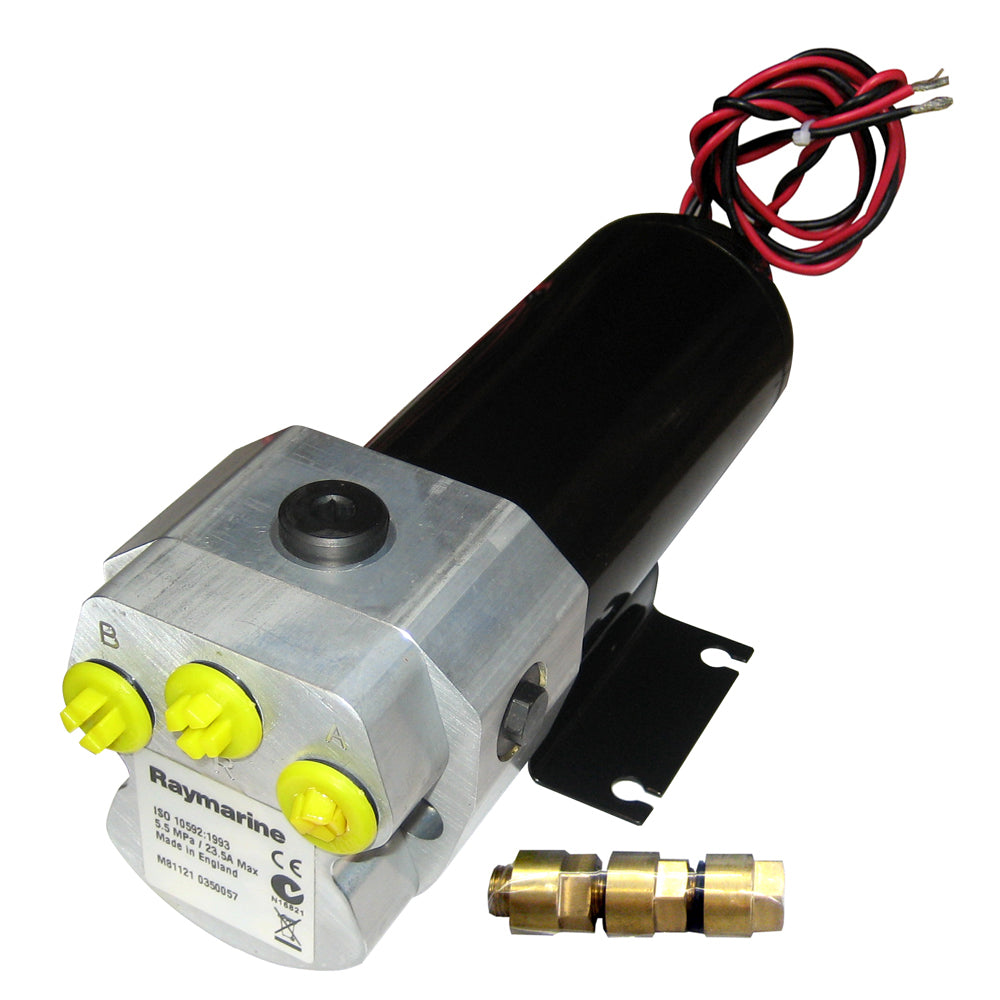

Raymarine Type 1 12V Hydraulic Pump for Steering Systems - M81120

Type 1 Pump 12volt
Reversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams.

The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepack

Corepack Used S1 or S1G

Ram Capacity 4.9in - 10.5in
(80CC-172CC)
Maximum Stall
Pressure at 12V 750psi (50bar)


(no load) 67in/min (1000cc/min)



Corepack Used S2 or S2G

Ram Capacity 4.9in - 14in
(80cc - 230cc)
Maximum Stall
Pressure at 12V 750psi (50bar)

Peak Flow Rate
(no load) 67in/min (1000CC/min)

The Raymarine Type 1 12V hydraulic pump (Part Number: M81120) is engineered for reliable reversing operation in hydraulic steering systems. Designed to work seamlessly with hydraulic steering rams ranging from 4.9 inches to 14 inches in length, this pump offers versatile compatibility with corepacks including S1/S1G and S2/S2G models. Its robust design ensures optimal performance in demanding marine steering applications, making maneuvering smooth and precise. The pump features a maximum stall pressure of 750 psi at 12V, providing reliable operation under load, while the peak flow rate of 67 inches per minute ensures quick response times for steering adjustments. Whether used with smaller or larger hydraulic rams, the Raymarine Type 1 pump delivers consistent power to keep your vessel maneuvering effortlessly in various conditions. This pump is an essential component for boat owners and marine technicians seeking a durable, high-performance hydraulic drive that guarantees safety and precision at sea. Built to meet rigorous standards, it is compatible with multiple corepack configurations, making installation straightforward and versatile. Proven to withstand marine environments, this pump is a dependable choice for maintaining optimal steering function, helping you navigate with confidence. (Note: Manufacturer states this product complies with Prop 65 safety standards.)

Features:

• Reversing hydraulic pump compatible with 12V DC power supply

• Designed for hydraulic steering rams from 4.9 inches to 14 inches in length

• Compatible with S1/S1G and S2/S2G corepacks for versatile application

• Maximum stall pressure of 750 psi (50 bar) at 12V for reliable operation under load

• Peak flow rate of 67 inches per minute (1000 cc/min) for quick steering response

• Durable construction suitable for marine environments and demanding conditions

• Easy to install with compatibility across multiple corepack models

• Built to meet rigorous safety and performance standards, including Prop 65 compliance
