20ST Orbit Winch 1 Speed
Ronstans Orbit Winches are the new benchmark in high performance alloy winches. With a combination of fresh design thinking and proven manufacturing expertise, Orbit Winches weigh significantly less and offer lower line entry heights than any other winch in their class.
Remarkably easy to service, they require no tools for disassembly or maintenance. The machined aluminium drums feature the same Power Ribs that many sailors will recognize from Andersen Stainless Steel Winches, well-known for their impressive line grip, smooth control, and minimal rope wear.
Power Ribs
The exceptional grip provided by the Power Ribs offers a multitude of benefits: requiring fewer wraps around the drum, reducing the load held in the self-tailer, and encouraging the line to slide easily upward on the drum to avoid riding turns. The non-abrasive drum surface extends the service life of running rigging and allows smooth and controlled easing, even under high loads.
No Tools Required

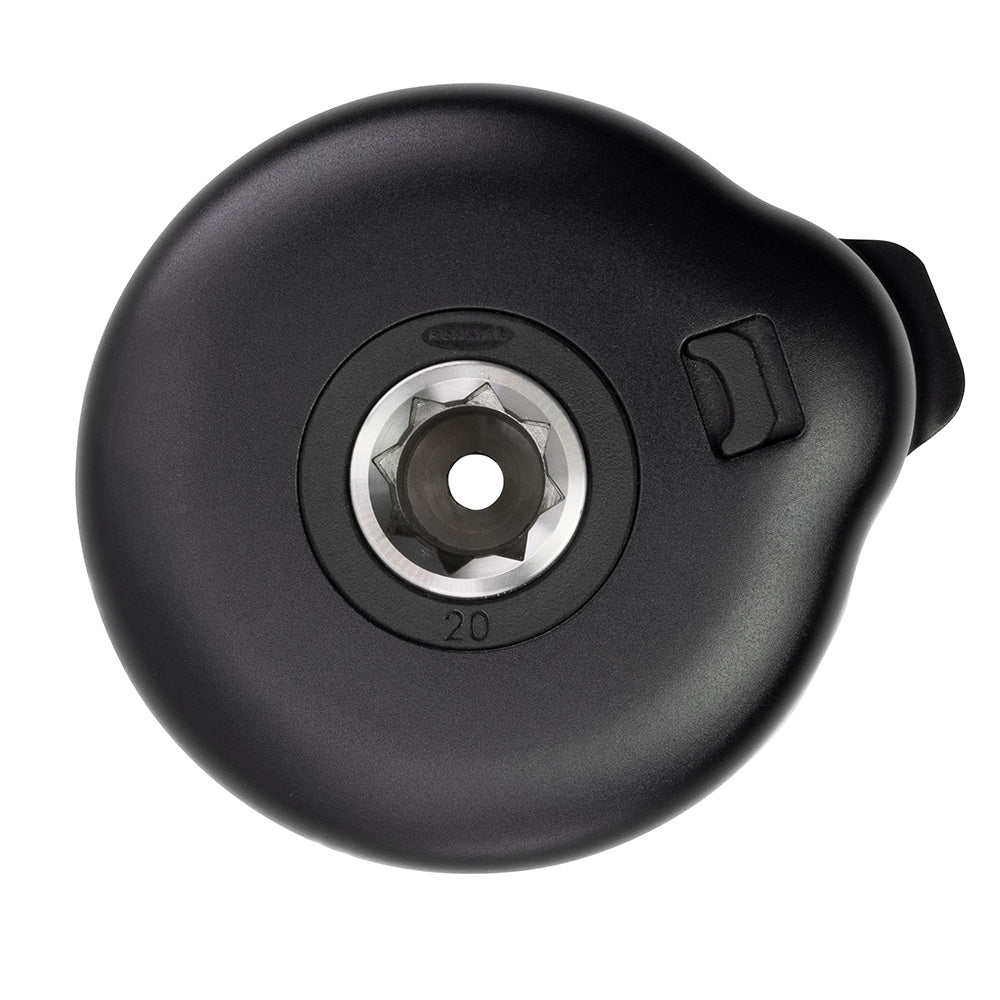

Full disassembly and reassembly can conveniently be performed without the need for any tools. To remove the drum, pull back the spring-loaded release latch, and a slight anti-clockwise rotation will allow the self-tailing arm to be lifted from the winch. From there, the drum can be removed from the winch's center stem.
When completing reassembly in reverse order, an audible click confirms positive engagement between the self-tailing arm and bayonet notches on the center stem. These notches allow the self-tailing arm to be locked in one of eight positions at rotational increments of 45 degrees.
Features:
- Lightweight machined aluminum drum
- Distinctive Power Ribs ensures a controlled grip at all times, whether tensioning or easing

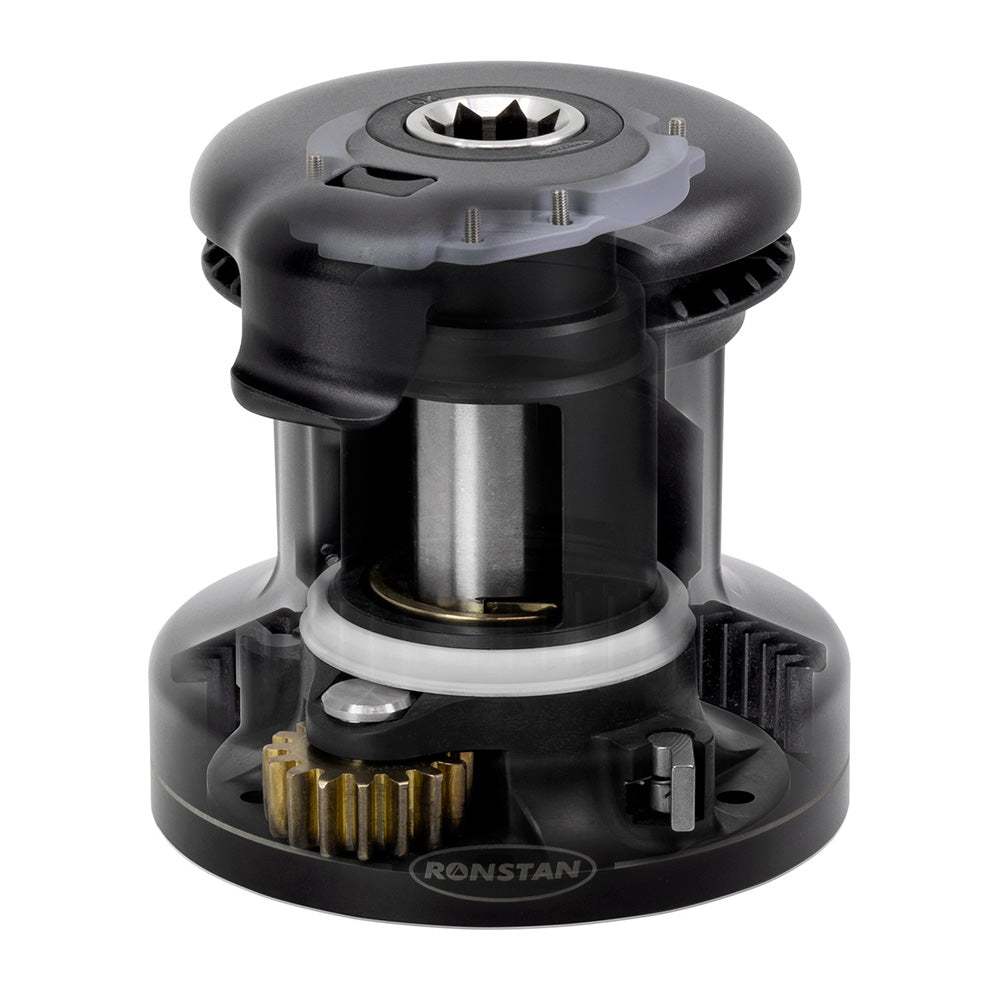

- Proven Andersen winch gearing configuration
- No tools are required for configuration and servicing
- Sprung self-tailing jaws to accept 6-10mm line
Materials:
- Hard anodized aluminum drum and center stem, aluminum self-tailing arm
- Grade 316 stainless steel shaft and pawls
- Grade 2205 stainless steel axle pins
- Aluminum bronze gears
- Glass-filled nylon self tailer
- Self-lubricating acetal bearings
Specifications:
- Weight (kilogram): 1.7kg
- Power Ratio: 18.3:1
- Base Diameter (millimeters): 120mm
- Maximum Pulling Load (kilogram): 550kg
- Drum Diameter (millimeters): 75mm
- Base Diameter (millimeters): 120mm
- Height (millimeters): 124mm
- Line Entry L (millimeters): 42mm
- Line Size (millimeters): 6-10mm
- Gear Ratio 1st Speed: 2.7:1
- Power Ratio 1st Speed: 18.3:1

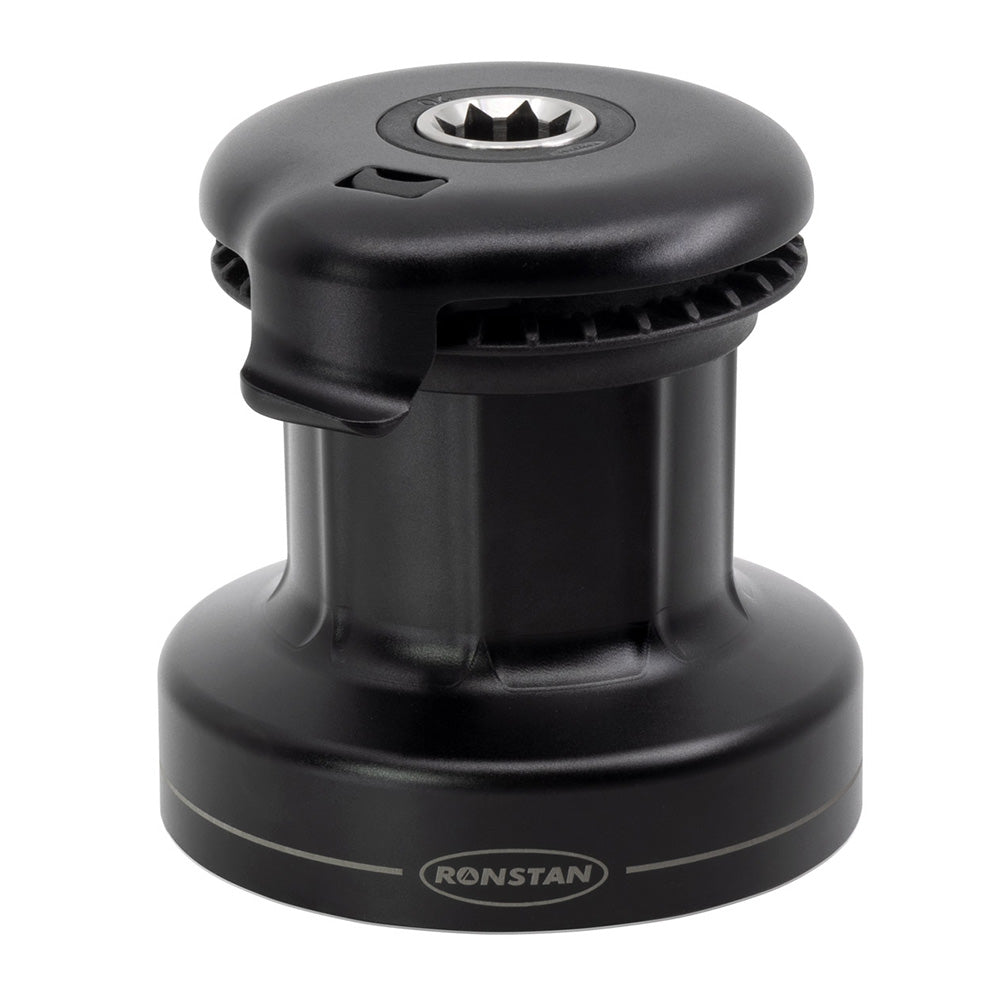

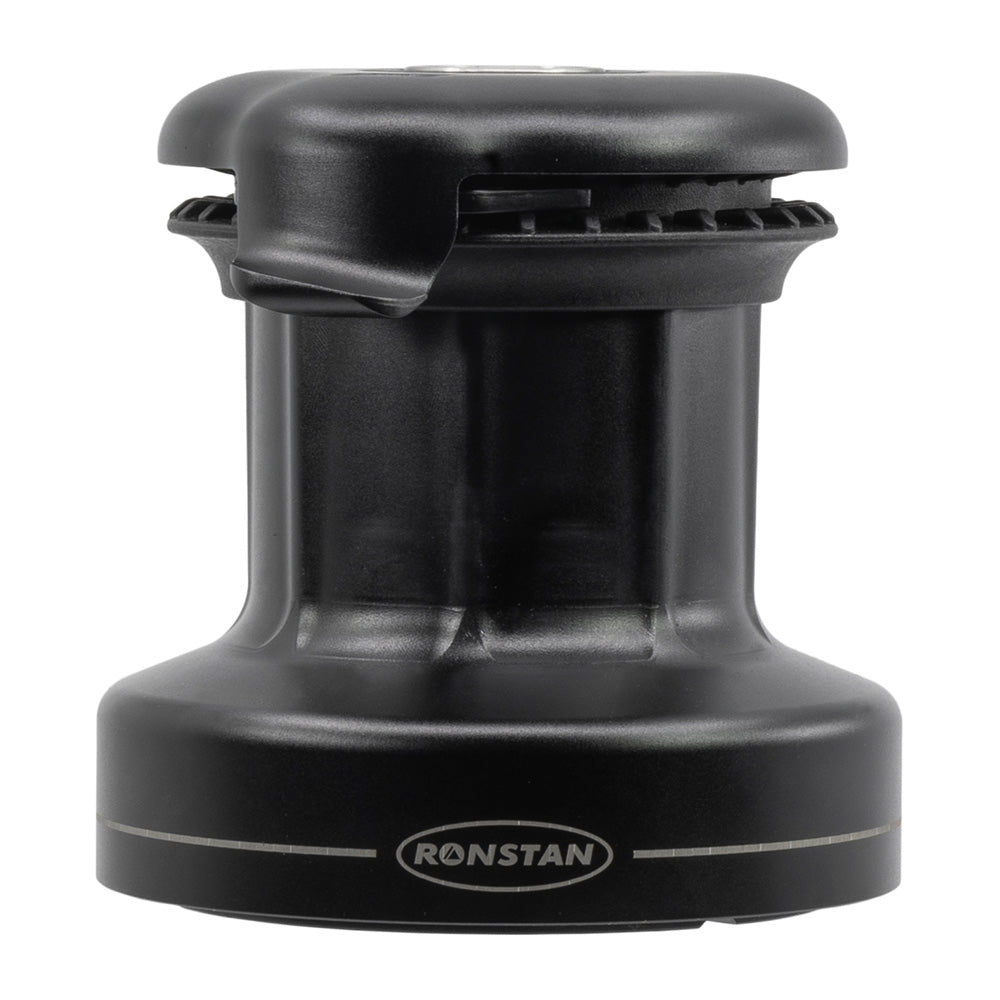

Ronstan 20ST Orbit 1-Speed Self-Tailing Sailboat Winch
The Ronstan 20ST Orbit 1-Speed Winch RA6201 is a high-performance alloy winch designed for sailors who want efficient line handling, smooth control, and simplified servicing. Its lightweight machined aluminum construction helps reduce weight on deck, while the low line entry height supports practical installation and operation on a wide range of sailing applications.
The machined aluminum drum features Ronstan Power Ribs, which provide controlled grip during both tensioning and easing. The ribbed, non-abrasive surface helps reduce the number of wraps needed around the drum, lowers the load held in the self-tailer, and helps prevent riding turns. It also supports smooth, controlled line handling while helping minimize wear on running rigging.
The Orbit winch is designed for convenient maintenance without tools. The drum and self-tailing arm can be removed and reassembled using the spring-loaded release latch and bayonet-style center stem connection. The self-tailing arm locks into one of eight positions at 45-degree rotational increments, allowing the arm to be positioned for practical line handling on deck. Sprung self-tailing jaws accept 6–10 mm line for reliable use with compatible running rigging.
Key Features:
-
Power Ribs: Provides controlled grip while tensioning or easing and helps reduce rope wear and riding turns.
-
Tool-free servicing: Allows full disassembly and reassembly without tools for convenient configuration and maintenance.
-
Lightweight alloy construction: Uses a hard-anodized aluminum drum and center stem with an aluminum self-tailing arm.
-
Self-tailing line handling: Sprung jaws accept 6–10 mm line for practical sailboat winch operation.
-
Position-adjustable arm: Locks into eight positions at 45-degree increments to support flexible installation and use.
-
Proven gearing configuration: Delivers a 2.7:1 first-speed gear ratio and an 18.3:1 power ratio.
Product Details:
-
Brand: Ronstan
-
Model: 20ST Orbit 1 Speed
-
Part Number: RA6201
-
Winch type: 1-speed self-tailing sailboat winch
-
Weight: 3.75 lb
-
Base diameter: 4.72 in
-
Drum diameter: 2.95 in
-
Height: 4.88 in
-
Line entry: 1.65 in
-
Compatible line size: 0.24–0.39 in
-
Maximum pulling load: 1,212.5 lb
-
Materials: Hard-anodized aluminum drum and center stem, aluminum self-tailing arm, Grade 316 stainless steel shaft and pawls, Grade 2205 stainless steel axle pins, aluminum bronze gears, glass-filled nylon self-tailer, and self-lubricating acetal bearings.
Choose the Ronstan RA6201 Orbit 20ST for lightweight, controlled, and serviceable line handling on compatible sailboats.
