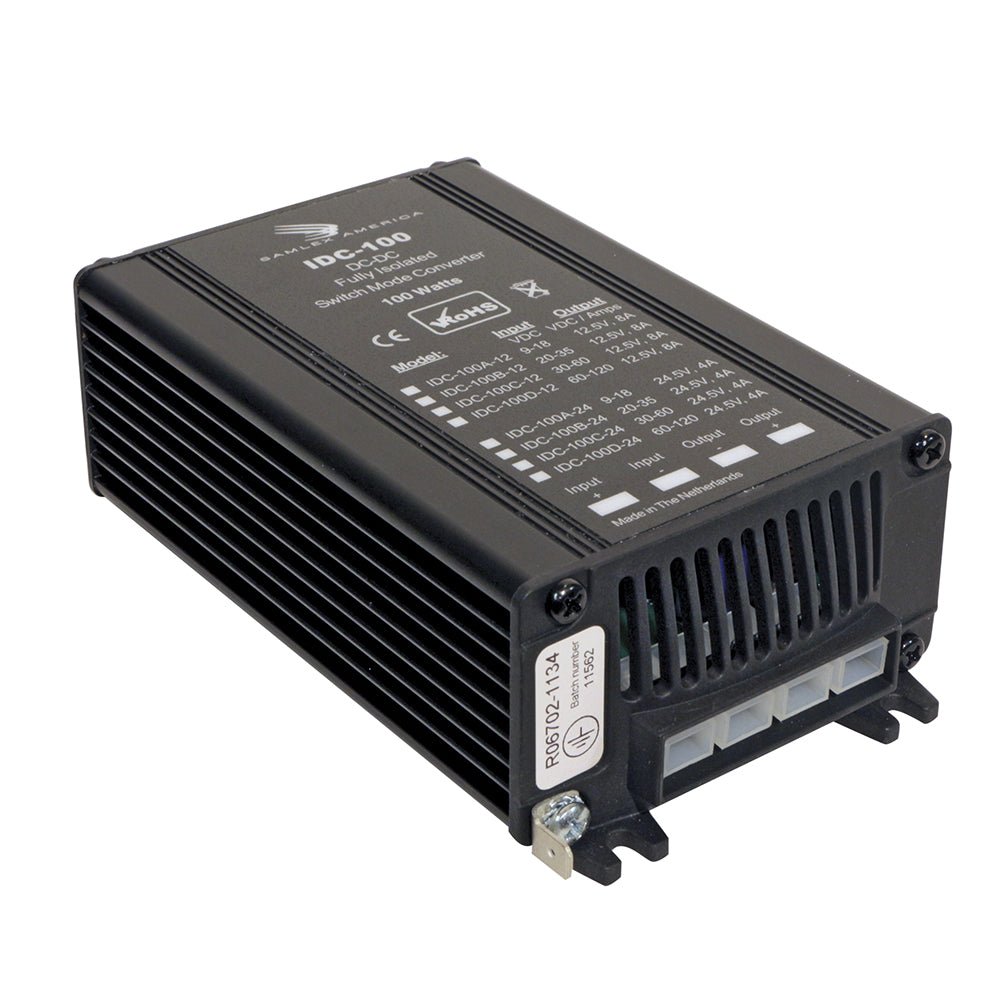

Samlex 100W Fully Isolated DC-DC Converter - 8A - 30-60V Input - 12.5V Output

Samlex 100W Fully Isolated DC-DC Converter - 8A - 30-60V Input - 12.5V Output

67253

$190.97 USD
$190.97 USD
Sale Sold out
Shipping

Low stock: 1 left
  • 30-Day Returns
  • Secure Checkout
  • Free Shipping — Contiguous U.S.

Shipping & Delivery

Free standard shipping is available on all orders shipping within the Contiguous United States, with no minimum order. Alaska and Hawaii are excluded from free shipping. Orders are typically processed within 1–2 business days. See our Shipping Policy for complete terms.

Returns & Refunds

Eligible items may be returned within 30 days of delivery. Items must be new, unused, uninstalled, and in original packaging. An RMA is required.

Installment options at checkout are provided by Shop Pay and its partners and are subject to eligibility. Options depend on your purchase amount and may require a credit check by the financing partner. Terms, rates, and eligibility are determined by the financing partner. For details, see the Shop Pay Installments terms during checkout.

100W Fully Isolated DC-DC Converter - 8A - 30-60V Input - 12.5V Output

IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100C-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 8 Amps (at 60 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-100C-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).

Features:

  • Fully Isolated
  • Short Circuit Protected
  • Current Limited
  • 2 Year Warranty
  • CE Approved

Specifications:

  • Input: 30-60 VDC
  • Output: 12.5 VDC
  • Amps: 8 Amps
  • Weight: 1.2 (lbs)
  • Weight: 0.54 (kg)
  • Dimensions: 6 x 3.5 x 1.9 (in)
  • Dimensions: 15.2 x 8.9 x 4.8 (cm)
  • Safety: CE
  • Warranty: 2 Year Limited

Applications:

  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 12 Volt lighting systems
  • AM/FM sound systems
