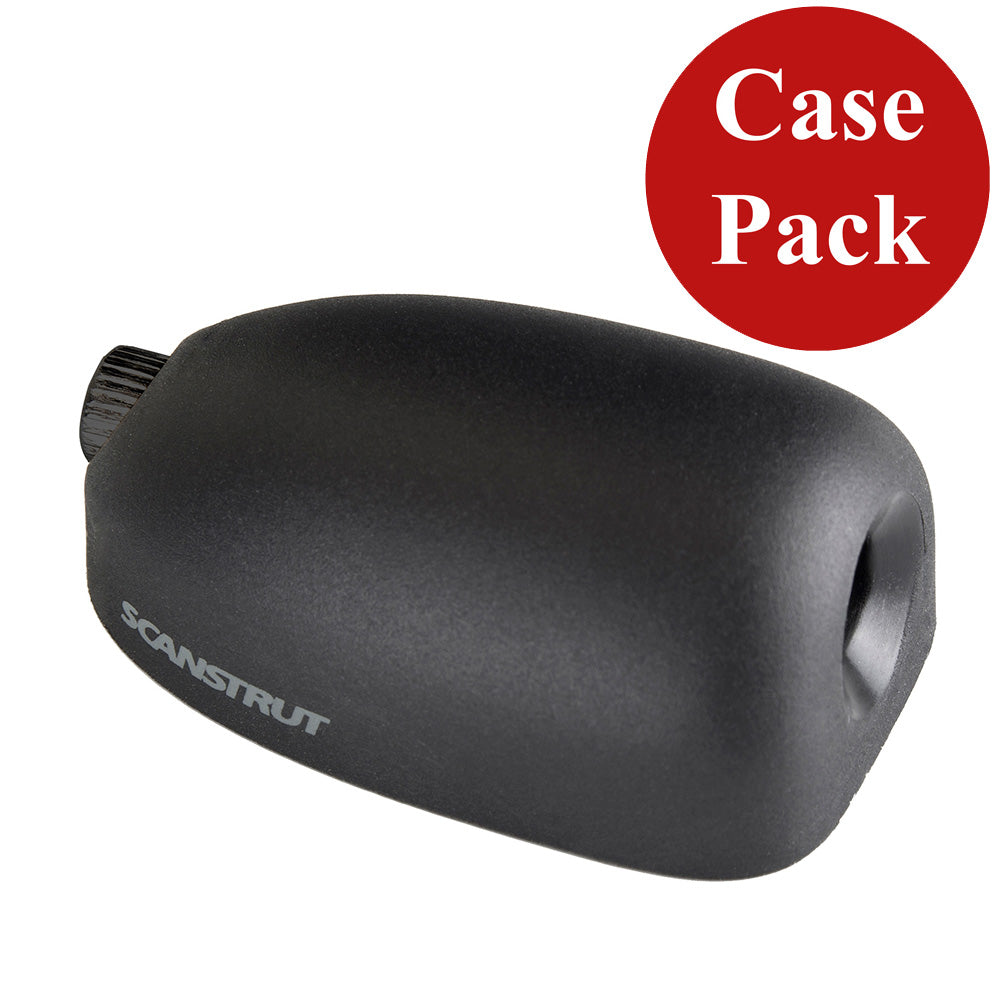

Scanstrut DS-H6-BLK-5 Horizontal Cable Seal, Black, 5-Pack

DS-H6-BLK Horizontal Cable Seal - Black *5-Pack

This horizontal cable seal from Scanstrut provides the ideal solution to waterproof cable routing and is perfect for installing solar panels, light bars, antennas, and navigation light cables. A tapered gland forms a watertight seal around the cable and a closed-cell foam gasket between the housing and the deck ensures a 100% watertight fitting.

Features:

• Watertight installation - 100% waterproof with an IPX68 rating
• Easy and reliable installation - each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
• No Need to Remove Cable Connectors - split-seal option does not require connector removal during installation.
• The low-profile construction is impact resistant and provides extra protection from water.

Technical Specifications:

• Fits cable size (diameter) - .08" to .24" (2 - 6 mm)
• Height - .79" (20 mm)
• Width - 1.12" (28.5 mm)
• Color - Black
• Orientation - Horizontal
• Material - Stainless Steel

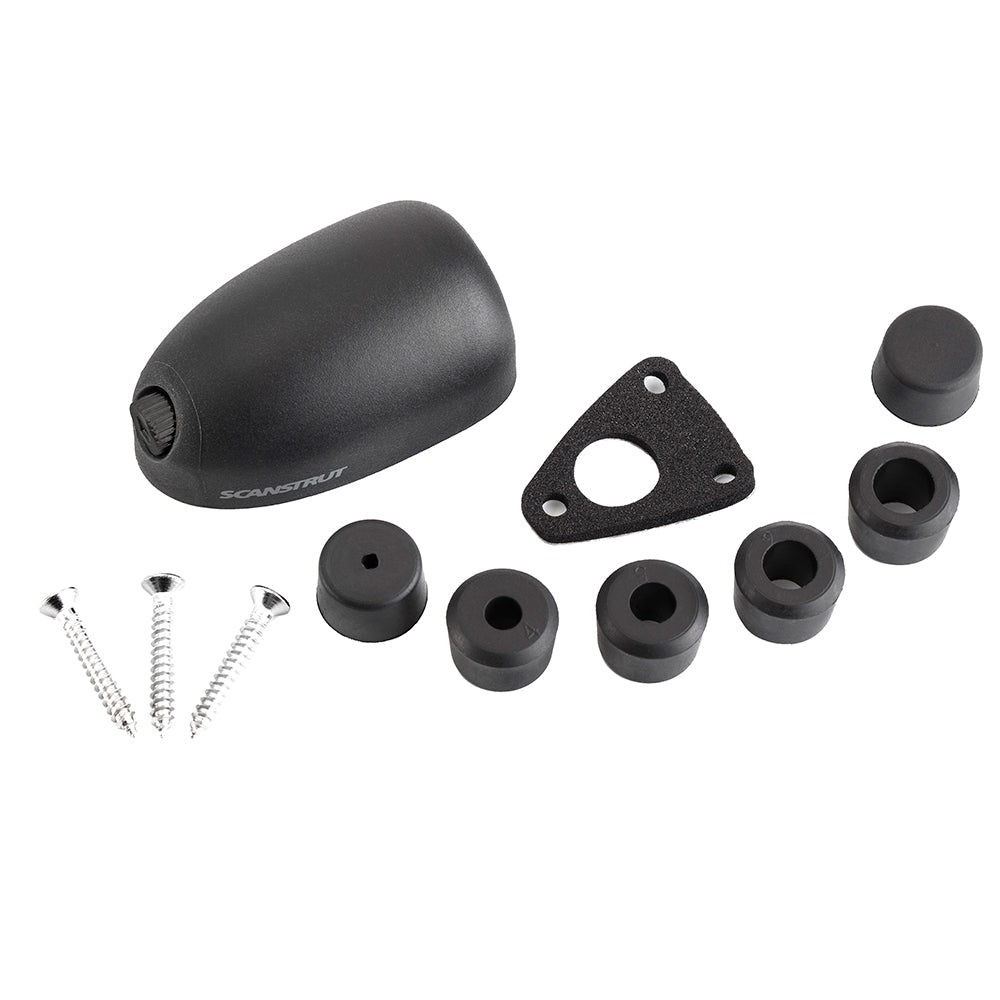

In the Box:

• Cable seal
• Mounting hardware
• Installation manual

*Sold as a Five (5) Pack

The Scanstrut DS-H6-BLK-5 Horizontal Cable Seal provides a dependable way to route cables through decks and surfaces while helping protect the installation from water intrusion. Designed for solar panels, light bars, antennas, and navigation light cables, this black horizontal cable gland accommodates cable diameters from 0.08 to 0.24 inches. Its low-profile design is suited to marine and outdoor installations where a clean, compact cable entry is important.

Each cable seal uses a tapered gland to form a watertight seal around the cable, while the closed-cell foam gasket creates a watertight seal between the housing and the deck. The split-seal option allows installation without removing cable connectors, helping simplify retrofit and replacement work. Pre-drilled and blank inner seals are included with each unit, providing flexibility for different cable-routing needs. The impact-resistant construction adds protection while maintaining a streamlined horizontal profile.

Key Features:

• Watertight cable routing: Designed for waterproof cable installations with an IPX68 rating.
• Connector-friendly installation: The split-seal option allows cables to be installed without removing connectors.
• Flexible seal configuration: Includes both pre-drilled and blank inner seals for installation convenience.
• Low-profile protection: Compact, impact-resistant construction helps protect routed cables from water exposure.
• Marine and outdoor applications: Suitable for solar panels, light bars, antennas, and navigation light cables.

Product Details:

• Brand: Scanstrut
• Part Number: DS-H6-BLK-5
• Product Type: Horizontal cable seal
• Pack Quantity: Five cable seals
• Fits Cable Diameter: 0.08 to 0.24 inches
• Height: 0.79 inches
• Width: 1.12 inches
• Color: Black
• Orientation: Horizontal
• Material: Stainless steel
• Included: Cable seals, mounting hardware, and installation manual

Choose the Scanstrut DS-H6-BLK-5 for a compact, connector-friendly solution to horizontal cable routing in marine and outdoor installations.
