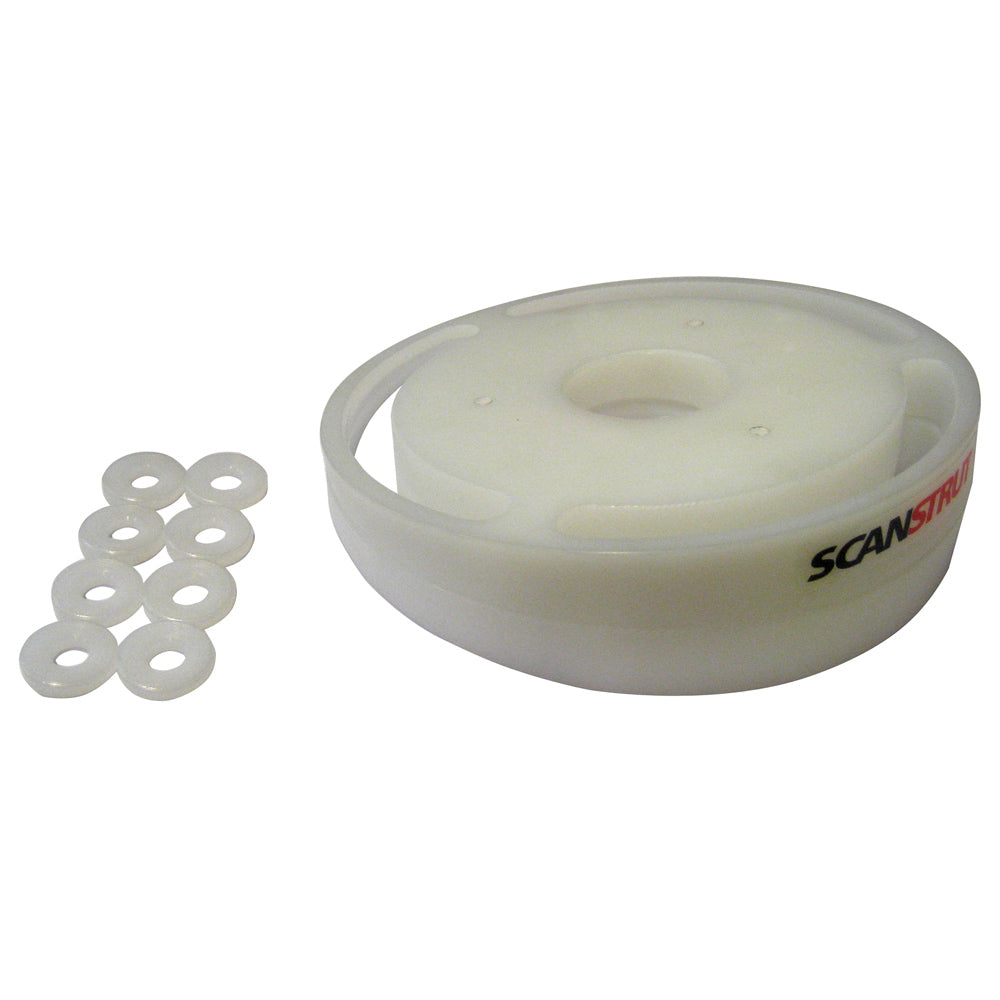

Scanstrut SC50 Adjustable Wedge for Satcom Mounts

SC50 Adjustable Wedge for Satcom Mounts

Designed to work with Scanstrut satcom mounts, you can quickly and easily provide a level mounting surface on any boat.

Satcom antennas require a horizontal mounting surface to function correctly. Finding this on any powerboat is often difficult. This satcom wedge, eradicates this problem by providing a level mounting surface on slopes from 0 to 12.

Compatible with:

• SC35, SC45, SC45R and SC65 satcom mount

Features:

• Ingenious yet simple simply counter-rotate the angled discs until the top surface is horizontal
• A channel system inside the discs allows un-restricted positioning of the antenna mounting bolts
• 4 pairs of 6 angled washers provide a level fastening surface for the antenna mounting bolts
• Watertight base seals fitted

Technical Specifications:

• Material - Marine grade polymer

In the Box:

• Counter-rotating angled discs 0 to 12 x 2
• 6 angled washers x 4
• Mount seal
• Instruction manual

*Sold as an Individual

Scanstrut SC50 Adjustable Wedge for Satcom Mounts provides a practical way to create a level mounting surface for compatible satcom antennas on boats with angled or sloped mounting areas. Designed for use with Scanstrut satcom mounts, this adjustable wedge helps position the antenna mounting surface horizontally, supporting proper installation on powerboats where a naturally level location can be difficult to find.

The SC50 uses counter-rotating angled discs that can be adjusted quickly and easily. Simply rotate the discs against each other until the upper surface is horizontal, allowing the satcom mount to be installed on slopes from 0 to 12. An internal channel system allows unrestricted positioning of the antenna mounting bolts, giving installers greater flexibility when aligning the mount. The wedge is compatible with Scanstrut SC35, SC45, SC45R, and SC65 satcom mounts.

Key Features:

• Adjustable leveling design: Counter-rotating angled discs create a horizontal mounting surface on sloped boat surfaces.
• Flexible bolt positioning: Internal channels allow unrestricted positioning of the antenna mounting bolts.
• Angled fastening washers: Four sets of six angled washers provide a level fastening surface for the antenna mounting bolts.
• Watertight base seals: Included seals help complete the satcom mount installation at the base.
• Marine-grade construction: Made from marine-grade polymer for use with compatible marine satcom mounting systems.

Product Details:

• Brand: Scanstrut
• Model: SC50
• Product type: Adjustable wedge for satcom mounts
• Material: Marine-grade polymer
• Adjustable range: 0 to 12
• Compatible mounts: Scanstrut SC35, SC45, SC45R, and SC65
• Included: Two counter-rotating angled discs, four sets of six angled washers, mount seal, and instruction manual
• Quantity: Sold individually

Choose the Scanstrut SC50 when your boat requires a level surface for installing a compatible satcom mount. Its adjustable design and included installation components provide a straightforward solution for angled mounting locations.

SEO Meta Description:
Install a level satcom antenna on sloped boat surfaces with the Scanstrut SC50 adjustable wedge, compatible with SC35, SC45, SC45R, and SC65 mounts.

Features:

• Counter-rotating angled discs adjust to create a horizontal mounting surface on slopes from 0 to 12.

• Internal channel system allows unrestricted positioning of satcom antenna mounting bolts.

• Four sets of six angled washers provide a level fastening surface for the antenna mounting bolts.

• Watertight base seal is included for the satcom mount installation.

• Marine-grade polymer construction is designed for compatible marine mounting systems.

• Compatible with Scanstrut SC35, SC45, SC45R, and SC65 satcom mounts.
