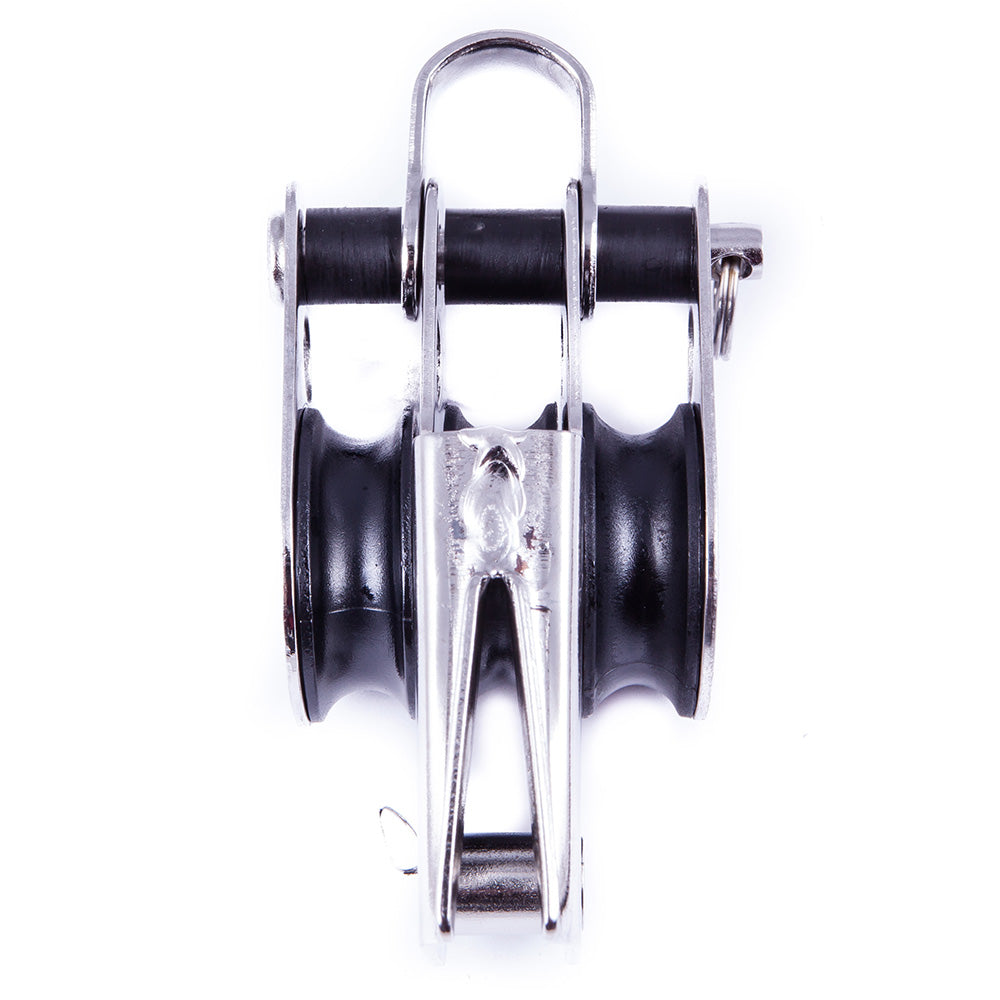

SeaSure 25mm Treble Block with V-Jam, Part 00.35CRD

25mm Treble Block with V-Jam

The 25mm plain bearing block range is one of SeaSure's oldest and best-selling ranges. The range uses marine-grade stainless steel side plates and rivets with an arnite (plastic) sheave, which is incredibly hard-wearing and light.

Features:

• This range could be used to create purchasing systems for lifting, garage door mechanisms, storage solutions, etc.
• The 00.35 can be used to create a 6:1 purchase system to aid in lifting heavier objects and decrease the load on the rope. The V jammer can be used to cleat the rope at any point during lifting or tension

Specifications:

• Max Rope: 8mm
• Breaking Load: 1250kg

SeaSure 25mm Treble Block with V-Jam is a compact, lightweight marine pulley block designed for lifting, tensioning, and purchase-system applications. Part 00.35CRD combines marine-grade stainless steel side plates and rivets with a hard-wearing arnite plastic sheave, delivering a practical solution for routing and managing rope in marine, storage, garage door, and general lifting mechanisms.

As part of SeaSure’s established 25mm plain bearing block range, this treble block is designed to support purchase systems that make lifting heavier objects more manageable by reducing the load carried by the rope. The integrated V-jammer helps secure the rope at any point during lifting or tensioning, making it useful when controlled positioning and temporary rope holding are required.

Key Features:

• Treble block configuration: Supports purchase-system setups for lifting and tensioning applications.
• Integrated V-jammer: Cleats compatible rope at any point during lifting or tensioning.
• Marine-grade construction: Stainless steel side plates and rivets provide the specified hardware configuration for marine and utility applications.
• Arnite plastic sheave: Provides a lightweight, hard-wearing sheave for practical rope-routing use.
• 6:1 purchase capability: The 00.35 configuration can be used to create a 6:1 purchase system to aid in lifting heavier objects and decrease the load on the rope.

Product Details:

• Brand: SeaSure
• Part number: 00.35CRD
• Product type: 25mm treble block with V-jam
• Maximum rope size: 5/16 inch
• Breaking load: 2,756 pounds
• Materials: Marine-grade stainless steel side plates and rivets with an arnite plastic sheave
• Intended uses: Purchase systems, lifting mechanisms, garage door mechanisms, and storage solutions

Choose the SeaSure 00.35CRD when you need a compact 25mm treble block with an integrated V-jammer for controlled rope handling in lifting and tensioning setups.
