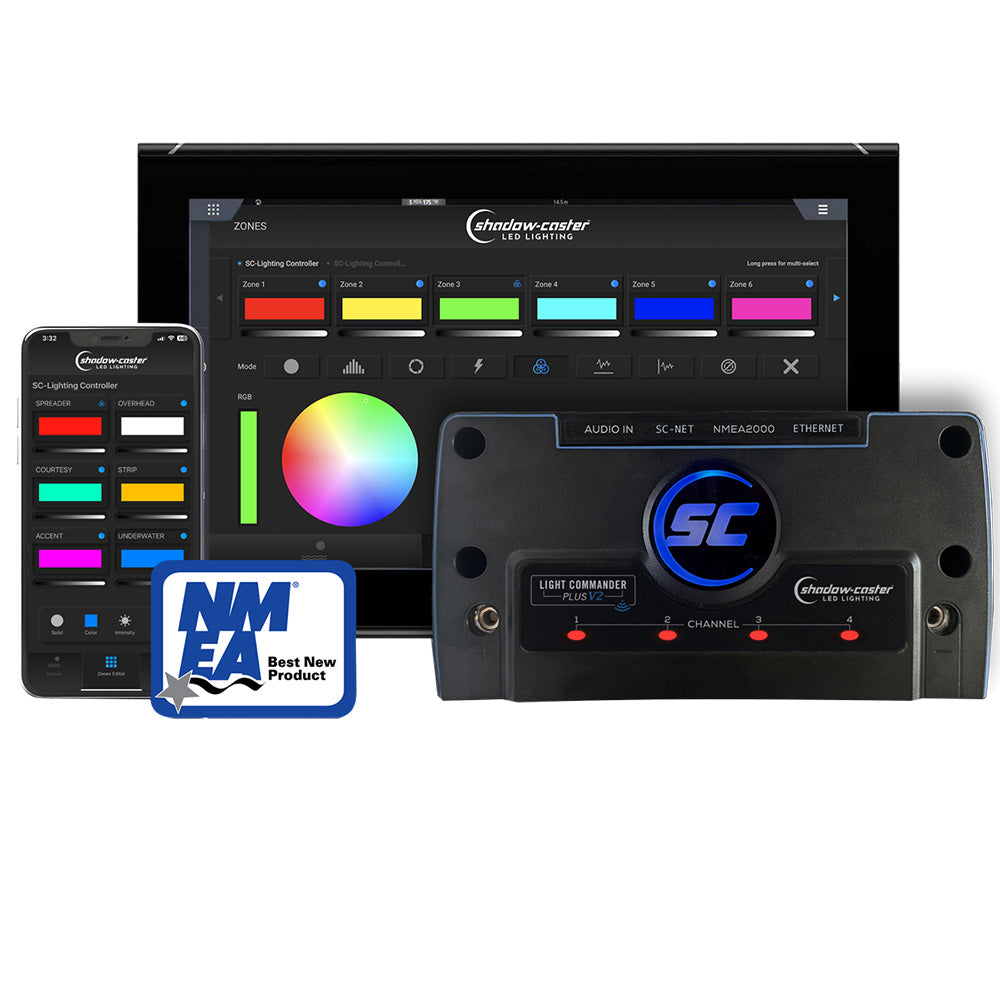

Light Commander Version 2 - 6-Zone Lighting Controller with Bluetooth/Wi-Fi, NMEA 2000 & HTML Ethernet Connectivity
Discover the SHADOW-CASTER® Light Commander NMEA 2000, a pioneering solution in LED lighting control for boats. This first-of-its-kind product is crafted in compliance with the latest NMEA 2000 lighting control standards, ensuring enhanced lighting control, seamless marine system integration, and improved interoperability.
Control up to 6 zones of lighting per module, including 4 zones of RGB or RGBW lights, with ease and precision. Explore, set, and store a variety of lighting scenes – from color change, fade, rotation, and strobe, through to music sync effects, offering versatility and customization to illuminate your boat like never before.
Encased in durable IP67 housing with Deutsch-style IP67 connections, the Light Commander NMEA 2000 ensures reliability and performance in the marine environment. The backlit logo signifies the quality and innovation that SHADOW-CASTER® is renowned for.
Elevate your marine lighting experience with the Light Commander NMEA 2000 – where technology meets functionality and style.
Features:
NMEA 2000 Backbone or MFD Network Port Connectivity
Global control for all lighting
Up to 6 separate zones of lighting control – expandable to 12 or 18 by connecting additional SCM-LC-N2K modules
6 “Instant ON” switch inputs for enabling lights without MFD control
Supports RGB and RGBW lighting
Optional wireless connectivity for control from a mobile device (SCM-LC-PLUS-V2)
IP67 Water-resistant housing with waterproof connections
Deutsch style IP67 rated connections, for clean OEM installations
All in one design, no need for a separate MFD communication bridge
“Digitally fused” over current protection circuits, 15amps/channel (X4)
Backlit logo and zone indicator LEDs to indicate functions and operation
Built-in 3.5mm female audio port and microphone for music sync input
Multi-zone Lighting Controller for NMEA 2000 & Ethernet connectivity with integrated HTML interface
Specifications:
IP67 rated enclosure
Power: Supports over 600 watts of RGB lighting and virtually limitless Shadow-NET® connected modules
15 amps per RGB(W) zone, 60 amps max
10 to 30V input range
Direct 3.5mm female audio input for music synchronization
Music sync created by onboard DSP (Digital Signal Processing)
Shadow-NET® bus allows system expandability
Digital power protection set at 15amps/channel
Built-in switch inputs for instant lighting for each zone
24-bit color support and gamma correction for universal color support
Enclosure: 8.9” (226mm ) x 4.75” (120mm) x 1.8” (46mm)
