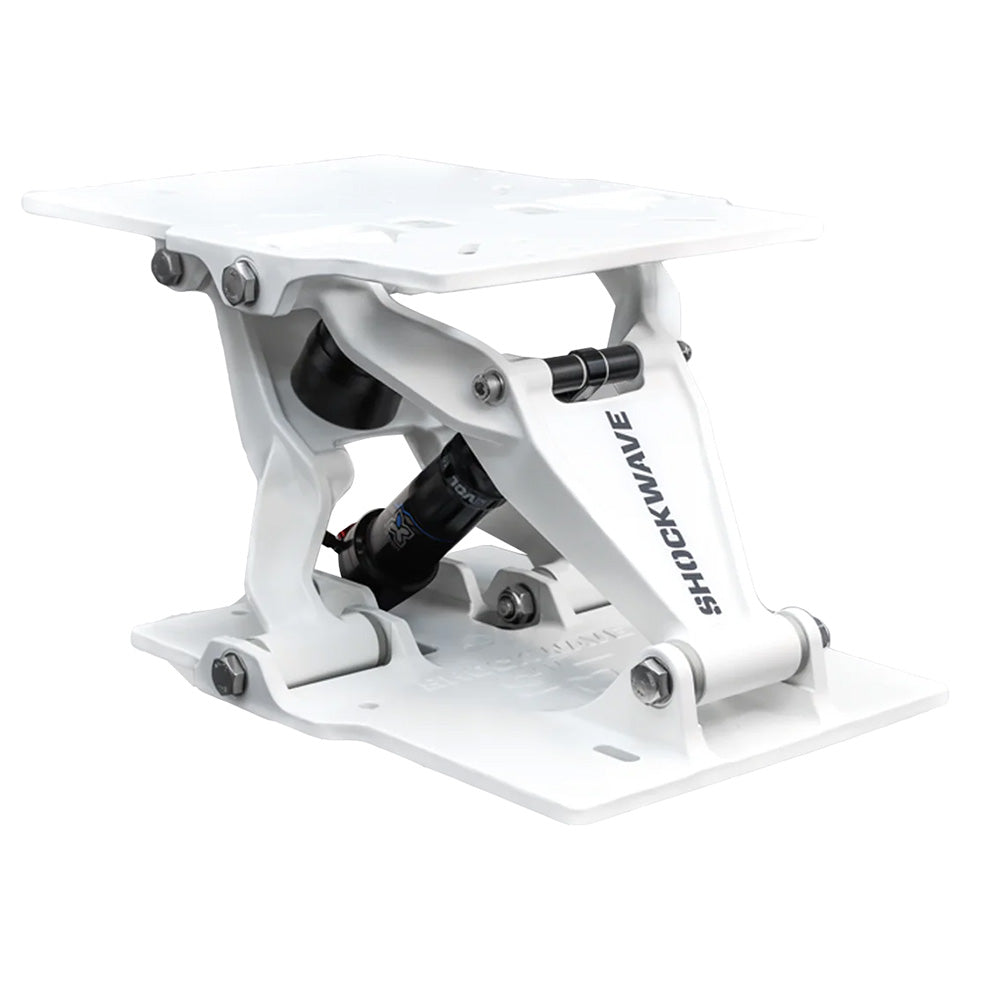

S5-LW Suspension Base - White

The Shockwave S5-LW lightweight marine suspension base is our entry-level recreational suspension option. Designed to mitigate the shock of wave impact in light conditions on freshwater lakes or cabin boats on the ocean.

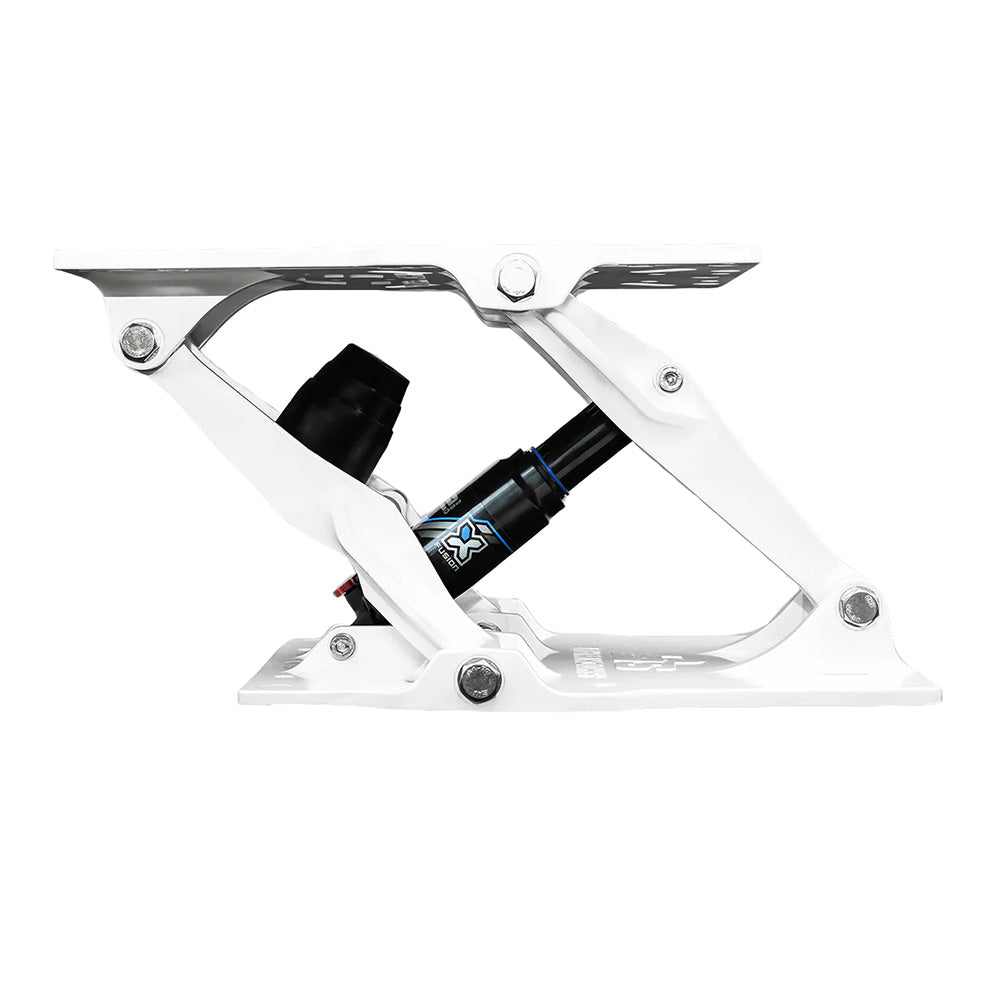

Made from anodized A360 cast aluminum that has been powder-coated and fitted with stainless steel hardware, the S5-LW suspension base utilizes a three-link forward action suspension design.

Fitted with an X-Fusion O2 PRO R air-sprung shock with adjustable rebound, suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impact. A shock pump with a pressure gauge is included with your purchase at no extra cost.

Features:

• Designed and manufactured in Canada
• Custom-tuned and valved marine X-Fusion O2 R, air spring, and shock with adjustable rebound
• Surge protection: Suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impacts
• 3-Link Forward Action
• Anodized A360 Cast Aluminum, 304 SS Hardware, Powder Coated
• Minimal parts count and simple construction
• Easy to mount and adapt to the current seating

Vessel Application:

The S5-LW suspension base is most often found on fishing boats, coastal cruisers, ski/wake boats, guide boats, fisheries boats, whale watching boats, crew boats and yacht tenders. Due to its universal design, the S5-LW can be fitted to almost any boat and any seat.

The Shockwave S5-LW Suspension Base in white offers a lightweight, durable solution for marine shock absorption tailored to recreational and workboats. Designed to reduce the impact of waves on your vessel, this suspension base is ideal for fishing boats, coastal cruisers, ski/wake boats, guide boats, and yacht tenders. Its universal design allows easy installation on a variety of boat models and seating arrangements, making it a versatile upgrade for enhancing ride comfort and stability during marine adventures.
Constructed from anodized A360 cast aluminum with powder coating and stainless steel hardware, the S5-LW combines corrosion resistance with robust strength. Its three-link forward action suspension system, paired with an adjustable X-Fusion O2 PRO R air-sprung shock, provides 4 inches of vertical travel and 1.5 inches forward, effectively mitigating deceleration caused by wave impacts. The included shock pump with pressure gauge ensures precise tuning for optimal performance. This suspension base is engineered for simplicity and ease of mounting, with minimal parts and straightforward installation, making it accessible for boat owners seeking a reliable upgrade to improve comfort and handling.
Whether used on fishing, recreational, or guide boats, the Shockwave S5-LW suspension base delivers enhanced shock absorption, reducing fatigue for operators and passengers while protecting onboard equipment. Its Canadian design and manufacturing reflect high-quality craftsmanship aimed at delivering durable, marine-grade performance. Invest in the Shockwave S5-LW Suspension Base to upgrade your vessel’s ride quality with a proven, adaptable suspension system that stands up to the rigors of marine environments.

Features:

• Designed and manufactured in Canada for quality assurance

• Custom-tuned marine X-Fusion O2 PRO R air shock with adjustable rebound for personalized comfort

• 4-inch vertical and 1.5-inch forward suspension travel to mitigate wave impact deceleration

• Constructed from anodized A360 cast aluminum with stainless steel hardware for corrosion resistance

• Simple, minimal parts construction for easy installation and maintenance

• Universal fit suitable for various boat types and seating configurations
