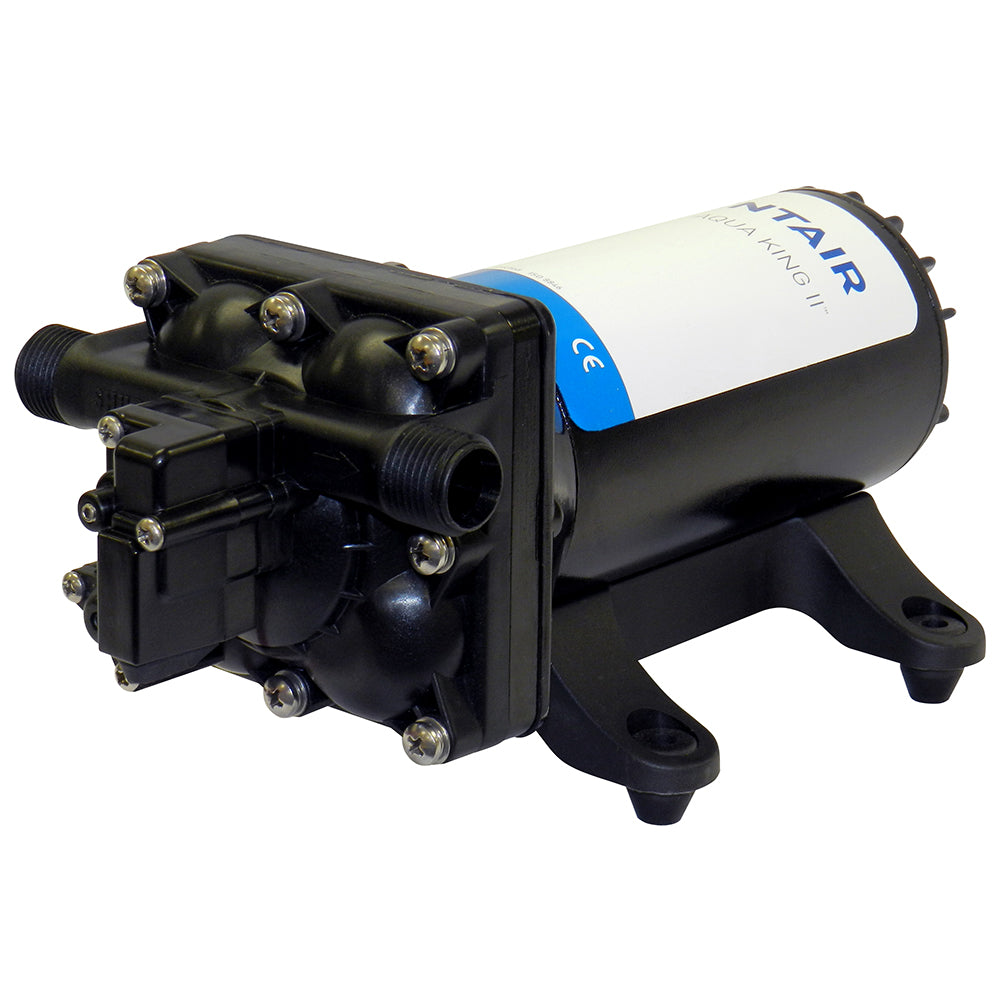

Shurflo by Pentair AQUA KING II Supreme 5.0 GPM 24VDC Fresh Water Pump with Strainer and Fittings

AQUA KING II Supreme 5.0 (24VDC) Fresh Water Pump w/Strainer Fittings

SHURFLOs AQUA KING II Fresh Water Pumps are designed for boats with multi-fixtures providing Just like home shower pressure, and can operate at lower flow conditions without cycling. A built in mechanical bypass function enables these pumps to vary the flow rate for any on demand condition, without the need for an accumulator. With heavy duty motors built to withstand the tough marine environment these motors feature an electro-coated seamless shell motor, O-ring sealed end bells, and complete sealed wire entries on the motor shell and pressure switch. The AQUA KING II Fresh Water Pumps can run dry without damage. Inlet strainer and hose barb fittings are included. (aftermarket models only). Ignition protected. Thermally protected. 3 Year Warranty

Features:

• Sealed Switch
• Sealed Motor
• Corrosion Resistant Electro
• Coated Motor
• Independent Chambers
• Built-in Check Valve
• Co-Molded Diaphragm
• Adjustable Switch By-Pass
• Self-Priming up to 6 Feet
• Dry Run Capability
• Thermally Protected
• Ignition Protected, CE

Specifications:

• 24 VDC
• 5.0 GPM [18.9 LPM]
• 7 Amps (Max.)
• 55 PSI [3.8 BAR]
• Intermittent Duty
• Multi-fixture Applications
• 1/2 NPS-M Inlet/Outlet

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

The Shurflo by Pentair AQUA KING II Supreme 5.0 GPM 24VDC Fresh Water Pump is designed to deliver reliable, high-pressure water flow for boat applications that demand home-like shower pressure and consistent performance. Built with durability in mind, this marine-grade pump features a heavy-duty electro-coated shell motor that withstands harsh environments, ensuring long-lasting operation. The integrated mechanical bypass allows the pump to vary flow rates on demand without cycling, providing a smooth, efficient water supply for multiple fixtures onboard. Whether running dry or operating under low flow conditions, the pump is engineered to handle these scenarios without damage, reducing maintenance concerns and downtime. The inclusion of an inlet strainer and hose barb fittings makes installation straightforward and secure, ideal for marine environments where reliability is critical.

Features:

• Sealed switch for enhanced protection against water ingress

• Sealed motor to prevent corrosion and moisture damage

• Corrosion-resistant electro coating on the motor shell

• Co-molded diaphragm for durability and performance

• Built-in check valve to prevent backflow

• Independent chambers for consistent operation

• Adjustable switch bypass for flow regulation

• Self-priming capability up to 6 feet to ease installation

• Dry run capability to prevent damage during low water conditions

• Thermally protected to prevent overheating

• Ignition protected and CE certified for safety and compliance
