SI-TEX MDA-2 Metadata Dual Channel AIS Receiver – Compact, Rugged Marine Marine AIS System with Rmax Technology

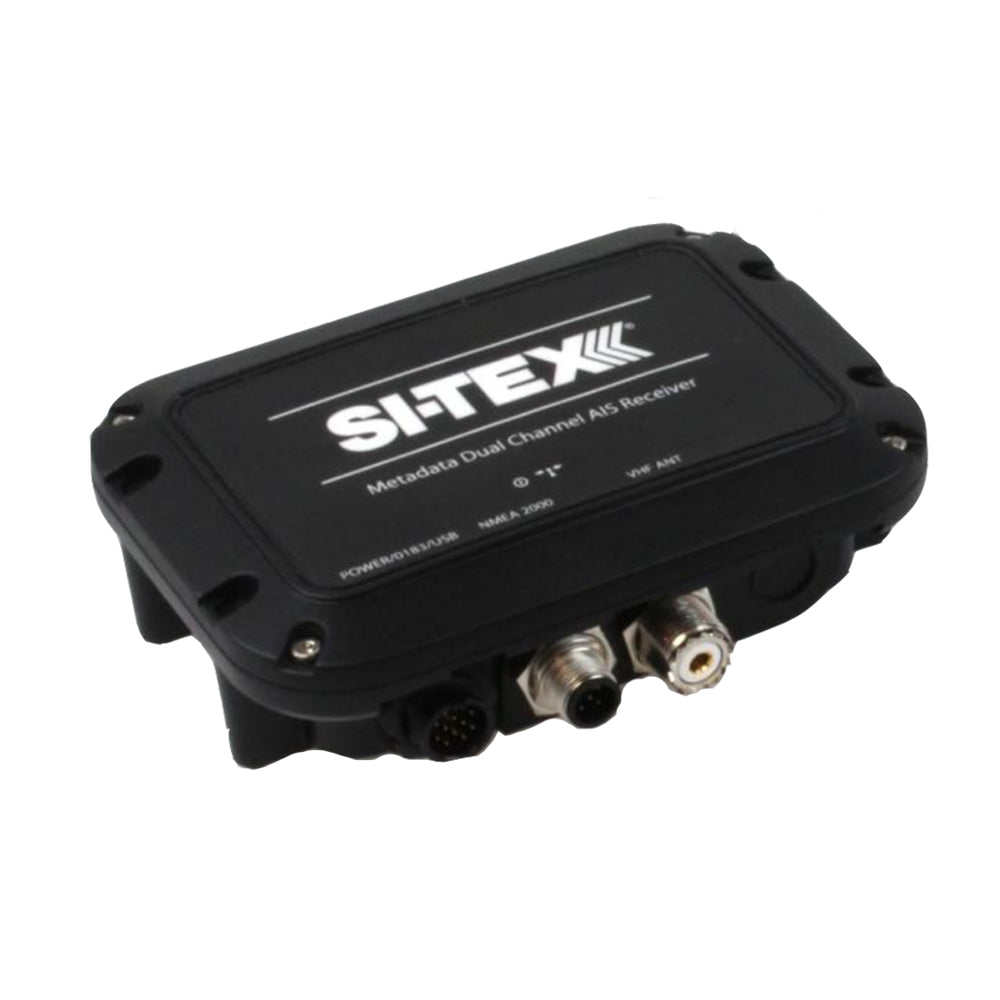

MDA-2 Metadata Dual Channel AIS Receiver

Utilizes a compact (5.5"X3.9"X1.9") module that is IPx7 Waterproof rated, for flexible location and rugged performance in any marine environment.

The new Metadata Dual Channel AIS Receiver module features the next generation Rmax AIS technology, with lightning-fast processing to maximize reception range and ensure that all incoming AIS messages are received and fully decoded in real time. This overcomes performance issues with yesterday's first generation AIS systems in real-world marine situations - and the advantages of Rmax technology will become even more important as the number of AIS-equipped vessels increases in the future. Designed for plug-and-play integration with chart plotters, radars, onboard PCs and other marine electronics, the Metadata Dual Channel AIS Receiver has built-in NMEA0183 and NMEA2000 interfaces, as well as a USB interface that can be used to power the device.

Specifications:
Power

• 12 to 24V DC

• Power consumption: 150mA @12VDC, <2W average

Data Interfaces

• USB

• NMEA2000

• IEC61162-1 (NMEA0183) output, 38400baud

• IEC61162-1 (NMEA0183) input, 4800baud

Supplied with

• 2m power and NMEA0183 data cable

• User manual and quick start guide

• Product CD

• Fixing screws

The SI-TEX MDA-2 Metadata Dual Channel AIS Receiver offers advanced marine navigation capabilities in a compact and durable design. Measuring just over 5.5 inches in length, 3.9 inches in width, and 1.9 inches in height, this IPx7 waterproof unit is built to withstand harsh marine environments while providing reliable AIS data reception. Its rugged construction ensures dependable performance on any vessel, from small boats to large ships. The MDA-2 features next-generation Rmax AIS technology, which delivers lightning-fast processing to maximize reception range and ensure real-time decoding of all incoming AIS messages. This technology significantly outperforms earlier AIS systems, especially as the number of AIS-equipped vessels increases, making it a future-proof solution for navigational safety and vessel tracking. Designed for seamless plug-and-play integration, the MDA-2 connects effortlessly with chart plotters, radars, onboard PCs, and other marine electronics via built-in NMEA0183, NMEA2000, and USB interfaces. The included USB port also supplies power to the device, simplifying installation and reducing clutter. Its versatile data interfaces support various onboard communication protocols, ensuring compatibility with most marine navigation systems. The MDA-2 comes with a 2-meter power and NMEA0183 data cable, a user manual, quick start guide, product CD, and fixing screws for easy setup. With its compact size, rugged construction, and cutting-edge AIS technology, the SI-TEX MDA-2 is an essential tool for enhancing situational awareness and safety on the water.

**Please note:** The manufacturer states that this product complies with PROP 65 regulations, indicating it has been designed to meet safety standards for chemical exposure and environmental health.

Features:

• Compact and rugged design with IPx7 waterproof rating for durable marine use

• Next-generation Rmax AIS technology for fast processing and extended reception range

• Real-time decoding of all incoming AIS messages for improved situational awareness

• Plug-and-play compatibility with chart plotters, radars, PCs, and marine electronics

• Multiple data interfaces including NMEA0183, NMEA2000, and USB for versatile connectivity

• USB port also supplies power, simplifying installation

• Includes 2-meter power and data cable, user manual, quick start guide, product CD, and fixing screws
