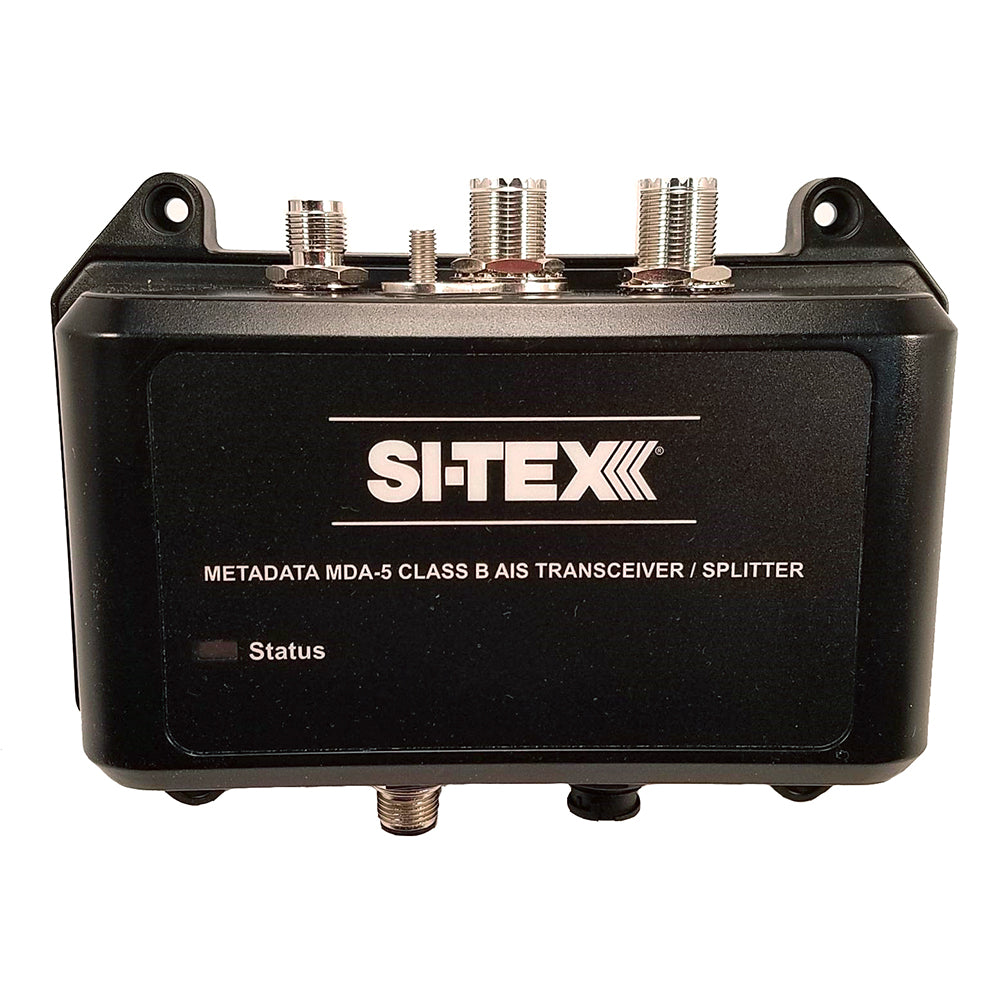

SI-TEX MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver with Built-In Antenna Splitter and Long Range Wi-Fi

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter Long Range Wi-Fi

Features:

• The MDA-5 is the world's most sophisticated fully certified 5-Watt SOTDMA Class B AIS Moble on the market
• 5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
• SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don"t have network priority.
• Intergrated zero loss VHF antenna splitter - no second antenna needed
• Built-In 802.11 b/g/n Long Range WIFI allows unit to send AIS and Position data to any WIFI connected devices
• NMEA-0183 data port, NMEA-2000 USB intelligent connectivity to all bridge systems
• Built-In GPS GLONASS satellite navigation receiver
• Water Proof certified to IPX7
• Dual Receivers decodes all DSC AIS messages, including MOB SART
• Ultra-power efficient
• IEC-62287-2, FCC and USCG certified
• 2 Year Warranty

Package Includes:

• Commercial Grade External GPS Antenna with Coax Cable
• Mounting hardware
• Power Data Interface cable
• VHF Radio Connection cable
• Product Information DVD, with ProAis2 Software for Programming Troubleshooting
• User Manual Quick Start Guide

Specifications:

• Transmitter Output Power: 5 Watts
• VHF Antenna Connector SO-239 UHF
• GPS Antenna Connector TNC
• Frequency Range: 156.025-162.025 Mhz
• Input Voltage: 9.6-31.2 VDC
• Current Draw: 220mA average power consumption
• Operating Temperature Range: -25C to +55xC
• Ingress Protection: IP67
• Dimensions (transceiver): 6.8" W x 5.0" H x 2.0" D
• Weight 0.8 lbs.

The SI-TEX MDA-5 is a high-performance, fully certified 5-Watt SOTDMA Class B AIS transceiver designed for professional marine use. Engineered to provide superior range and reliable vessel visibility, this transceiver ensures your vessel is easily detected in busy ports, congested harbors, and open waters. Its sophisticated technology includes a powerful 5-watt transmitter and SOTDMA network priority, allowing your vessel to transmit and be recognized consistently even amid high traffic conditions. The integrated zero-loss VHF antenna splitter eliminates the need for a second antenna, simplifying installation while maintaining optimal signal strength. Equipped with built-in GPS and GLONASS satellite navigation, the MDA-5 offers accurate positioning data, critical for navigation safety and AIS reporting.

Features:

• High Power Transmission: 5-watt output for extended range visibility across waterways

• SOTDMA Class B Technology: Ensures priority transmission in congested areas, maintaining reliable communication

• Integrated VHF Antenna Splitter: No additional antenna required, reducing installation complexity

• Long Range Wi-Fi: Built-in 802.11 b/g/n Wi-Fi enables seamless data sharing to connected devices

• Multiple Connectivity Options: NMEA-0183, NMEA-2000, USB for integration with bridge systems

• Advanced Navigation: Built-in GPS and GLONASS receivers for precise vessel positioning

• Durability and Protection: IPX7 waterproof rating withstands harsh marine environments

• Decodes all DSC and AIS messages: Including MOB and SART for enhanced safety

• Energy Efficient: Designed for low power consumption, ideal for extended use

• Certified for Safety and Compliance: IEC-62287-2, FCC, and USCG approval

• Comprehensive Package: Includes external GPS antenna, mounting hardware, cables, and software for easy setup and troubleshooting
