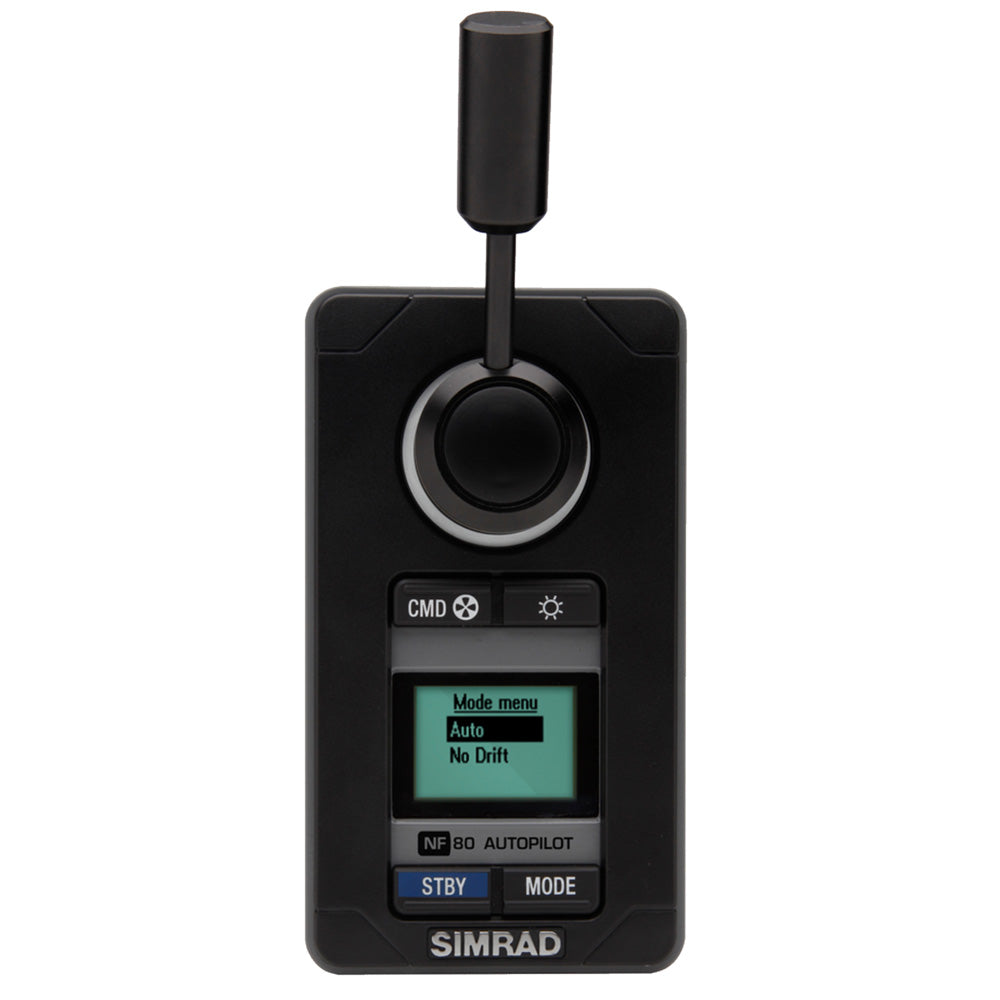

NF80 Non Follow Up Remote
The NF80 works with your Simrad autopilot system, adding a dedicated lever for heading adjustments, course changes, or hand steering. Non Follow Up control means the rudder turns while the lever is held to port or starboard, and remains at its current angle when the lever is released.
Dedicated Autopilot Control
Our steering remotes offer intuitive controls and a 1.7-inch display that can be used to make course, heading rudder angle, or autopilot mode changes from anywhere onboard. Adding a remote to your system can provide dedicated steering controls for your fully integrated autopilot system, complementing the touchscreen controls on your multifunction display. Remotes can also enable autopilot control from multiple stations: perfect for fly-bridges and other dual-helm setups.
Direct Rudder Control with Non Follow Up Steering
Your Simrad autopilot not only keeps you on the course but lets you hand-steer from any autopilot station on board. The NF80 offers Non Follow Up steering, which puts you in direct control of your boats rudder. Move the spring-loaded steering lever to port or starboard, and the rudder will begin to turn in the same direction. The rudder will continue to turn until the lever is released, then hold its current angle until a new angle is set.
Easy Installation
This wired remote can be mounted almost anywhere. A simple design allows flush-mount installation using the included accessories, or external mounting to a desktop or bulkhead via an optional mounting kit. The remote connects to your Simrad autopilot system via a single NMEA 2000 cable into your existing network, offering plug-and-play installation with no complex wiring required.
Features:
- Non Follow Up steering (rudder turns while the lever is held to port or starboard)
- Rudder stops at its current position when the lever is released
- Integrated 1.7-inch display enables remote autopilot control
- Easy desktop/bulkhead or flush-mount installation
- Simple plug-and-play NMEA 2000 connectivity
Specifications:
- Compass Safe: 0,4m (15,75")
- Weight: 0,5kg (1,1lbs)
- Power Consumption Max: 110mA
- Viewing Angles: 12 o'clock
- Supply Voltage: 12-16V via CAN
- Display Resolution: 128 x 64
- NMEA 2000 Connectivity: 1x CAN Micro-C port, 1 LEN
- Warranty Period: 2 years
- Operating Temperature Range: -25C to +55C (-13F to +131F)
- Storage Temperature Range: -30C to +70C (-22F to +158F)
- Dimensions W x H x D: 80 x 144 x 40mm (3,15 x 5,67 x 1,55")
- Languages: English
- Mounting Type: Flush, Bulkhead
- Waterproof Rating: IPx6
- Interface: Keypad and lever
- Steering Modes: Non Follow Up (NFU), Auto, NoDrift, Nav
- Backlight Color: White
Simrad NF80 Non Follow Up Autopilot Remote gives boat operators dedicated control over heading adjustments, course changes, rudder angle, and autopilot modes from an additional station onboard. Designed for Simrad autopilot systems, the NF80 is well suited for flybridges, dual-helm layouts, and other installations where convenient remote steering control complements a multifunction display.
The spring-loaded steering lever provides direct Non Follow Up (NFU) rudder control. Move the lever to port or starboard to turn the rudder in the selected direction; when the lever is released, the rudder holds its current angle until a new command is made. The integrated display also supports remote control of compatible autopilot functions, including Auto, NoDrift, and Nav steering modes.
Installation is designed to be straightforward with flush-mount or bulkhead mounting options. The wired remote connects to an existing Simrad NMEA 2000 network through a single CAN Micro-C connection, helping provide a clean, plug-and-play setup without complex wiring. Its white-backlit display, keypad, and lever interface are designed for clear operation from an autopilot station.
Key Features:
-
Non Follow Up steering: Turns the rudder while the lever is held to port or starboard and stops at the current angle when released.
-
Remote autopilot control: Use the integrated display and keypad to make heading, course, rudder angle, and autopilot mode changes.
-
Multiple mounting options: Supports flush or bulkhead installation for flexible placement onboard.
-
NMEA 2000 connectivity: Connects to a compatible Simrad autopilot system through a single CAN Micro-C port.
-
Multiple steering modes: Supports Non Follow Up, Auto, NoDrift, and Nav modes.
Product Details:
-
Brand: Simrad
-
Model: NF80
-
Part Number: 000-10185-001
-
Display: 1.7-inch display with 128 x 64 resolution and white backlight
-
Interface: Keypad and steering lever
-
Connectivity: 1 CAN Micro-C port, 1 LEN
-
Supply Voltage: 12–16 volts via CAN
-
Maximum Power Consumption: 110 mA
-
Waterproof Rating: IPX6
-
Mounting: Flush or bulkhead
-
Operating Temperature: -13°F to 131°F
-
Storage Temperature: -22°F to 158°F
-
Weight: 1.1 pounds
-
Warranty: 2 years
Add dedicated Non Follow Up steering and remote autopilot operation to your compatible Simrad system with the NF80, a practical control solution for multiple helm stations and flexible onboard handling.
