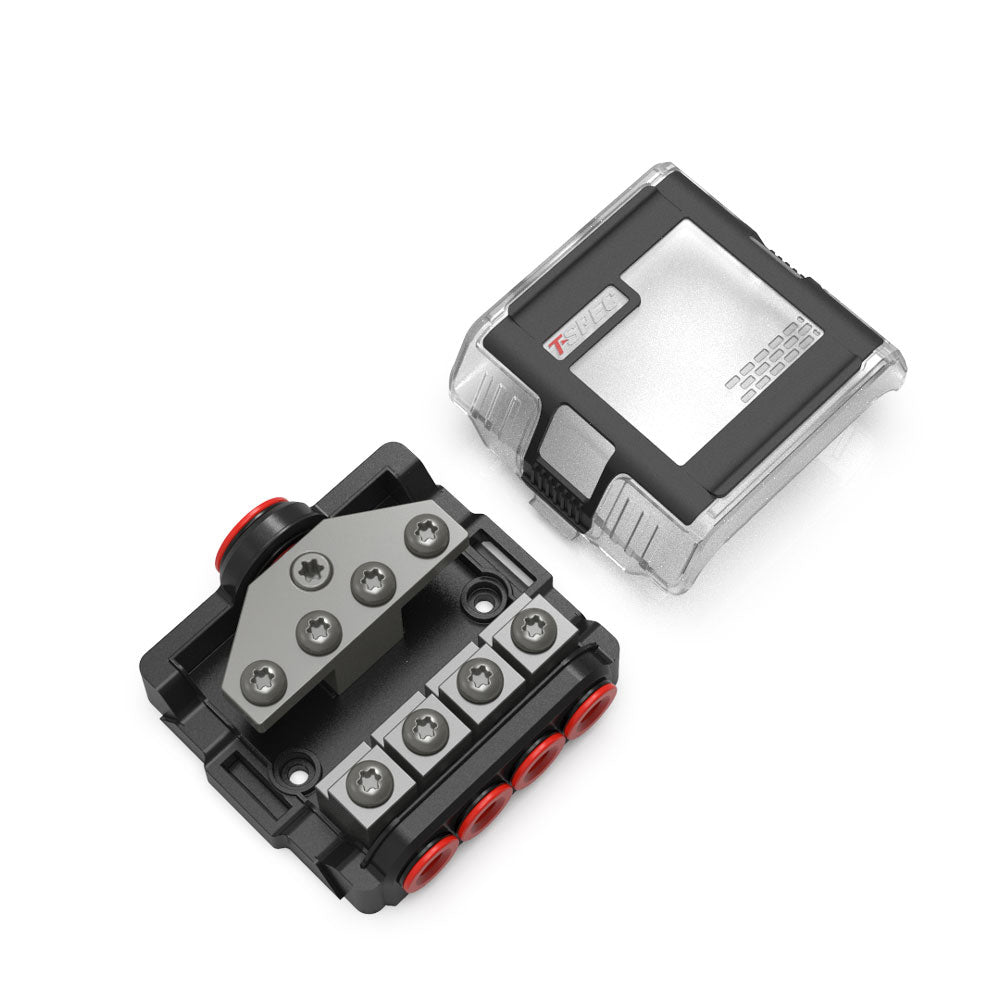

T-Spec VFDB4 4-Position Mini-ANL Fuse Distribution Block with Cover

VFDB4 MANL 4 Position Distribution Block with Cover

This compact distribution block from T-Spec will handle the high-current power distribution for your single source to four (4) smaller gauge power wires, ensuring that your wiring's connected securely, looking neat, and safely fused. T-spec's Universal Screw Design for securing the wires and mini ANL fuses to the block works with a variety of tools. Solid black nickel-plated brass construction ensures reliable power flow, and an impact-resistant polycarbonate cover keeps the fuses and connections clean.

Fuses sold separately.

Features:

• One (1) 1/0 to 4 AWG into four (4) 4/8 AWG out
• TPEwrapped soft touch
• Dual sizes gasket set
• Water-resistant
• Solid brass construction
• Black nickel finish
• T20 Torx screws
• Gate Lock technology

In the Box:

• One distribution block for mini-ANL fuses with one (1) 4 or 1/0 AWG set-screw input and four (4) 4/8 AWG set-screw outputs
• Plastic cover (attached)
• 3 Rubber grommets and sleeves (pre-installed)

*Sold as an Individual

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

T-Spec VFDB4 4-Position Mini-ANL Fuse Distribution Block with Cover

Distribute high-current power neatly and securely with the T-Spec VFDB4 distribution block. Designed to connect one larger power cable to four smaller-gauge power wires, this compact four-position mini-ANL fuse distribution block is well suited for automotive, car audio, and other 12-volt electrical wiring applications. Its set-screw design helps secure the cable connections, while the attached impact-resistant polycarbonate cover helps keep the fuses and terminals protected from dirt and contact.

Constructed from solid brass with a black nickel finish, the VFDB4 supports reliable electrical power distribution and a clean installation appearance. T-Spec’s universal screw design accommodates a variety of tools, and the T20 Torx screws provide the appropriate fastening interface for installation. The included rubber grommets and sleeves support cable routing at the block’s connection points. Mini-ANL fuses are required for fused operation and are sold separately.

Key Features:

• Four-position distribution: Connects one 1/0 to 4 AWG input to four 4/8 AWG outputs for organized power distribution.
• Mini-ANL fuse support: Provides four fuse positions for distributing power through separately purchased mini-ANL fuses.
• Solid brass construction: Supports dependable current flow and long-term installation use.
• Protective cover: Attached impact-resistant polycarbonate cover helps keep fuses and connections clean.
• Installation-focused design: Includes universal set screws, T20 Torx screws, Gate Lock technology, and dual-size gaskets.
• Water-resistant construction: Helps suit installations where resistance to moisture is important.

Product Details:

• Brand: T-Spec
• Model: VFDB4
• Product type: Four-position mini-ANL fuse distribution block with cover
• Input: One 1/0 to 4 AWG set-screw input
• Outputs: Four 4/8 AWG set-screw outputs
• Construction: Solid brass with black nickel finish
• Included: Distribution block, attached plastic cover, and three pre-installed rubber grommets and sleeves
• Quantity: Sold individually
• Fuse requirement: Mini-ANL fuses sold separately
• Approximate dimensions: 4 inches long by 4 inches wide by 2 inches high
• Approximate weight: 5.6 ounces

Choose the T-Spec VFDB4 for a compact, organized solution for splitting one high-current power source into four fused, smaller-gauge circuits.

California Proposition 65 Warning: WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Features:

• One (1) 1/0 to 4 AWG into four (4) 4/8 AWG out
• TPEwrapped soft touch
• Dual sizes gasket set
• Water-resistant
• Solid brass construction
• Black nickel finish
• T20 Torx screws
• Gate Lock technology
