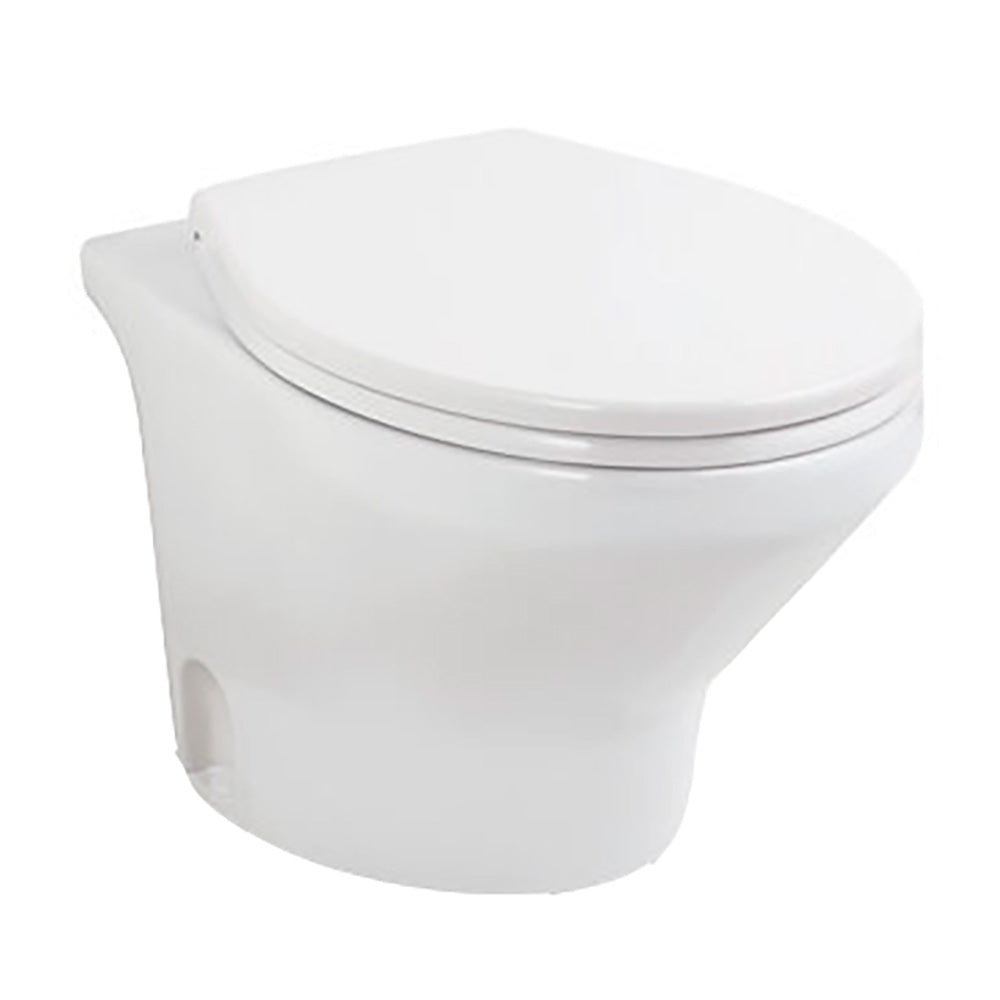

Thetford Marine Compass Eco Low Profile 12V Toilet in White

Compass Eco Toilet - Low, White - 12V

The narrow footprint and smart back of the Compass toilet give maximum space and maximum flexibility wherever it is installed on board. It can go straight to a wall or even further towards the hull thanks to the cutaway. The Compass is not limited by a vertical back. This way, the visual installation remains perfect with whatever installation space you have. The small footprint and the hose design facilitate a very easy installation. The discharge pipes can easily be connected either below the step or surface-mounted in all directions. By having both a high and a short profile, the Compass range offers maximum flexibility on board.

The performance of the macerator pump meets all quality standards, while the technology inside the toilet has been further developed to keep the sound emission to the lowest level possible, while limiting the water and electrical consumption to minimal levels. The installation, plumbing, and wiring are easy and fast, with virtually no maintenance.

Both the Compass High and Short versions are equipped with an innovative soft closing system. A gentle finger touch to the lid activates the soft-close damper mechanism, which controls the closing speed of the cover. In addition to user convenience, a slow-closing lid keeps noise to a minimum and prevents potential damage to the toilet seat.

The soft-close damper mechanism is a design original to Tecma.

Features:

• Italian ceramic
• Wide range of control panels(sold separately)
• Silent flush
• Low consumption

Technical Specifications:

• Weight - 40 lbs
• Water Usage - 0.5-2L/0.1-0.5 gal per flush
• Color - White
• Seat and Cover - Thermosetting with soft closing
• Outlet Pump - MAC 4 12/24V
• Inlet Device - Solenoid

The Thetford Marine Compass Eco Low Profile 12V Toilet offers a compact and versatile solution for marine sanitation needs. Designed with a narrow footprint and innovative back design, this toilet maximizes space efficiency aboard boats, allowing installation directly against walls or even closer to the hull thanks to its cutaway feature. Its flexible discharge options facilitate easy connection to below-step or surface-mounted pipes, making installation straightforward and adaptable to various vessel layouts. The combination of a high and short profile ensures optimal flexibility, whether upgrading existing systems or installing in new marine environments.
Constructed with durable Italian ceramic, the Compass Eco is built for longevity and easy maintenance. Its advanced macerator pump meets rigorous quality standards, providing reliable performance while maintaining minimal noise levels. The toilet's sophisticated internal technology is engineered to reduce water and electrical consumption, making it an environmentally friendly choice for eco-conscious boaters. The soft-close lid, activated by a gentle touch, enhances user convenience by preventing slamming sounds and potential damage, thanks to its innovative damper mechanism exclusive to Tecma.
Designed for ease of use and installation, the Compass Eco features a lightweight design weighing approximately 40 lbs, suitable for quick setup on any vessel. The water usage per flush ranges from 0.5 to 2 liters, promoting water conservation without sacrificing performance. The seat and cover are made from thermosetting material with a soft-closing feature, providing a quiet and comfortable user experience. The outlet pump is a reliable MAC 4 model compatible with 12V or 24V systems, and the inlet device employs a solenoid mechanism for efficient operation. Whether replacing an old toilet or installing anew, the Thetford Marine Compass Eco Low Profile Toilet ensures a seamless, space-saving, and eco-friendly addition to your marine sanitation system.Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly for support or concerns.

Features:

• Italian ceramic construction for durability and ease of cleaning

• Wide range of control panels available separately for customized operation

• Silent flush technology for a quiet user experience

• Low water consumption, using only 0.5-2 liters per flush

• Innovative soft-close lid mechanism for noise reduction and seat longevity

• Compact and low profile design for maximum space efficiency

• Flexible discharge connection options for easy installation

• Lightweight design weighing approximately 40 lbs

• Reliable MAC 4 12/24V outlet pump

• Inlet solenoid device for efficient operation
