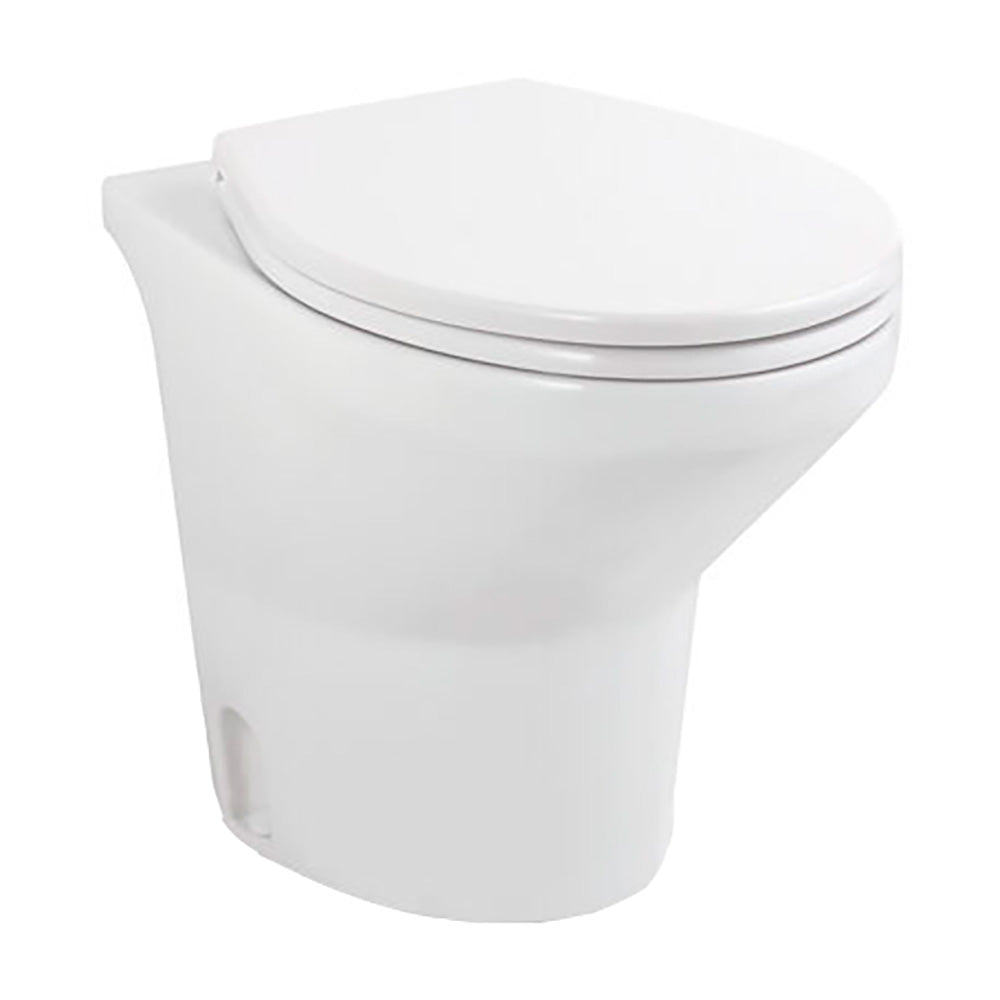

Thetford Marine Compass Touch High-Profile 12V Toilet in White

Compass Touch Toilet - High, White - 12V

The narrow footprint and smart back of the Compass toilet give maximum space and maximum flexibility wherever it is installed on board. It can go straight to a wall or even further towards the hull thanks to the cutaway. The Compass is not limited by a vertical back. This way, the visual installation remains perfect with whatever installation space you have. The small footprint and the hose design facilitate a very easy installation. The discharge pipes can easily be connected either below the step or surface-mounted in all directions. By having both a high and a short profile, the Compass range offers maximum flexibility on board.

The performance of the macerator pump meets all quality standards, while the technology inside the toilet has been further developed to keep the sound emission to the lowest level possible, while limiting the water and electrical consumption to minimal levels. The installation, plumbing, and wiring are easy and fast, with virtually no maintenance.

Both the Compass High and Short versions are equipped with an innovative soft closing system. A gentle finger touch to the lid activates the soft-close damper mechanism, which controls the closing speed of the cover. In addition to user convenience, a slow-closing lid keeps noise to a minimum and prevents potential damage to the toilet seat.

The soft-close damper mechanism is a design original to Tecma.

Features:

• Italian ceramic
• Wide range of control panels(Touch SFT panel included, others sold separately)
• Silent flush
• Low consumption

Technical Specifications:

• Weight - 47.4 lbs
• Water Usage - 0.5-2L/0.1-0.5 gal per flush
• Color - White
• Seat and Cover - Thermosetting with soft closing
• Outlet Pump - MAC 4 12/24V
• Inlet Device - Solenoid

The Thetford Marine Compass Touch High-Profile 12V Toilet offers a perfect blend of space efficiency and modern convenience for marine bathrooms. Its narrow footprint allows seamless installation against walls or further toward the hull, thanks to a clever cutaway design that maximizes flexibility in limited spaces. The compact size combined with an easy hose connection system simplifies installation, making it ideal for both new builds and retrofits on boats where space is at a premium. The integrated discharge options accommodate various plumbing configurations, ensuring a clean and efficient setup regardless of your vessel's layout. With both high and short profile versions, the Compass range adapts effortlessly to diverse installation needs, providing an elegant, unobtrusive solution for onboard sanitation.
Powered by a durable macerator pump, the toilet meets high standards for performance and reliability. Inside, advanced technology minimizes noise and water consumption while maintaining optimal functionality. The soft-close lid, activated with a gentle touch, features an innovative damper mechanism designed exclusively by Tecma, reducing noise and preventing damage to the seat. This thoughtful feature enhances user comfort and prolongs the lifespan of the toilet seat, making daily use more pleasant. The low water and electrical consumption contribute to the vessel's overall efficiency, helping to conserve vital resources during extended voyages. The installation process is straightforward, with plumbing and wiring designed for quick setup and minimal maintenance, ensuring hassle-free operation for years to come.
Constructed with high-quality Italian ceramic, the Compass Touch toilet exudes durability and style. It offers compatibility with a wide range of control panels, including the Touch SFT panel, sold separately, allowing users to customize their control experience. The toilet's silent flush feature ensures quiet operation, creating a peaceful onboard environment. Its lightweight design, at approximately 47 pounds, makes handling and installation easier without sacrificing strength or reliability. The white finish complements any marine interior, providing a clean, modern aesthetic. The water usage ranges from 0.5 to 2 liters per flush, making it an eco-friendly choice that reduces water waste. The seat and cover are thermosetting with soft closing, further enhancing comfort and noise reduction. Equipped with a MAC 4 12/24V outlet pump and a solenoid inlet device, the Compass Touch is engineered for dependable performance and easy integration into your vessel’s plumbing system.
Experience the convenience and efficiency that the Thetford Marine Compass Touch High-Profile Toilet brings to your boat, delivering top-tier function in a sleek, space-conscious design that elevates your marine sanitation system.

Features:

• Italian ceramic construction for durability and style

• Wide range of control panel compatibility, including Touch SFT panel

• Silent flush operation for a peaceful onboard environment

• Low water and electrical consumption for efficiency

• Soft-close lid with innovative damper mechanism for noise reduction and seat longevity
