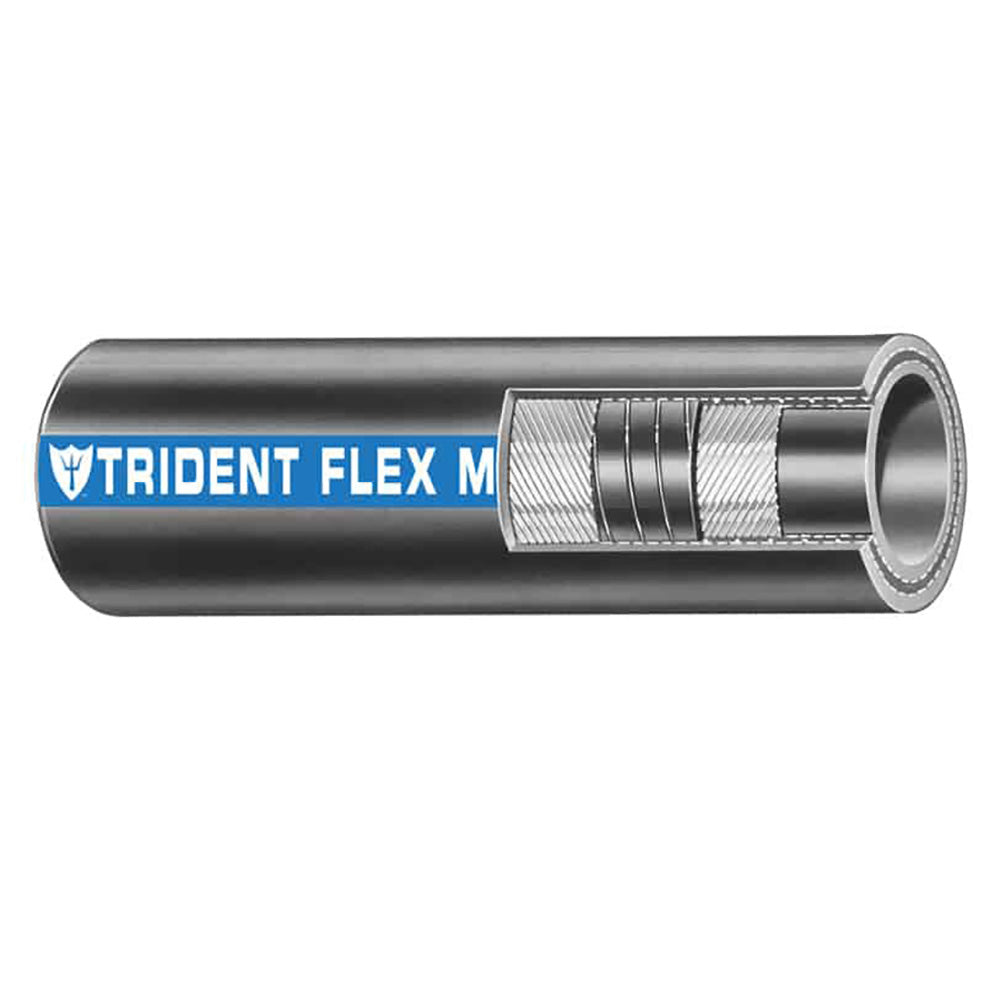

Trident Marine 1-1/2-Inch Flex Marine Wet Exhaust and Water Hose - Black, Sold by the Foot

1-1/2" Flex Marine Wet Exhaust Water Hose - Black - Sold by the Foot

Trident Flex wet exhaust hose for longer bent connections. In smaller I.D.s for engine intake, critical water, drain, scupper bilge sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250F (121C) Max.

Features:

• Sold by the foot
• Extra heavy tube and cover with wire helix between 2-ply reinforcement provides excellent flexibility and bend radius
• Exceeds SAE J2006-R2, ABYC NMMA P-1 exhaust standards, and Lloyds Registry Type Approved

Application:

• Trident Flex wet exhaust hose for longer bent connections
• In smaller I.D.s for engine intake, critical water, drain, scupper bilge sanitation uses

Construction:

• Tube Cover: High temp EDPM rubber
• Color: Black with blue stripe
• Reinforcement: Multi-ply, high-tenacity polyester, steel helix
• Temperature Range: 250F (121C)

Specifications:

• Inner Diameter: (inch) 1-1/2" / (mm) 38
• Outer Diameter: (inch) 1.97 / (mm) .05
• Working Pressure: (Psi) 60 / (bar) 4.1
• Bend Radius: (inch) 4.0" / (mm) 102
• Weight: (Lb./50ft.) 45 / (Kg/m) .518

*Burst Pressure is 4 x Working Pressure

The Trident Marine 1-1/2-inch Flex Wet Exhaust and Water Hose is designed for reliable performance in marine engine applications where flexibility and durability are crucial. Crafted from high-temperature EPDM rubber, this hose resists heat up to 250°F (121°C), ozone, exhaust, and environmental wear, making it ideal for critical water, drain, scupper, bilge sanitation, and engine intake uses. Its black color with a distinctive blue stripe adds a professional look suitable for marine installations. The heavy-duty tube and cover, reinforced with a multi-ply high-tenacity polyester braid and a steel helix wire, provide excellent flexibility, bend radius, and structural integrity to withstand demanding marine environments. A notable feature is the wire helix reinforcement between the two-ply layers, ensuring the hose maintains its shape and performance even under stress. This hose exceeds industry standards, including SAE J2006-R2, ABYC, NMMA P-1 exhaust standards, and Lloyds Registry Type Approval, certifying its safety and reliability for marine applications. Sold by the foot, it offers versatile customization for various lengths needed in your boat or yacht. The dimensions include an inner diameter of 1-1/2 inches (38mm) and an outer diameter of approximately 1.97 inches (50mm), with a bend radius of 4 inches (102mm). Its working pressure is rated at 60 psi (4.1 bar), with a burst pressure four times the working pressure, ensuring safety margins are maintained during operation. Whether replacing worn hoses or installing new systems, this marine hose provides the robust performance needed for demanding marine environments. Please note, as per manufacturer guidelines, this product may not be returned to the original point of purchase, and customers are encouraged to contact Trident Marine directly for any issues or concerns.

Features:

• Sold by the foot for customizable lengths

• Extra heavy tube and cover with wire helix for enhanced flexibility and bend radius

• Constructed from high-temp EPDM rubber resistant to heat, ozone, and exhaust

• Reinforced with multi-ply high-tenacity polyester and steel helix for durability

• Exceeds SAE J2006-R2, ABYC, NMMA P-1 standards, and Lloyds Registry Type Approved

• Designed for marine wet exhaust, water intake, drain, scupper, and bilge sanitation applications

• Temperature rated up to 250°F (121°C)

• Inner diameter: 1-1/2 inches; Outer diameter: approximately 1.97 inches

• Maximum working pressure: 60 psi; Burst pressure: 4 times working pressure
