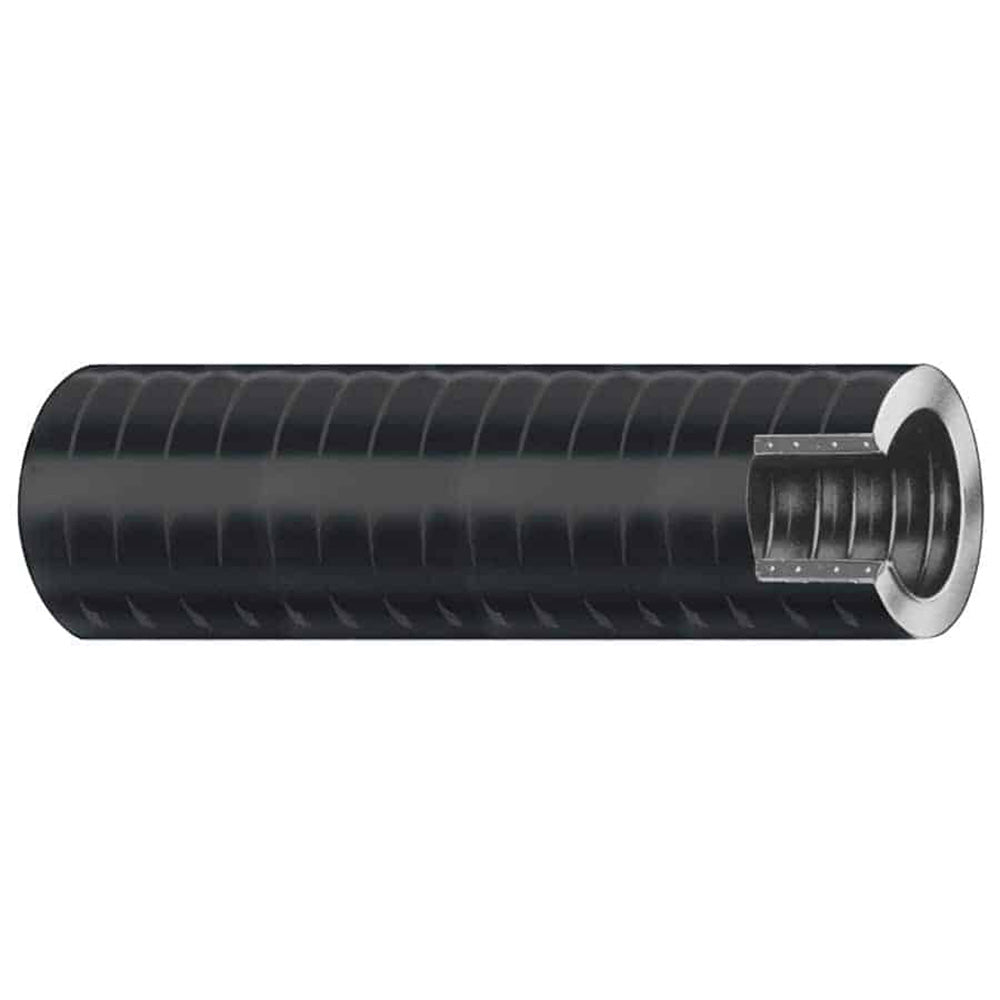

Trident Marine 1-1/2 Inch VAC XHD Bilge and Live Well Hose with Hard PVC Helix – Flexible Heavy-Duty Marine Drain and Water Line – Sold by the Foot

1-1/2" VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black - Sold by the Foot

Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.

Features:

• Sold by the foot
• 149 series of hoses is extra flexible

Application:

• Bilge and live well hose

Specifications:

• Tube Cover: Hard PVC helix
• Color: Black
• Reinforcement: PVC Helix
• Temperature Range: 10F-120F (-12C-48C)
• Inner Diameter: (inch) 1-1/2" / (mm) 38.1
• Outer Diameter: (inch) 1.792" / (mm) 45.5
• Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
• Weight: (Lb./ 50 ft.) 22 / (Kg/m) 9.98
• Bend Radius: (inch) 4" / (mm) 101.6

*Burst Pressure is 4 x Working Pressure

The Trident Marine 1-1/2 Inch VAC XHD Bilge and Live Well Hose is engineered for demanding marine applications where durability and flexibility are essential. Constructed with a hard PVC helix reinforcement, this hose offers excellent bend radius and flexibility comparable to rubber hoses, making installations easier and more efficient. Its smooth outer surface facilitates secure clamping, ensuring a tight and reliable connection in bilge, live well, and other heavy-duty water transfer systems. Designed specifically for marine environments, the hose withstands temperatures from 10°F to 120°F, making it suitable for a wide range of operating conditions. The reinforced PVC helix provides durability against abrasion and chemical exposure commonly encountered aboard boats and vessels. It is sold by the foot, giving you the flexibility to purchase only the length needed for your project without waste. The 149 series of hoses, including this model, are known for their superior flexibility and resilience, ideal for challenging marine plumbing tasks. The hose's dimensions include an inner diameter of 1-1/2 inches (38.1 mm) and an outer diameter of approximately 1.79 inches (45.5 mm). It is rated for a working vacuum pressure of 28 inches of mercury and a burst pressure four times the working pressure, ensuring safety and reliability under high-stress conditions. The hose weighs approximately 22 pounds per 50 feet, making it manageable for installation and handling. Whether replacing an existing bilge pump hose or setting up a new live well system, the Trident Marine VAC XHD hose offers a durable, flexible, and easy-to-install solution designed for marine environments. Please note that this product may not be returned to the original point of purchase; for any issues or concerns, contact the manufacturer directly. This product complies with Prop 65 standards, ensuring safety and quality for marine use.

Features:

• Sold by the foot for custom lengths

• Extra flexible 149 series design for easy installation

• Hard PVC helix reinforcement provides superior durability

• Smooth outer surface for easy clamping

• Temperature range suitable for marine environments (10°F-120°F)

• Inner diameter of 1-1/2 inches (38.1 mm)

• Outer diameter approximately 1.79 inches (45.5 mm)

• Rated for a vacuum of 28 inches of Hg and burst pressure four times the working pressure

• Lightweight at approximately 22 pounds per 50 feet
