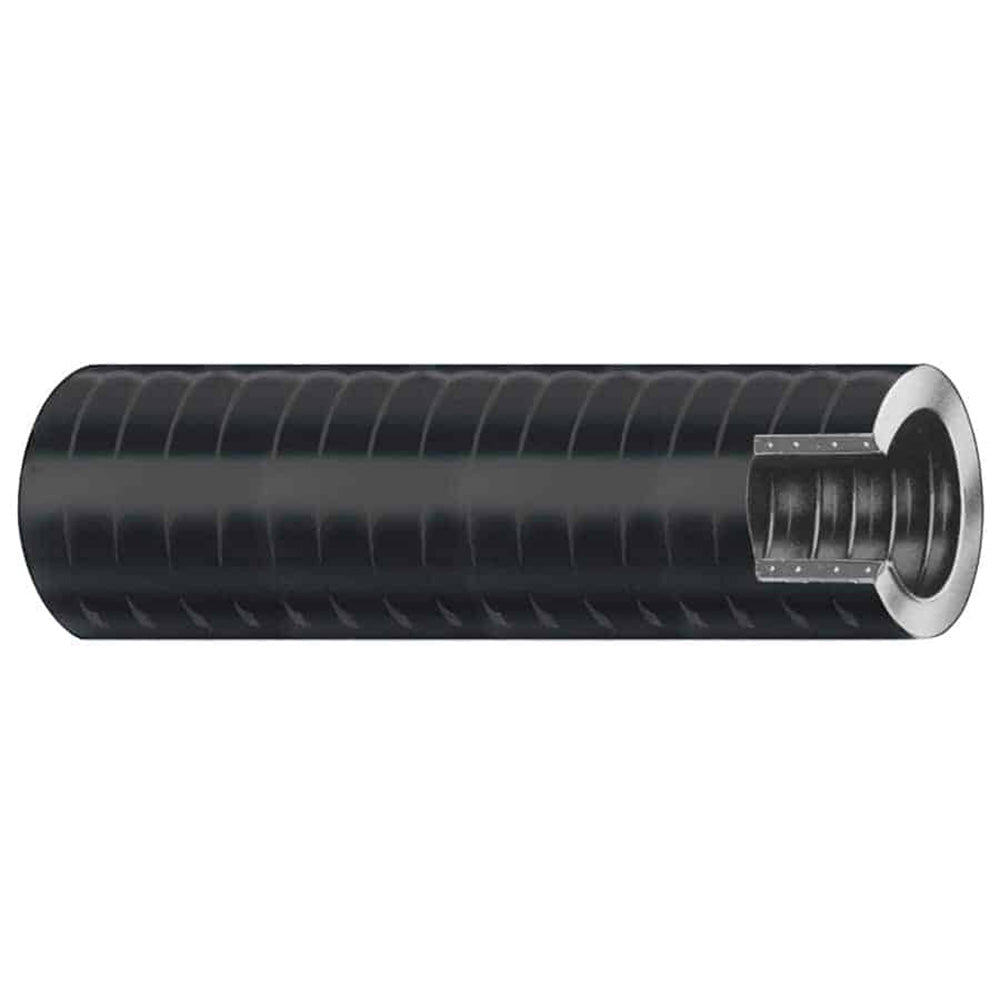

Trident Marine 1-1/8 inch VAC XHD Bilge and Live Well Hose with Hard PVC Helix, Black – Sold by the Foot

1-1/8" VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black - Sold by the foot

Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.

Features:

• Sold by the foot
• 149 series of hoses is extra flexible

Application:

• Bilge and live well hose

Specifications:

• Tube Cover: Hard PVC helix
• Color: Black
• Reinforcement: PVC Helix
• Temperature Range: 10F-120F (-12C-48C)
• Inner Diameter: (inch) 1-1/8" / (mm) 28.6
• Outer Diameter: (inch) 1.433" / (mm) 36.4
• Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
• Weight: (Lb./ 50 ft.) 15 / (Kg/m) 6.80
• Bend Radius: (inch) 3" / (mm) 76.2

*Burst Pressure is 4 x Working Pressure

The Trident Marine 1-1/8 inch VAC XHD Bilge and Live Well Hose is engineered to meet the demanding needs of marine applications. Featuring a durable hard PVC helix reinforcement, this hose offers exceptional flexibility and a tight bend radius, making installations easier and more reliable. Its smooth outer surface ensures a secure, leak-free clamp connection, while its robust construction withstands heavy-duty use in bilge and live well systems. Designed for performance and longevity, this hose is an ideal choice for boat owners and marine professionals seeking a high-quality, flexible, and corrosion-resistant solution.

Constructed from high-grade materials, the 149 series hose is rated for operation within a temperature range of 10°F to 120°F (-12°C to 48°C). The inner diameter of 1-1/8 inches (28.6 mm) and outer diameter of approximately 1.43 inches (36.4 mm) allow for efficient water flow, while the PVC helix reinforcement provides the strength needed to handle vacuum and pressure conditions typical in marine environments. With a working pressure of 28 inches of vacuum or 1.93 bar, this hose offers reliable performance under various operating conditions. Its lightweight design, weighing approximately 15 pounds per 50 feet, makes handling and installation straightforward.

Ideal for bilge pumping and live well systems, this hose's flexible yet sturdy construction ensures ease of use without sacrificing durability. The product complies with safety standards, and its burst pressure is four times the working pressure, providing an additional safety margin. Please note that this product may not be returned to the original point of purchase; for any issues, contact the manufacturer directly. Whether replacing worn-out hoses or installing new systems, the Trident Marine VAC XHD hose combines superior quality with essential features for marine water management.

Features:

• Sold by the foot for custom lengths

• Extra flexible 149 series design for easy installation

• Hard PVC helix reinforcement for durability

• Smooth outer surface for secure clamping

• Temperature range: 10°F to 120°F (-12°C to 48°C)

• Inner diameter: 1-1/8 inches (28.6 mm)

• Outer diameter: approximately 1.43 inches (36.4 mm)

• Working pressure: 28 inches of vacuum / 1.93 bar

• Lightweight at approximately 15 pounds per 50 feet

• Suitable for bilge and live well applications
