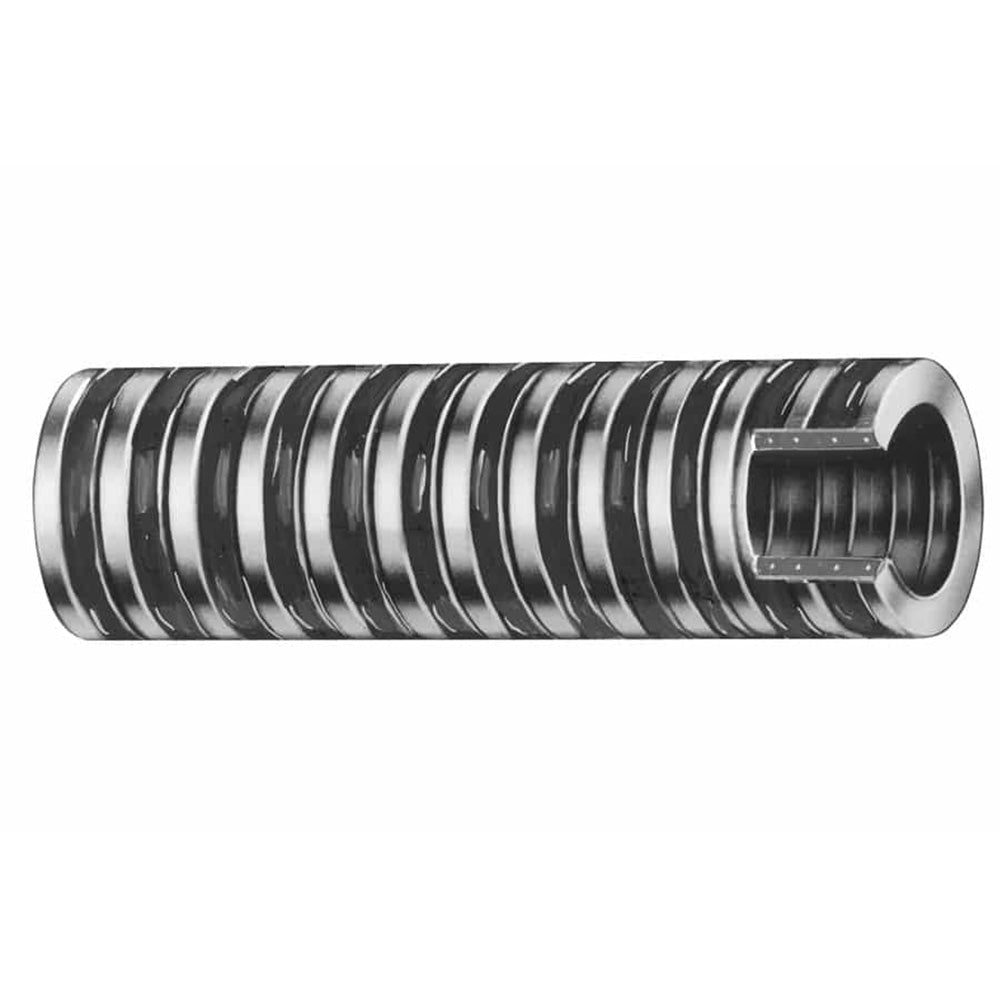

Trident Marine 1-1/8 inch x 50 ft Heavy Duty PVC Bilge and Livewell Hose with Black Helix

1-1/8" x 50' Heavy Duty PVC Bilge Livewell Hose (FDA) - Clear with Black Helix

Trident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required.

Features:

• Flexible, but the 147 series is less flexible than the 149 series of hoses

Application:

• Bilge and live well hose

Specifications:

• Tube Cover: Clear vinyl reinforced with black helix
• Color: Clear with black helix
• Reinforcement: PVC Helix
• Temperature Range: 10F-120F (-12C-49C)
• Boxed: 50ft. / (15.24m)
• Inner Diameter: (inch) 1-1/8" / (mm) 28.6
• Outer Diameter: (inch) 1.39" / (mm) 35.4
• Working Pressure: (Psi Vac In./Hg) 28
• Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.45
• Bend Radius: (inch) 3.5" / (mm) 8.9

*Burst Pressure is 4 x Working Pressure

The Trident Marine 147-1186 Heavy Duty PVC Bilge and Livewell Hose is designed for demanding marine applications where durability and clarity are essential. Constructed from FDA-approved smooth vinyl with reinforced black helix, this hose offers excellent flexibility and strength, making it ideal for bilge pumps, live well systems, drain lines, and scupper connections. Its clear construction allows for easy inspection of flow, ensuring optimal performance and safety during marine operations. The hose’s robust design resists kinking and features a high burst pressure, providing peace of mind in critical applications. With a flexible yet sturdy wall, it minimizes installation effort while maintaining long-term durability, even in harsh conditions. This 50-foot length is perfect for large marine setups, ensuring you have ample hose for various configurations. The PVC helix reinforcement enhances stability and prevents collapse under vacuum or pressure, making it suitable for continuous use in temperatures ranging from 10°F to 120°F. The hose’s compact bend radius allows flexible routing through tight spaces without compromising integrity. Its lightweight construction, weighing approximately 15 pounds per 50 feet, simplifies handling and installation. Whether replacing worn-out bilge hoses or setting up new live well systems, the Trident Marine Heavy Duty PVC Hose ensures reliable, clear, and flexible fluid transfer for your boat’s critical systems. This product complies with safety standards and is Prop 65 compliant, ensuring safe use in marine environments. Trust Trident Marine’s quality and performance for your marine plumbing needs, backed by proven durability and design excellence.

Features:

• Heavy-duty PVC construction with black helix reinforcement for enhanced strength and durability

• Clear vinyl tube allows for visual inspection of flow

• Suitable for bilge, live well, drain, and scupper lines

• Temperature range from 10°F to 120°F, suitable for various marine environments

• Flexible design with a bend radius of 3.5 inches for easy installation in tight spaces

• High burst pressure, 4 times the working pressure, for safety and reliability

• Lightweight and easy to handle at approximately 15 pounds per 50 feet

• No cuffs required, simplifying installation and maintenance
