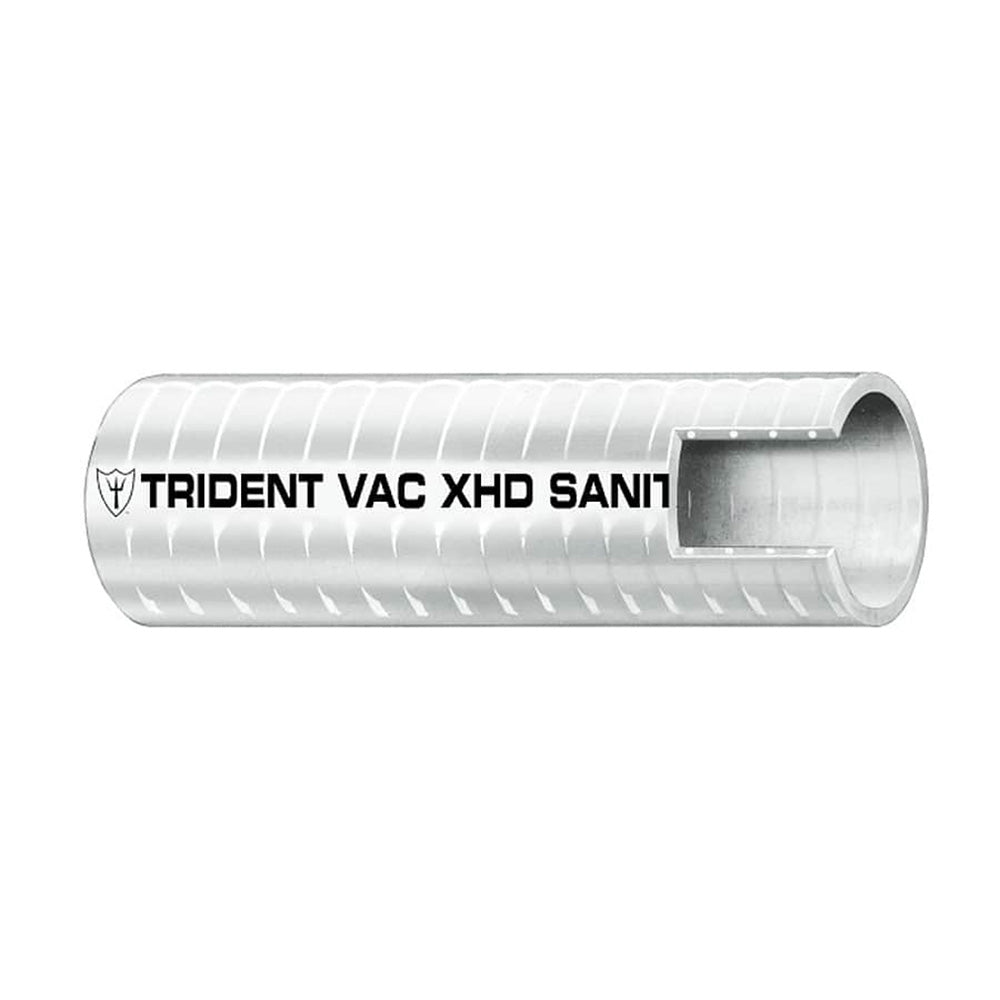

Trident Marine 1-Inch x 50-Foot VAC XHD Sanitation Hose with Hard PVC Helix - White

1" x 50' Box VAC XHD Sanitation Hose - Hard PVC Helix - White

Trident Ply Extra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for the critical bilge, drain scuppers, live wells, etc. Self-draining installations are recommended for the longest odor-free service.

Features:

• A hard PVC helix gives good flexibility and bend radius
• No cuffs are required

Application:

• Specially compounded to provide resistance to odor permeation and (FDA) potable water fill
• Also for critical bilge, drain scupper, live well, etc

Specifications:

• Tube Cover: Hard PVC helix
• Color: White
• Reinforcement: PVC Helix
• Temperature Range: 10F-120F (-12C-48C)
• Boxed: 50ft. / (15.2m)
• Inner Diameter: (inch) 1" / (mm) 25.4
• Outer Diameter: (inch) 1.262" / (mm) 32.1
• Working Pressure: (Psi Vac In./Hg) 28
• Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.52
• Bend Radius: (inch) 3" / (mm) 76.2

*Don't use with alcohol, anti-freeze, petrochemicals, or solvents

*Burst Pressure is 4 x Working Pressure

The Trident Marine 1" x 50' VAC XHD Sanitation Hose is designed for heavy-duty marine sanitation and fluid transfer applications. Crafted from smooth white vinyl with a durable hard PVC helix, this hose offers excellent flexibility and a tight bend radius, making it suitable for various marine environments. Its specially compounded material provides exceptional resistance to odor permeation and is approved for (FDA) potable water fill, ensuring safe and sanitary operation for drinking water systems. Ideal for critical applications such as bilge, drain scuppers, and live wells, this hose is built for longevity and reliable performance. Self-draining installations are recommended to maintain odor-free service and prevent standing water that can lead to odors or contamination. The reinforced PVC helix structure enhances durability while maintaining flexibility, allowing easy installation even in tight spaces. With a temperature range from 10°F to 120°F (-12°C to 48°C), this hose is suitable for a variety of marine temperature conditions. The 50-foot length provides ample reach for most applications, and the 1-inch inner diameter with a 1.262-inch outer diameter ensures compatibility with standard fittings. The hose's working pressure of 28 PSI vacuum or 4 times the working pressure burst rating guarantees safe operation under demanding conditions. Designed with safety and durability in mind, the Trident Marine sanitation hose is an essential component for maintaining clean, odor-free, and sanitary marine systems. Please avoid using with alcohol, anti-freeze, petrochemicals, or solvents to preserve hose integrity and performance. This product complies with Prop 65 regulations, ensuring it meets safety standards for consumer use.

Features:

• Hard PVC helix provides good flexibility and bend radius

• No cuffs required for installation

• Specially compounded to resist odor permeation and FDA potable water fill

• Suitable for bilge, drain scuppers, live wells, and sanitation systems

• Temperature range from 10°F to 120°F (-12°C to 48°C)

• Reinforced with durable PVC helix for enhanced strength

• Burst pressure is four times the working pressure
