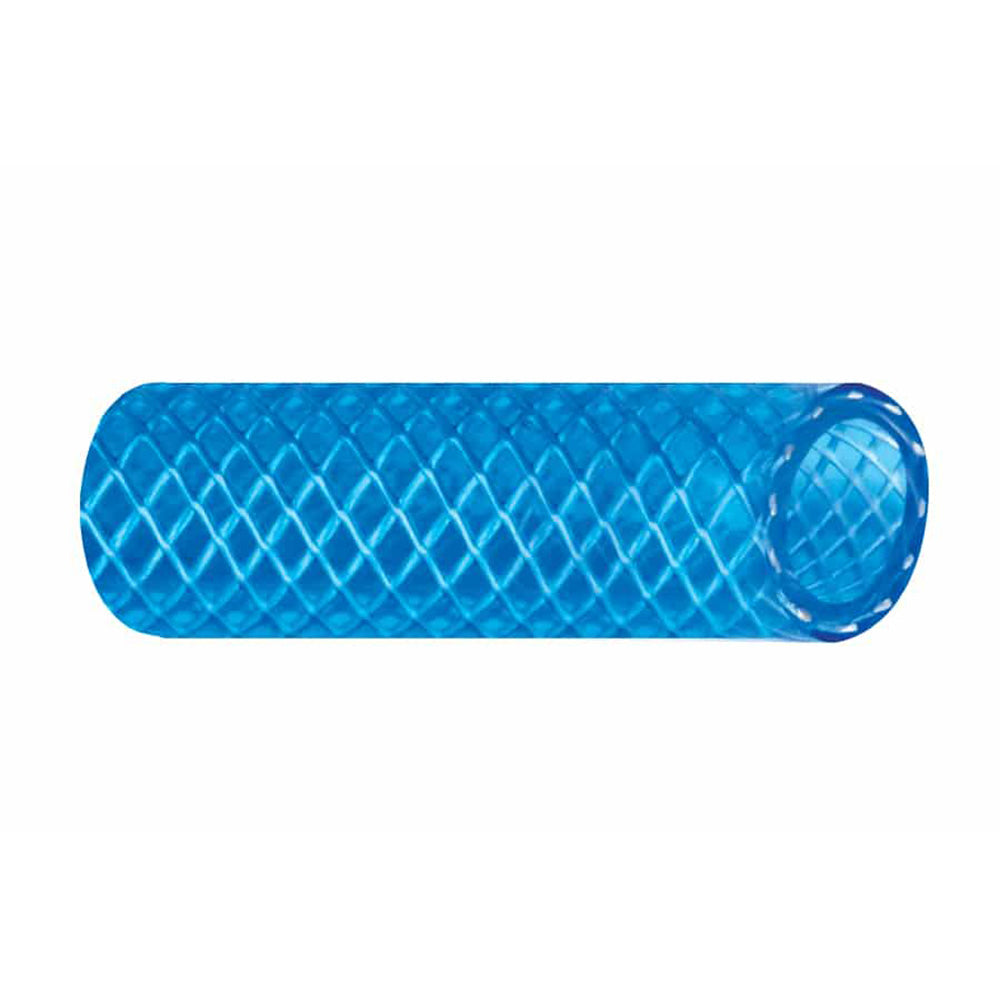

Trident Marine 165 Series 3/4-Inch Reinforced PVC Cold Water Feed Line Hose - Drinking Water Safe, Translucent Blue, Sold by the Foot

3/4" Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue - Sold by the Foot

Trident 165 Series Blue - polyester reinforced PVC hose for "Cold Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4F (- 28C) and can handle pressures up to 250 psi (varies based on i.d size).

Features:

• Sold by the foot
• The Blue cover allows for easy identification of "Cold Water" lines on your boat
• Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
• This hose is safe for use with drinking water

Application:

• Perfect for cold pressurized applications, water feed, drains, and vent lines

Construction:

• Tube Cover: Clear FDA tube
• Color: Blue Transparent
• Reinforcement: Polyester
• Temperature Range: -18F to 149F (-28C to 65C)

Specifications:

• Inner Diameter: (inch) 3/4" / (mm) 19
• Outer Diameter: (inch) 1 / (mm) 25.4
• Working Pressure: (PSI Vac In./Hg) 220 / (bar) 15
• Bend Radius: (inch) 1.5" / (mm) 38

*Burst Pressure is 4 x Working Pressure

The Trident Marine 165 Series 3/4-inch reinforced PVC hose is designed specifically for cold water feed lines on boats and marine applications. Crafted from FDA-grade, non-toxic, odorless, and tasteless PVC, this hose ensures safe drinking water delivery while maintaining exceptional durability. Its translucent blue color allows for easy identification of cold water lines, enhancing system organization and safety. The hose features a three-ply polyester reinforcement, providing excellent abrasion resistance and sustained flexibility even in harsh operating conditions. This construction enables the hose to handle pressures up to 250 psi, making it suitable for high-pressure water systems. With a temperature range from -18°F to 149°F (-28°C to 65°C), it performs reliably in diverse marine environments, including cold climates. The hose’s design includes a clear FDA-approved tube and a durable blue cover, making it ideal for potable water applications, water feeds, drains, and vent lines. Its inner diameter measures 3/4 inch, with an outer diameter of approximately 1 inch, and it features a bend radius of 1.5 inches for flexible installation. The burst pressure of this hose is four times the working pressure, ensuring added safety and longevity. Sold by the foot, this hose offers flexible sizing options for custom installations. Please note that this product may not be returned to the original point of purchase, and any issues should be directed to the manufacturer. Suitable for demanding marine environments, the Trident Marine 165 Series hose combines safety, durability, and ease of identification to meet the needs of professional and DIY boat owners alike, providing a reliable solution for potable water and pressurized water systems.

Features:

• Sold by the foot for customizable lengths

• Translucent blue cover for easy identification of cold water lines

• Made of three-ply polyester reinforcement for excellent abrasion resistance and flexibility

• FDA-grade tube is non-toxic, odorless, and tasteless, safe for drinking water

• Designed to withstand pressures up to 250 psi

• Temperature range from -18°F to 149°F (-28°C to 65°C), suitable for cold water systems

• Bend radius of 1.5 inches for flexible routing

• Burst pressure is four times the working pressure for added safety
