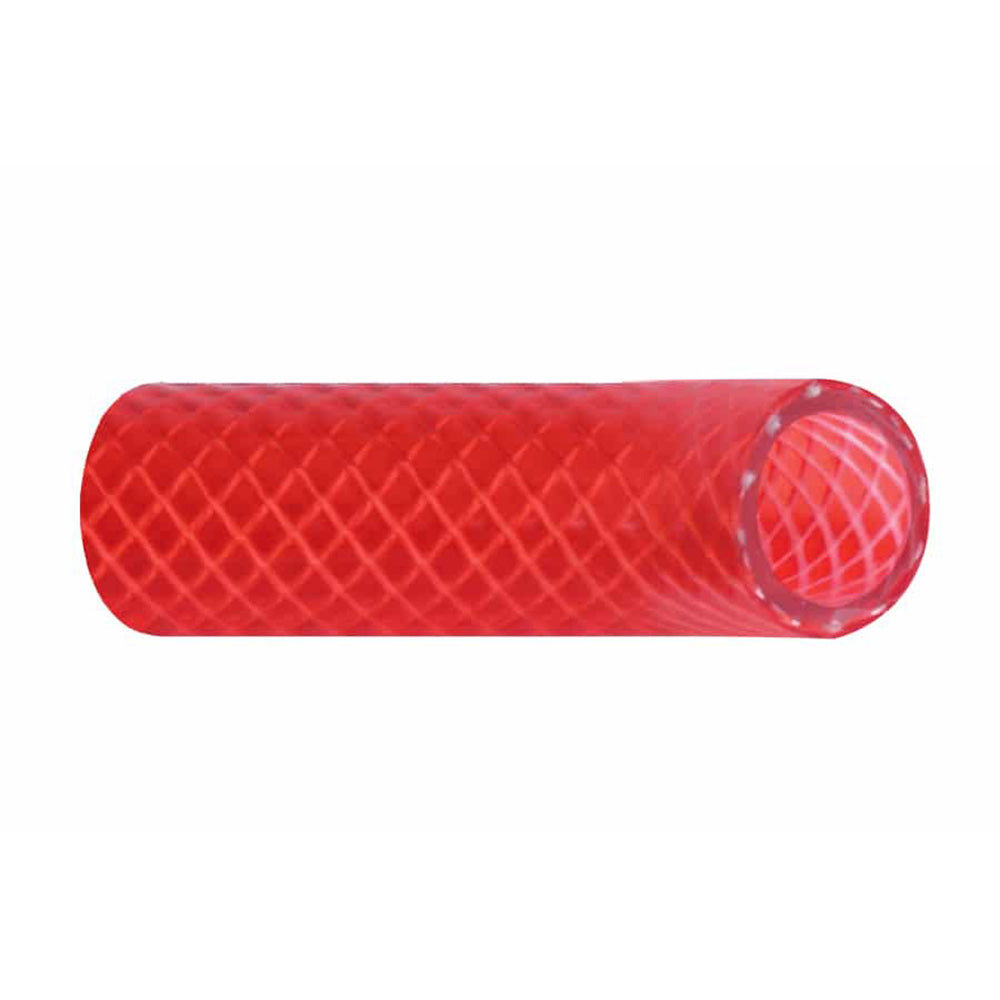

Trident Marine 166-0586 5/8 Inch x 50 Feet Reinforced PVC Hot Water Feed Line Hose – Drinking Water Safe, Translucent Red

5/8" x 50' Boxed Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red

Trident 166 Series Red - polyester reinforced PVC hose for "Hot Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149F (65C) and can handle pressures to a maximum of 250 psi (varies based on i.d size).

Features:

• The Red cover allows for easy identification of "Hot Water" lines on your boat
• Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
• This hose is safe for use with drinking water

Application:

• Perfect for hot, pressurized applications, hot water feed, drains, and vent lines

Construction:

• Tube Cover: Clear FDA tube
• Color: Red Transparent
• Reinforcement: Polyester
• Temperature Range: -18F to 149F (-28C to 65C)
• Length: 50 (15.24m)

Specifications:

• Inner Diameter: (inch) 5/8" / (mm) 15.9
• Outer Diameter: (inch) .866 / (mm) 22.5
• Working Pressure: (PSI Vac In./Hg) 230 / (bar) 16
• Bend Radius: (inch) 1.26" / (mm) 32

*Burst Pressure is 4 x Working Pressure

The Trident Marine 166 Series 5/8 inch x 50-foot reinforced PVC hose is designed specifically for hot water feed lines on boats, combining durability with safety. Constructed with a clear FDA-grade tube and a vibrant red outer cover, this hose ensures easy identification of hot water lines while maintaining compliance with drinking water safety standards. Its polyester reinforcement provides excellent abrasion resistance and sustained flexibility, making it suitable for demanding marine environments. With a maximum temperature of 149°F (65°C) and a pressure capacity of up to 250 psi, this hose offers reliable performance for hot water applications, including feeds, drains, and vent lines. The translucent red color not only enhances visibility but also helps prevent accidental cross-connections, promoting safety onboard. Built to withstand harsh conditions, the hose's construction ensures long-lasting performance without compromising flexibility or safety, making it an ideal choice for marine plumbing systems. Whether for new installations or replacements, the Trident Marine 166-0586 hose meets industry standards and offers peace of mind for boat owners seeking durable, safe, and easy-to-identify hot water lines. This hose's design conforms to Prop 65 compliance, ensuring it meets safety standards for use with potable water and in various marine applications. Simplify your marine plumbing with this high-quality, easy-to-install reinforced PVC hose, ensuring reliable hot water delivery in your vessel’s system.

Features:

• Red cover for easy identification of hot water lines on your boat

• Made of 3-ply polyester reinforcement for excellent abrasion resistance and flexibility

• FDA-grade, non-toxic, odorless, and tasteless tube safe for drinking water

• Temperature range from -18°F to 149°F (-28°C to 65°C)

• Maximum working pressure of 250 psi, with burst pressure 4 times the working pressure

• Translucent red color enhances visibility and safety
