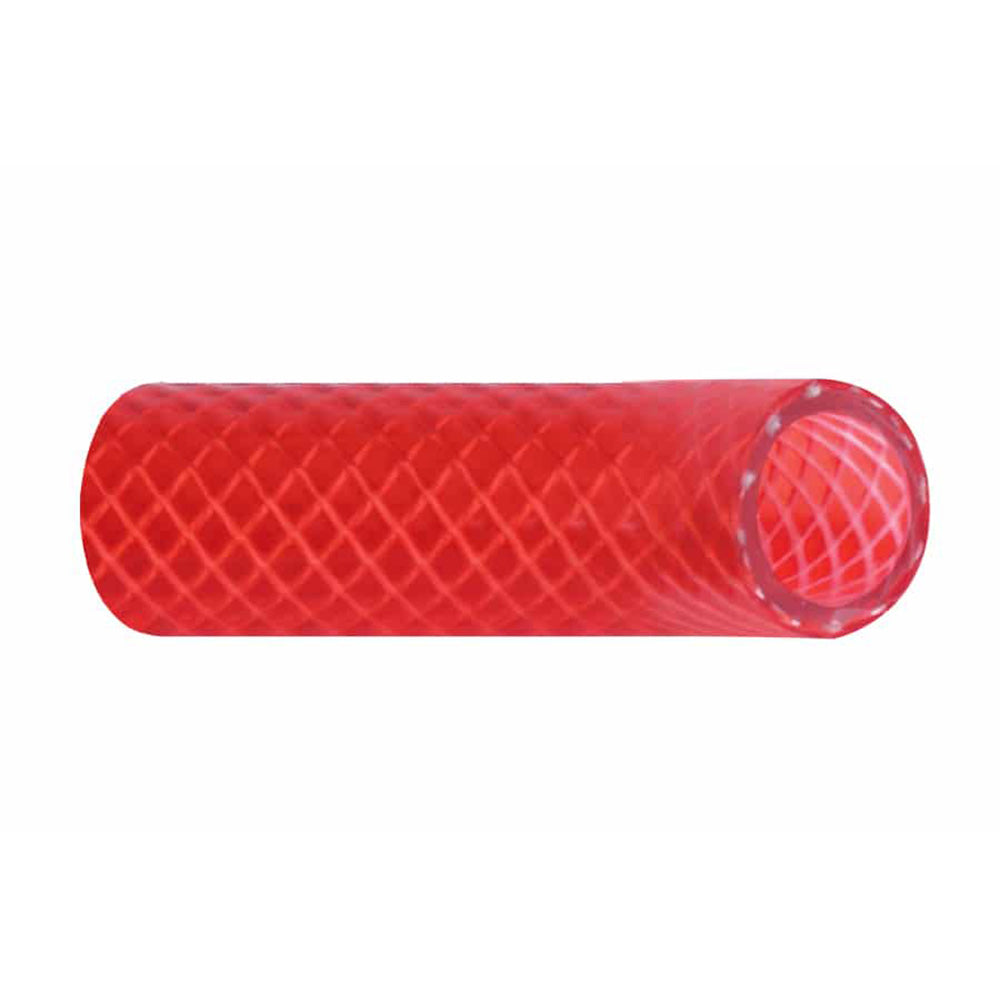

Trident Marine 166 Series 5/8 inch Reinforced FDA-Approved Hot Water Feed Line Hose - Translucent Red, Sold by the Foot

5/8" Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red - Sold by the Foot

Trident 166 Series Red - polyester reinforced PVC hose for "Hot Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149F (65C) and can handle pressures to a maximum of 250 psi (varies based on i.d size).

Features:

• Sold by the foot
• The Red cover allows for easy identification of "Hot Water" lines on your boat
• Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
• This hose is safe for use with drinking water

Application:

• Perfect for hot, pressurized applications, hot water feed, drains, and vent lines

Construction:

• Tube Cover: Clear FDA tube
• Color: Red Transparent
• Reinforcement: Polyester
• Temperature Range: -18F to 149F (-28C to 65C)

Specifications:

• Inner Diameter: (inch) 5/8" / (mm) 15.9
• Outer Diameter: (inch) .866 / (mm) 22.5
• Working Pressure: (PSI Vac In./Hg) 230 / (bar) 16
• Bend Radius: (inch) 1.26" / (mm) 32

*Burst Pressure is 4 x Working Pressure

Ensure safe and reliable hot water transfer on your boat with the Trident Marine 166 Series 5/8 inch Reinforced PVC Hose. Crafted from FDA-grade, non-toxic, odorless, and tasteless materials, this translucent red hose offers excellent visibility and easy identification of hot water lines in marine and industrial applications. Designed to withstand harsh operating conditions, it performs reliably in temperatures up to 149°F (65°C) and can handle pressures up to 250 psi, making it ideal for hot water feeds, drains, and vent lines. The hose's durable 3-ply polyester reinforcement provides outstanding abrasion resistance and maintains flexibility over time, ensuring long-lasting performance even in demanding environments. The bright red color aids in quick identification, enhancing safety and efficiency in complex plumbing setups. Built with a clear FDA-approved tube, this hose guarantees safe contact with drinking water, adhering to health and safety standards. Its construction features a reinforced polyester layer, a flexible inner tube for optimal flow, and a translucent red cover for easy visual inspection. The hose's dimensions and specifications, including a 5/8 inch inner diameter, 22.5 mm outer diameter, and a bend radius of 1.26 inches, make it versatile for various marine and industrial hot water applications. The burst pressure is four times the maximum working pressure, providing added safety margin. Sold by the foot, this product allows for flexible installation tailored to your specific needs. Please note that this product may not be returned to the point of purchase, and any issues should be directed to the manufacturer for support. Trust Trident Marine for quality, safety, and durability in your plumbing solutions.

Features:

• Sold by the foot for flexible installation

• Bright red color for easy hot water line identification

• Made of 3-ply polyester for abrasion resistance and flexibility

• FDA-approved, non-toxic, odorless, and tasteless for drinking water safety

• Designed for hot water applications up to 149°F (65°C) and 250 psi pressure

• Reinforced polyester construction ensures durability in harsh conditions

• Translucent red cover allows for visual inspection

• Bend radius of 1.26 inches facilitates installation in tight spaces

• Burst pressure is four times the working pressure for safety
