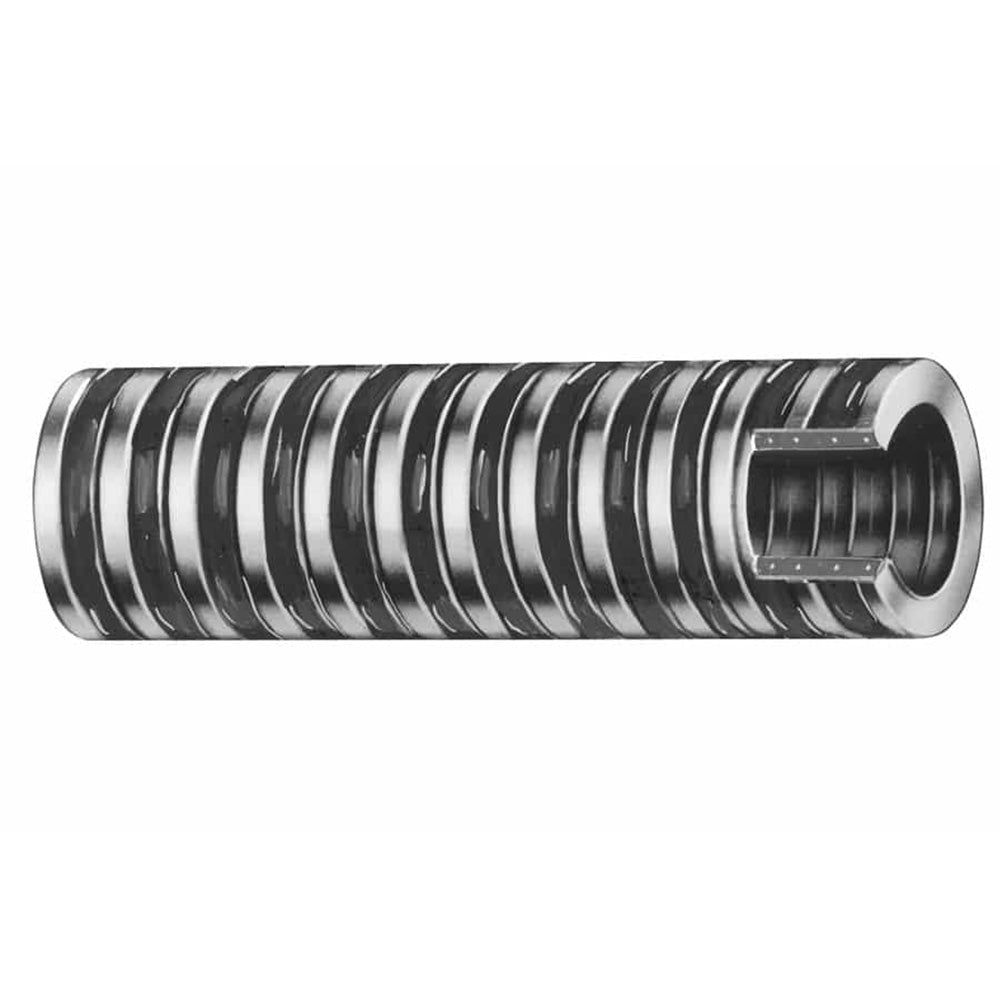

Trident Marine 3/4 Inch Heavy Duty PVC Bilge and Livewell Hose with Black Helix, FDA Approved - Sold by the Foot

3/4" Heavy Duty PVC Bilge Livewell Hose (FDA) - Clear with Black Helix - Sold by the Foot

Trident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required.

Features:

• Sold by the foot
• Flexible, but the 147 series is less flexible than the 149 series of hoses

Application:

• Bilge and live well hose

Specifications:

• Tube Cover: Clear vinyl reinforced with black helix
• Color: Clear with black helix
• Reinforcement: PVC Helix
• Temperature Range: 10F-120F (-12C-49C)
• Inner Diameter: (inch) 3/4" / (mm) 19
• Outer Diameter: (inch) 0.968" / (mm) 24.6
• Working Pressure: (Psi Vac In./Hg) 28
• Weight: (Lb./ 50 ft.) 11 / (Kg/m) 0.33
• Bend Radius: (inch) 2.25" / (mm) 57.2

*Burst Pressure is 4 x Working Pressure

Designed for demanding marine applications, the Trident Marine 3/4" Heavy Duty PVC Bilge and Livewell Hose offers exceptional durability and flexibility for bilge pumping, live well circulation, drainage, and scupper lines. Constructed with a clear vinyl tube reinforced by a black helix, this hose provides excellent visibility and strength, making maintenance and inspections straightforward. Its heavy wall design ensures reliable performance in harsh marine environments, withstanding temperature ranges from 10°F to 120°F and operating at a working pressure of 28 psi. The reinforced PVC helix enhances the hose's structural integrity, enabling it to bend easily with a minimum bend radius of just over 2 inches, reducing the risk of kinks and blockages during operation.

The Trident Marine 147-0346-FT hose is sold by the foot, allowing for customizable installation lengths suited to your vessel’s specifications. Its less flexible nature compared to the 149 series makes it ideal for applications where a sturdy, resilient hose is necessary. Suitable for both bilge and live well use, this hose meets FDA standards for safety and cleanliness, ensuring it’s safe for potable water and food-related applications. Its construction withstands marine conditions, withstanding a temperature range from 10°F to 120°F, making it suitable for a variety of climates and water conditions. Please note, the product's burst pressure is four times the working pressure, providing an added margin of safety.

Whether replacing old hoses or installing new systems, the Trident Marine PVC hose is a reliable choice for boat owners seeking a durable and easy-to-manage solution. The clear design allows quick visual checks, and the black helix provides added reinforcement to prevent collapse or kinking during operation. As with all marine equipment, proper installation and maintenance are essential to ensure optimal performance and longevity. This product may not be returned to the original point of purchase; for any issues or concerns, contact Trident Marine directly to ensure proper support and service.

Features:

• Sold by the foot for customizable length

• Heavy duty PVC construction with black helix reinforcement

• Clear vinyl tube for easy visual inspection

• Temperature range: 10°F to 120°F

• Working pressure: 28 psi

• Minimal bend radius for flexible installation

• FDA approved for safety in potable water applications

• Suitable for bilge, live well, drain, and scupper lines
