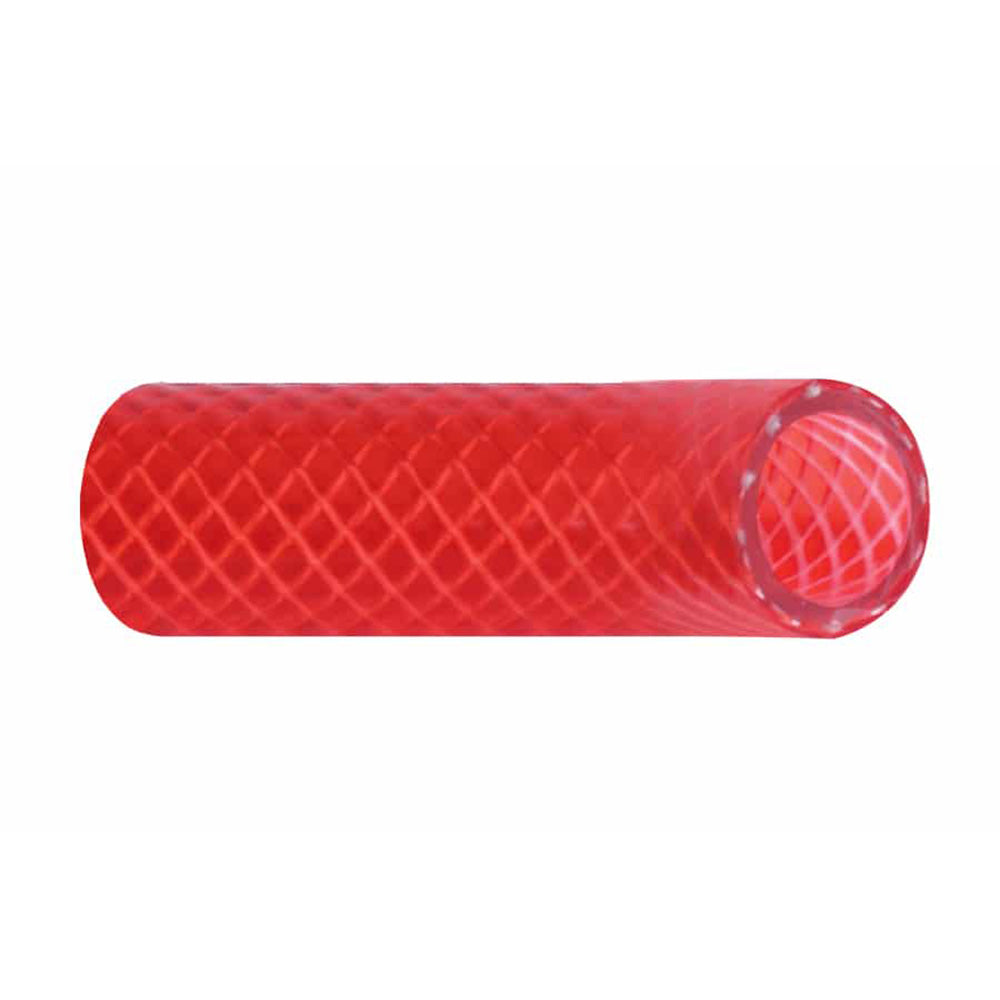

Trident Marine 3/4 Inch Reinforced PVC Hot Water Feed Line Hose – Drinking Water Safe, Translucent Red, Sold by the Foot

3/4" Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red - Sold by the Foot

Trident 166 Series Red - polyester reinforced PVC hose for "Hot Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149F (65C) and can handle pressures to a maximum of 250 psi (varies based on i.d size).

Features:

• Sold by the foot
• The Red cover allows for easy identification of "Hot Water" lines on your boat
• Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
• This hose is safe for use with drinking water

Application:

• Perfect for hot, pressurized applications, hot water feed, drains, and vent lines

Construction:

• Tube Cover: Clear FDA tube
• Color: Red Transparent
• Reinforcement: Polyester
• Temperature Range: -18F to 149F (-28C to 65C)

Specifications:

• Inner Diameter: (inch) 3/4" / (mm) 19
• Outer Diameter: (inch) 1 / (mm) 25.4
• Working Pressure: (PSI Vac In./Hg) 220 / (bar) 15
• Bend Radius: (inch) 1.5" / (mm) 38

*Burst Pressure is 4 x Working Pressure

Ensure safe and reliable hot water delivery with the Trident Marine 166 Series 3/4 Inch Reinforced PVC Hose. Crafted with a durable, FDA-grade, non-toxic, odorless, and tasteless tube, this translucent red hose is designed specifically for hot water feed lines on boats and marine applications. Its polyester reinforcement provides excellent abrasion resistance and sustained flexibility, making it suitable for demanding operating conditions where temperatures reach up to 149°F (65°C) and pressures up to 250 psi, depending on the inner diameter. The vibrant red color makes it easy to identify hot water lines at a glance, enhancing safety and organization aboard your vessel. This hose is ideal for hot, pressurized applications such as hot water feeds, drains, and vent lines, ensuring secure and hygienic water transfer in marine environments. Constructed with a clear FDA-approved tube and a red transparent cover, it combines functionality with safety, meeting strict standards for drinking water systems. The reinforced design includes a 3-ply polyester layer, ensuring durability against wear and tear while maintaining flexibility for tight bends with a minimum bend radius of 1.5 inches. Suitable for a wide temperature range from -18°F to 149°F (-28°C to 65°C), this hose is built to withstand the rigors of marine use, with a burst pressure four times the working pressure for added safety margin. Sold by the foot, it provides flexible length options to fit your specific project needs. Please note that this product may not be returned to the original point of purchase; contact the manufacturer directly for any issues or concerns, especially in compliance with Prop 65 safety guidelines. Trust Trident Marine for high-quality, reliable marine hoses designed to keep your vessel’s systems running smoothly and safely.

Features:

• Sold by the foot for customizable lengths

• Color-coded red cover for easy identification of hot water lines

• Made of 3-ply polyester reinforcement for excellent abrasion resistance and flexibility

• FDA-grade hose safe for drinking water use

• Temperature range from -18°F to 149°F (-28°C to 65°C)

• Maximum pressure of 250 psi, depending on inner diameter

• Burst pressure is four times the working pressure for added safety
