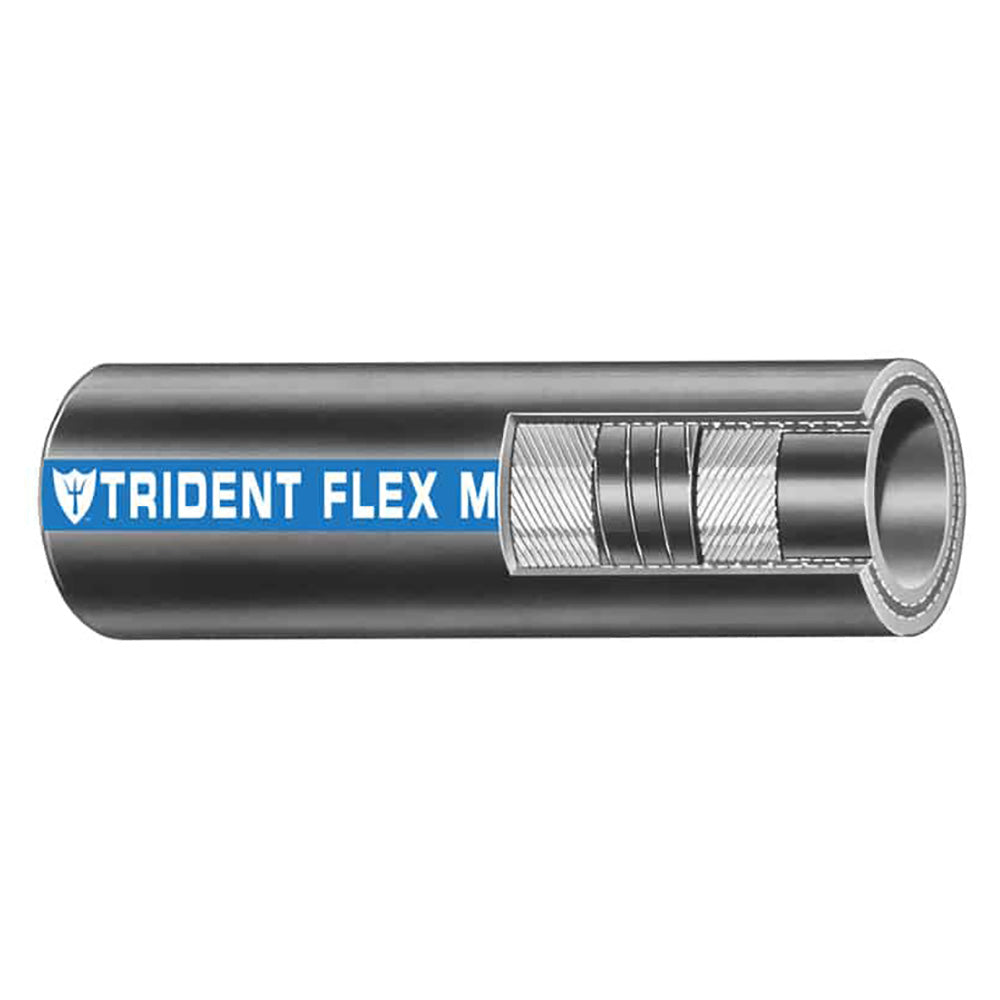

Trident Marine 3/4-Inch x 50-Foot Coil Flex Wet Exhaust and Water Hose - Black

3/4" x 50' Coil Flex Marine Wet Exhaust Water Hose - Black

Trident Flex wet exhaust hose for longer bent connections. In smaller I.D.s for engine intake, critical water, drain, scupper bilge sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250F (121C) Max.

Features:

• Extra heavy tube and cover with wire helix between 2 ply reinforcement provides excellent flexibility and bend radius
• Resists heat, ozone, exhaust, sani chemicals, panting and collapse
• Exceeds SAE J2006-R2, ABYC NMMA P-1 exhaust standards, and Lloyds Registry Type Approved

Application:

• Trident Flex wet exhaust hose for longer bent connections
• In smaller I.D.s for engine intake, critical water, drain, scupper bilge sanitation uses

Construction:

• Tube Cover: High temp EDPM rubber
• Color: Black with blue stripe
• Reinforcement: Multi-ply, high-tenacity polyester, steel helix
• Temperature Range: 250F (121C)
• Length: 50 (15.24m)

Specifications:

• Inner Diameter: (inch) 3/4" / (mm) 20
• Outer Diameter: (inch) 1.15" / (mm) 29
• Working Pressure: (Psi) 100 / (bar) 6.9
• Bend Radius: (inch) 1" / (mm) 25
• Weight: (Lb./50ft.) 23 / (Kg/m) 10.3

*Burst Pressure is 4 x Working Pressure

The Trident Marine 3/4-inch x 50-foot coil flex wet exhaust and water hose is engineered for reliable performance in marine applications requiring flexible, high-temperature water transfer. Crafted from durable high-temp EDPM rubber, this black hose features a blue stripe for easy identification and is designed to withstand demanding conditions on the water. Its multi-ply reinforcement with a steel helix provides excellent flexibility, allowing for longer bent connections essential in engine exhaust, intake, and sanitation systems. This hose resists heat, ozone, exhaust gases, sanitizing chemicals, and collapse, making it ideal for critical water, drain, scupper, and bilge applications. With a maximum temperature rating of 250°F (121°C), it exceeds industry standards including SAE J2006-R2, ABYC, NMMA P-1 exhaust standards, and Lloyd’s Register Type Approval, ensuring safety and durability for marine environments. The heavy-duty construction with an inner diameter of 3/4-inch and a reinforced outer diameter of 1.15 inches offers a working pressure of 100 psi, with a bend radius of just 1 inch for tight routing. Its length of 50 feet makes it suitable for extended runs, providing versatile use across various marine systems. This hose’s robust design, combined with its compliance with key industry standards, makes it a trusted choice for boat owners and marine technicians seeking a reliable, high-performance water and exhaust hose that can handle the rigors of marine life. The burst pressure is four times the working pressure, ensuring added safety margins in critical applications. Whether for engine intake, water transfer, or sanitation, the Trident Marine coil flex hose offers the flexibility, strength, and resistance needed for demanding marine environments. Designed and tested to meet rigorous standards, it is a dependable solution for professional and recreational boaters alike, ensuring your systems operate smoothly and safely.

Features:

• Extra heavy tube and cover with wire helix between 2 ply reinforcement provides excellent flexibility and bend radius

• Resists heat, ozone, exhaust, sanitizing chemicals, panting, and collapse

• Exceeds SAE J2006-R2, ABYC, NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved
