Trident Marine 3/8" x 50' Boxed Low Permeation Type A1-15 Fuel Line Hose - Black

Trident Marine 3/8" x 50' Boxed Low Permeation Type A1-15 Fuel Line Hose - Black

98796

$161.97 USD
$161.97 USD
Sale Sold out
Shipping

Out of stock
  • 30-Day Returns
  • Secure Checkout
  • Shipping Options at Checkout

Shipping & Delivery

Available shipping options, rates, and estimated delivery windows are shown at checkout. Tracking is emailed when available.

Returns & Refunds

Eligible items may be returned within 30 days of delivery. Items must be new, unused, uninstalled, and in original packaging. An RMA is required.

Installment options at checkout are provided by Shop Pay and its partners and are subject to eligibility. Options depend on your purchase amount and may require a credit check by the financing partner. Terms, rates, and eligibility are determined by the financing partner. For details, see the Shop Pay Installments terms during checkout.

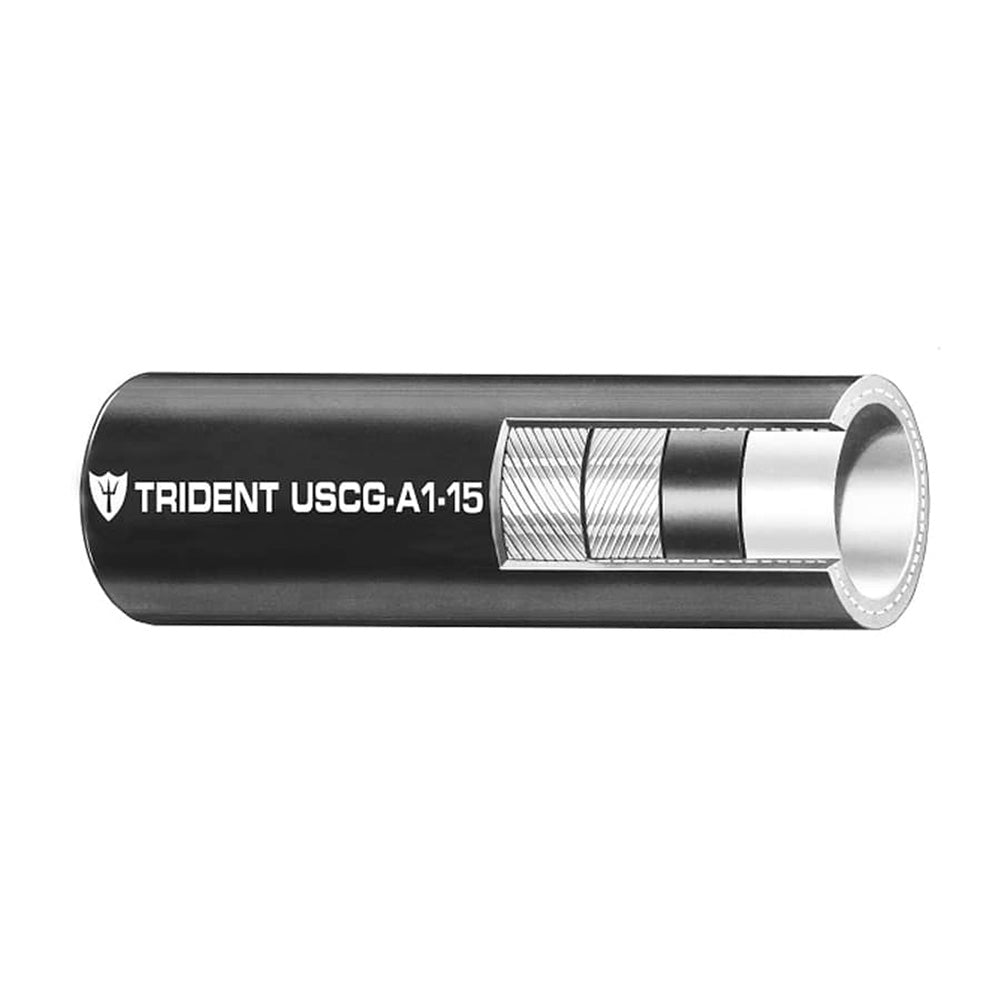

3/8" x 50' Boxed Low Permeation Type A1-15 Fuel Line Hose - Black

Trident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation, and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber.

Features:

  • Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone
  • Also provides excellent bend-ability
  • NMMA Type Accepted & CE certified

Application:

  • Marine Fuel Hose (distribution, return, vent and transfer)
  • For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

Construction:

  • Tube: Nylon Internal Barrier, NBR
  • Cover: NBR/PVC Blend
  • Reinforcement: Polyester 2 spiral
  • Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
  • Length: 50 ft. (15 m) Boxed

Specifications:

  • Inner Diameter: (inch) 3/8" / (mm) 9.50
  • Outer Diameter: (inch) 0.681 / (mm) 17.3
  • Burst Pressure: (psi) 400 / (mpa) 2.76
  • Working Pressure: (psi) 100 / (mpa) 0.69
  • Bend Radius: (inch) 2" / (mm) 50.8
  • Weight: (lb/100 ft.) 15.6 / (kg/m) 0.233
  • Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

*The #365 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10
