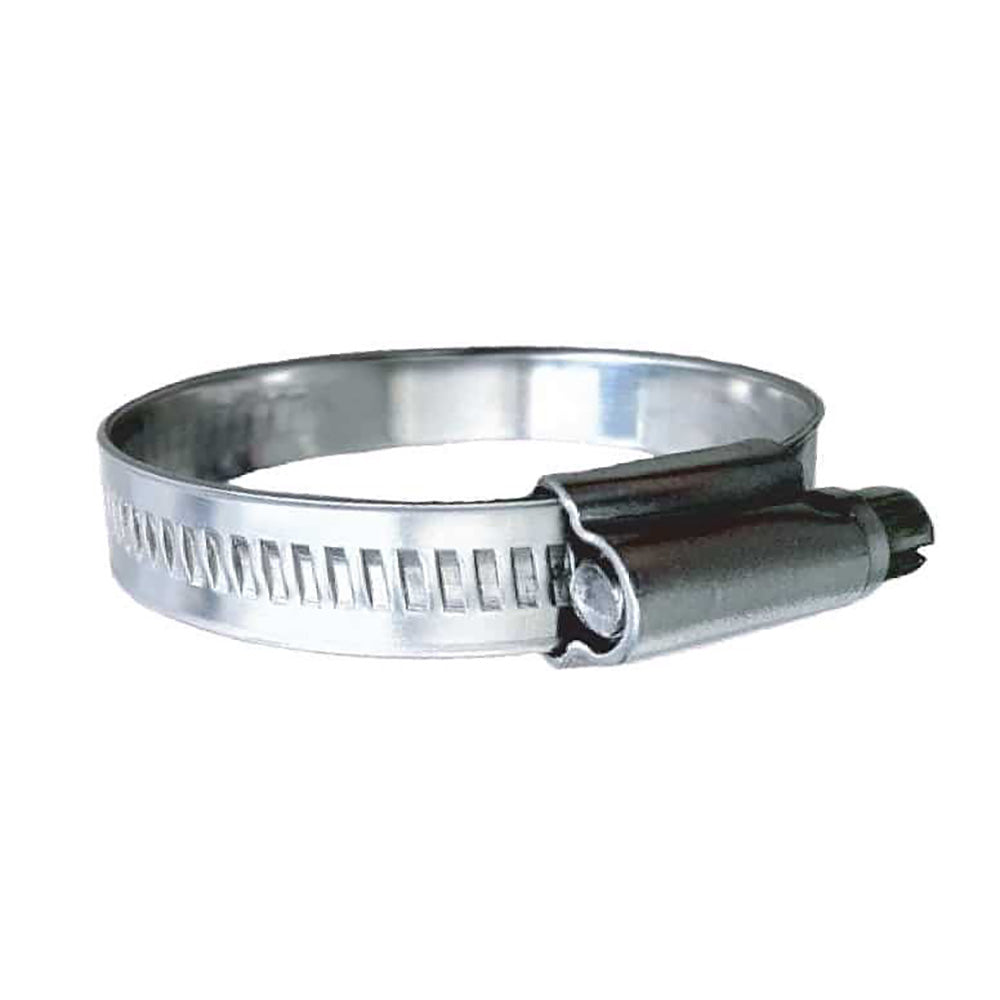

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band, SAE Size 32, 10-Pack for Marine and Industrial Applications

316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (2" - 2-9/16") Clamping Range - 10-Pack - SAE Size 32

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel HD NON-PERF Worm Gear Hose Clamp. The 11.7 mm (0.46) wide band is Non-Perforated and Smooth on the inside with Rolled Edges. This eliminates hose damage with increased clamping force. The High Strength, Compact, One Piece 16mm (0.63) wide Housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

• The screw head is 7mm
• Long service life and safety for most general-purpose hose applications and connections

Recommendations:

• Measure hose O.D. before selecting clamp size for proper fit
• Double clamp on each hose end for critical applications
• Consider using our #720 Series wide band 316 SS T-Bolt Clamps for larger I.D. hoses (i.e. Exhaust Hose, etc.)

Construction:

• Band Housing: 316 Stainless Steel 11.7 mm wide band 0.9mm thick
• Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

• SAE Size: 32
• Hose Inner Diameter: (inch) 1-3/4" - 2"
• Clamping Range: (inch) 2" - 2-9/16" / (mm) 50-65
• Recommended Torque Inch lbs: 45-60

The Trident Marine Part Number 710-2001 is a premium-grade, marine-certified hose clamp designed to deliver reliable, high-strength performance in demanding environments. Crafted from all AISI 316 stainless steel, this clamp offers exceptional corrosion resistance and durability for marine, industrial, and general-purpose hose connections. Its non-perforated, smooth inner band with rolled edges ensures a secure grip without damaging hoses, making it ideal for sensitive applications where hose integrity is essential. The 11.7 mm wide band provides a uniform clamping force, while the compact, one-piece 16 mm housing enhances strength and efficiency, resulting in one of the highest clamping force ratings among worm gear clamps. This makes the clamp suitable for both lightweight and heavy-duty hoses, such as exhaust or fuel lines, especially when a tight, dependable seal is critical. The screw head measures 7 mm, allowing for easy adjustment and installation with standard tools. Designed to fit hoses with an inner diameter of 1-3/4 inches to 2 inches, the clamp's clamping range spans from 2 to 2-9/16 inches, with a recommended torque of 45-60 inch-pounds for optimal security. For maximum safety in critical applications, double clamping is advised, and users should measure hose diameter prior to installation to ensure proper fit. Trident Marine's hose clamps conform to industry standards and are built to withstand harsh conditions, making them an excellent choice for marine engines, industrial machinery, and other demanding environments. For larger hoses, such as exhaust systems, consider using the Trident Marine #720 Series wide band T-bolt clamps. This 10-pack offers a cost-effective solution for multiple connections, ensuring long-lasting performance and peace of mind in your projects. As a Prop 65 compliant product, it meets safety standards for use in various applications, ensuring trust and reliability. Whether you’re repairing, maintaining, or installing new hoses, the Trident Marine 316 SS Worm Gear Clamp provides the strength, corrosion resistance, and precision needed for professional-grade results.

Features:

• Band Width: 11.7 mm (0.46 inches) smooth, non-perforated band with rolled edges to prevent hose damage

• Housing: High-strength, compact, one-piece 16 mm (0.63 inches) stainless steel design for maximum clamping force

• Screw Head: 7 mm screw head for easy installation and adjustment

• Material: Made from all AISI 316 stainless steel for superior corrosion resistance and durability

• Clamping Range:
