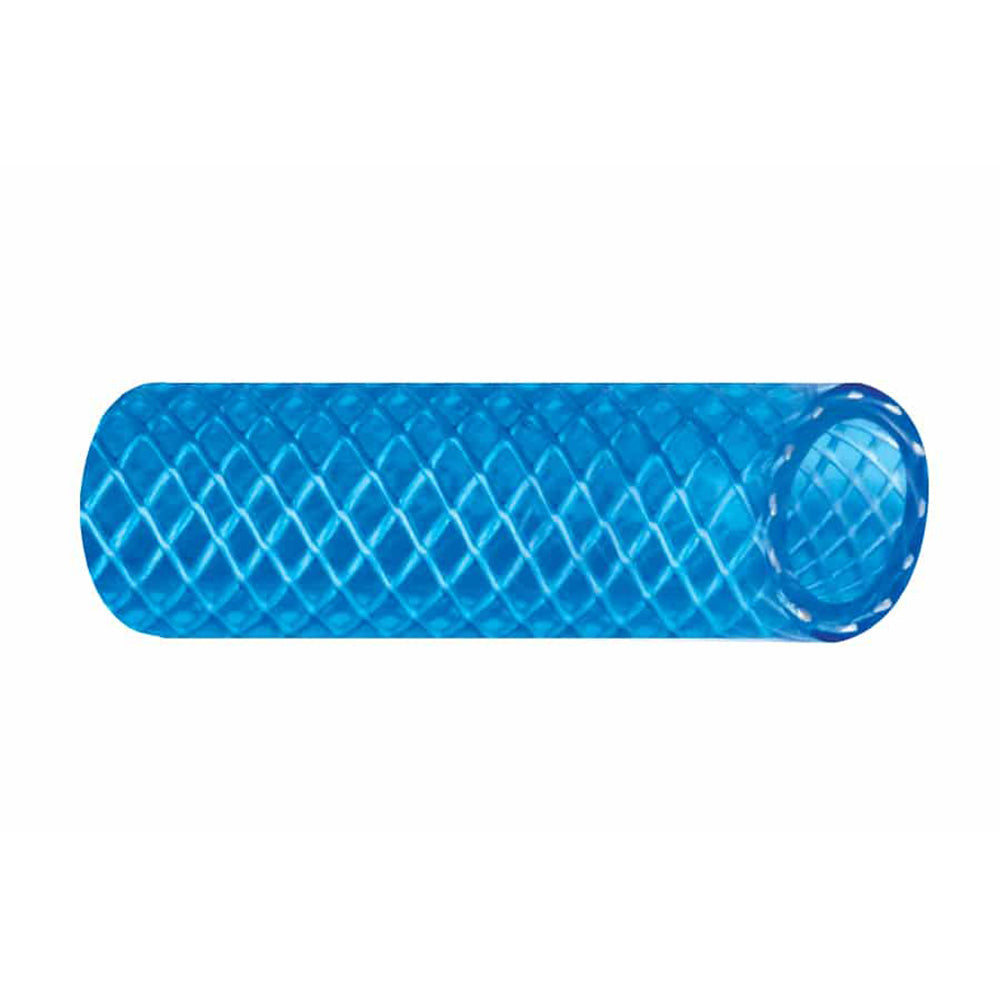

Trident Marine 5/8-Inch x 50-Foot Reinforced PVC Cold Water Hose – FDA-Approved Drinking Water Safe Blue Line

5/8" x 50' Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue

Trident 165 Series Blue - polyester reinforced PVC hose for "Cold Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4F (- 28C) and can handle pressures up to 250 psi (varies based on I.D size).

Features:

• The Blue cover allows for easy identification of "Cold Water" lines on your boat
• Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
• This hose is safe for use with drinking water

Application:

• Perfect for cold pressurized applications, water feed, drains, and vent lines

Construction:

• Tube Cover: Clear FDA tube
• Color: Blue Transparent
• Reinforcement: Polyester
• Temperature Range: -18F to 149F (-28C to 65C)
• Length: 50 (15.24m)

Specifications:

• Inner Diameter: (inch) 5/8" / (mm) 15.9
• Outer Diameter: (inch) .866 / (mm) 22.5
• Working Pressure: (PSI Vac In./Hg) 230 / (bar) 16
• Bend Radius: (inch) 1.26" / (mm) 32

*Burst Pressure is 4 x Working Pressure

Designed for reliable cold water transfer on boats and in marine environments, the Trident Marine 165 Series 5/8-inch x 50-foot reinforced PVC hose offers durability, safety, and flexibility. Constructed with a clear FDA-grade tube and a blue, translucent cover, this hose is easily identifiable for cold water applications. Its polyester reinforcement provides excellent abrasion resistance and sustained flexibility, ensuring long-term performance even under harsh operating conditions. The hose is rated for temperatures as low as -18.4°F (-28°C) and can handle pressures up to 250 psi, making it suitable for high-pressure water feed, drain, and vent lines on vessels and other marine setups. The blue color not only aids in quick identification but also enhances safety and organization aboard boats and in industrial settings.

Ideal for applications requiring safe drinking water transfer, this hose adheres to FDA standards, ensuring non-toxic, odorless, and tasteless delivery. Its 3-ply polyester reinforcement provides added durability without sacrificing flexibility, allowing for easy installation and maneuverability around tight spaces. The hose's construction features a smooth, clear FDA-approved inner tube that maintains water purity and prevents contamination, making it perfect for potable water systems. Its temperature range spans from -18°F to 149°F (-28°C to 65°C), accommodating a variety of marine and industrial water transfer needs.

The 50-foot length offers ample reach for diverse applications, while the reinforced design ensures dependable performance under pressure. The hose's outer diameter is 0.866 inches (22.5 mm), with an inner diameter of 5/8 inch (15.9 mm), and a recommended bend radius of 1.26 inches (32 mm) for optimal installation. With a burst pressure four times the working pressure, this hose provides a robust safety margin for demanding environments. The Trident Marine reinforced PVC hose is Prop 65 compliant, ensuring safety and environmental standards are met for peace of mind during use.

Features:

• Blue translucent cover for easy identification of cold water lines

• Made of FDA-grade, non-toxic, odorless, and tasteless PVC for potable water safety

• Polyester reinforcement offers excellent abrasion resistance and flexibility

• Rated for temperatures from -18°F to 149°F (-28°C to 65°C) and pressures up to 250 psi

• Ideal for cold pressurized applications including water feed, drains, and vent lines

• Durable 3-ply construction ensures long-lasting performance in harsh conditions

• Smooth inner tube maintains water purity and prevents contamination

• Reinforced design with a safety burst pressure four times the working pressure
