• Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 2-3/8" to 3", Hose O.D. - 2.75" to 3.625"
1 1

Trident Marine

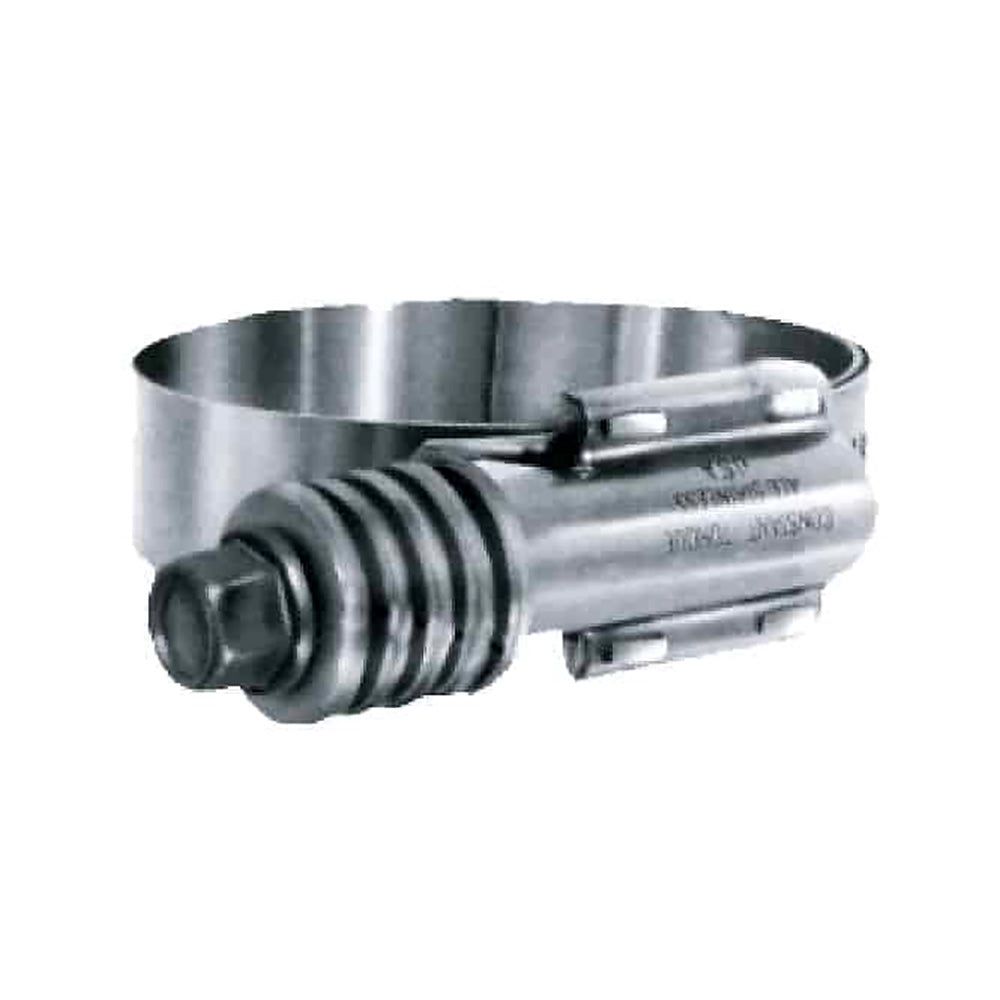

Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 2-3/8" to 3", Hose O.D. - 2.75" to 3.625"

Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 2-3/8" to 3", Hose O.D. - 2.75" to 3.625"

115303

$34.97 USD
$34.97 USD
Sale Sold out
Shipping

Low stock: 4 left
  • 30-Day Returns
  • Secure Checkout
  • Shipping Options at Checkout

Shipping & Delivery

Available shipping options, rates, and estimated delivery windows are shown at checkout. Tracking is emailed when available.

Returns & Refunds

Eligible items may be returned within 30 days of delivery. Items must be new, unused, uninstalled, and in original packaging. An RMA is required.

Installment options at checkout are provided by Shop Pay and its partners and are subject to eligibility. Options depend on your purchase amount and may require a credit check by the financing partner. Terms, rates, and eligibility are determined by the financing partner. For details, see the Shop Pay Installments terms during checkout.

Stainless Steel Constant Torque Clamp 5/8 Band, Hose I.D. - 2-3/8 to 3, Hose O.D. - 2.75 to 3.625

Virtually all rubber hose compresses (cold flow) after installation of clamping device, resulting in an almost immediate torque loss that can exceed 80% of installation torque. Similarly, virtually all metal connections expand as a system heats up, and then contracts as the system cools. Conventional worm gear, T-bolt, and other clamps are passive, in that expansion or contraction of components cannot be compensated for with out re-tightening or loosening the clamps. This clamping system is an active clamping mechanism, which monitors and then compensates for the changes by actually changing diameter through a unique worm gear Belleville assembly.

Specifications:

  • Hose I.D. - 2-3/8 to 3, Hose O.D. - 2.75 to 3.625
  • Recommend max. torque - smaller id. sizes up to 730-3000 - 30 to 70 in.-lbs, larger id. sizes above 730-3000 - 50 to 120 in.-lbs

Construction:

  • Band Housing: 304 Stainless Steel 5/8 Wide Band
  • Bellville Spring Washers Screw: 401 Stainless Steel
Truck Freight: No
Oversized: No
