Trident Marine

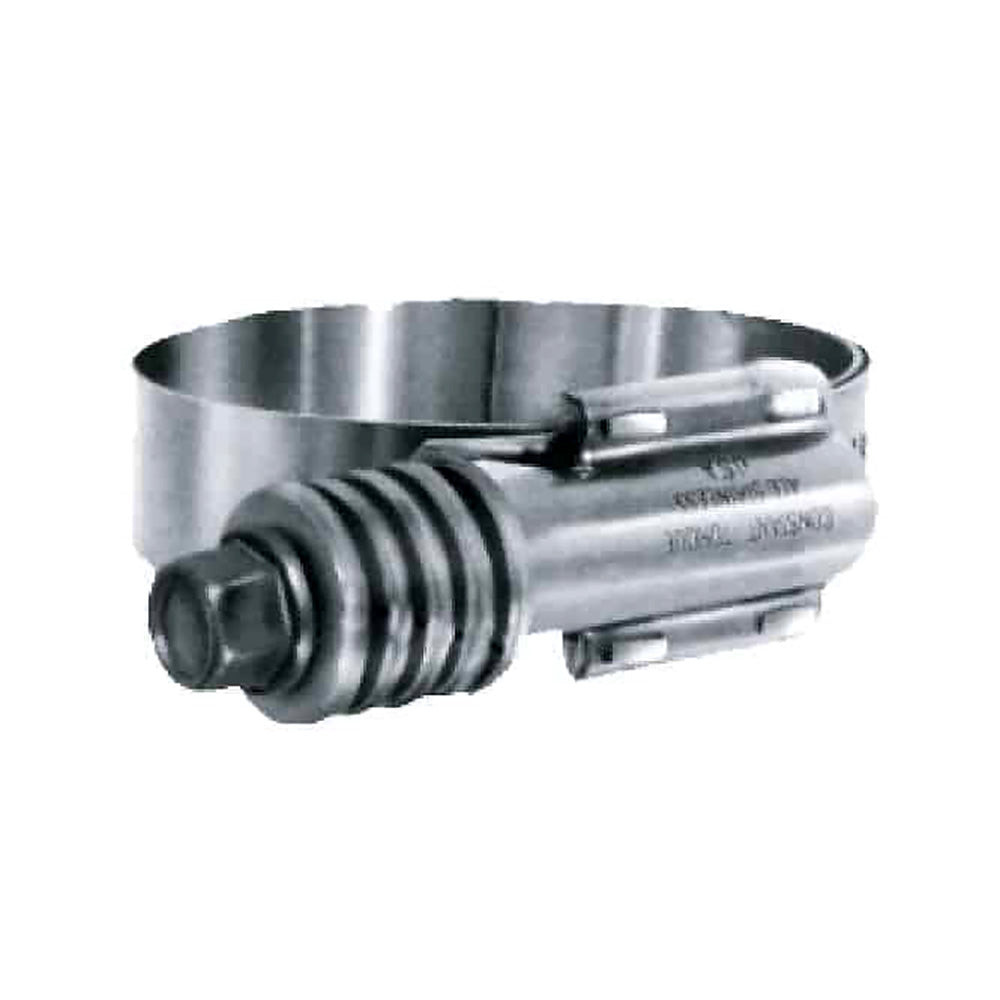

Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 6", Hose O.D. - 6.25" to 7.125"

Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 6", Hose O.D. - 6.25" to 7.125"

Store SKU: 115308

Regular price $36.97 USD
Regular price Sale price $36.97 USD
Sale Sold out
Always Free Shipping—No Minimum Order. Contiguous U.S. orders only. Alaska and Hawaii excluded.

8 in stock

Stainless Steel Constant Torque Clamp 5/8 Band, Hose I.D. - 6, Hose O.D. - 6.25 to 7.125

Virtually all rubber hose compresses (cold flow) after installation of clamping device, resulting in an almost immediate torque loss that can exceed 80% of installation torque. Similarly, virtually all metal connections expand as a system heats up, and then contracts as the system cools. Conventional worm gear, T-bolt, and other clamps are passive, in that expansion or contraction of components cannot be compensated for with out re-tightening or loosening the clamps. This clamping system is an active clamping mechanism, which monitors and then compensates for the changes by actually changing diameter through a unique worm gear Belleville assembly.

Specifications:

  • Hose I.D. - 6, Hose O.D. - 6.25 to 7.125
  • Recommend max. torque - smaller id. sizes up to 730-3000 - 30 to 70 in.-lbs, larger id. sizes above 730-3000 - 50 to 120 in.-lbs

Construction:

  • Band Housing: 304 Stainless Steel 5/8 Wide Band
  • Bellville Spring Washers Screw: 401 Stainless Steel
Truck Freight: No
Oversized: No
