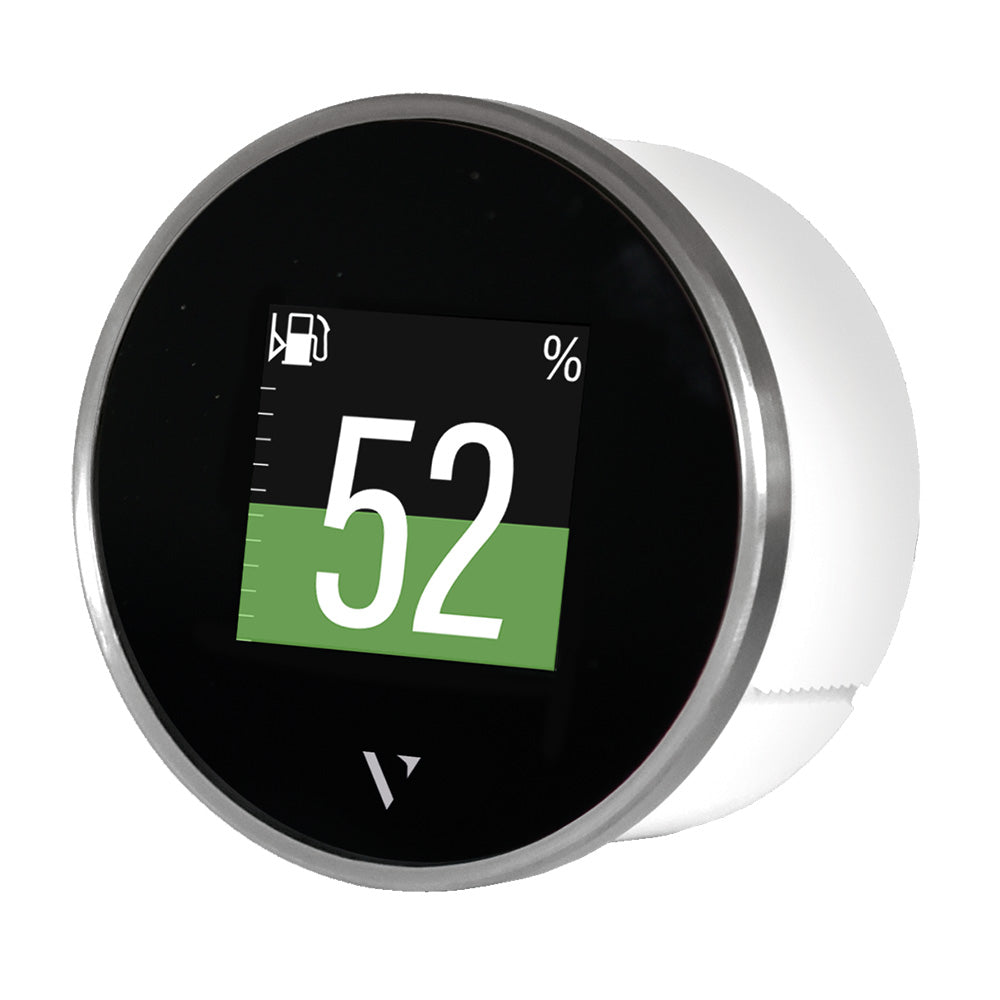

Veratron 52mm (2-1/16") VMH Flex NMEA 2000 Multifunction Gauge with Color TFT Display

52mm (2-1/16) VMH Flex Multifunction Gauge - NMEA2000

Small but powerful, the VMH Flex is the perfect compromise to display a large amount of boat data in a compact device. No matter if you are wearing gloves or if it is raining on your deck, the innovative laser touch button allows you to scroll up to 5 different screens.

Every screen can be freely customized with your most important information, and the setup including alarms is easily done with your smartphone just with a tap.

Features:

• Up to 5 scrollable screens in single or dual layout
• Functions - Rudder, Trim, Speed, Engine revolution, Engine hours, Fuel level, Fresh water level, Wastewater level, Coolant temperature, Oil temperature, Engine oil pressure, Transmission oil pressure, Boost pressure, Depth, Clock, Compass, Battery
• Innovative laser touch-button reliable in every practical condition
• NMEA 2000 connectivity
• 2x analog resistive inputs for direct sensor connections
• Embedded analog to NMEA 2000 converter
• LIN port for Intelligent Battery Sensor

Technical Specifications:

• Nominal Voltage - 12/24V
• Operating Voltage - 9-32V
• Protection Class - IPX7
• Dimensions - 60mm (outer), 52mm (mounting hole)
• Display - 1.44 sun-readable color TFT display
• Resolution - 125 x 125 pixels
• Analog Inputs - 1x resistive, 1x frequency
• Connectors - Tyco / Hirschmann MQS connector 8 pin / Micro-C M12 5Pin
• Digital Ports - NMEA2000, LIN bus
• Wireless Interface - NFC

In the Box:

• 1x VMH Flex NMEA 2000
• 1x 52 mm Spinlock Nut
• 1x Rubber Sealing Gasket
• 1x Wiring Harness NMEA 2000
• 1x Safety Instructions and Veratron Card

The Veratron VMH Flex 52mm (2-1/16") multifunction gauge is a compact yet versatile instrument designed to deliver a comprehensive array of boat data at a glance. Featuring a sun-readable 1.44-inch color TFT display, this gauge provides clear visibility in bright sunlight and offers an intuitive interface with an innovative laser touch button that remains reliable in all weather conditions, whether you're wearing gloves or facing rain on deck. Its sleek, small form factor makes it an excellent choice for maximizing dashboard space without sacrificing functionality.

Easily customizable, the VMH Flex supports up to five scrollable screens that can be configured to display the most critical information for your vessel. The device integrates a wide range of functions including rudder angle, trim, speed, engine revolutions, engine hours, fuel level, water and wastewater levels, coolant and oil temperatures, oil and transmission oil pressure, boost pressure, depth, battery status, and more. Each screen can be tailored to your specific needs, and setup, including alarm configuration, can be conveniently managed via your smartphone with a simple tap. This makes vessel monitoring straightforward and accessible, even while underway.

Connectivity is a key feature of the VMH Flex, with NMEA 2000 integration allowing seamless data sharing with other marine electronics. The gauge also features two analog resistive inputs for direct sensor connections, an embedded analog to NMEA 2000 converter, and a LIN port for intelligent battery sensors. Its robust protection class (IPX7) ensures durability in marine environments, and its flexible wiring options include Tyco / Hirschmann MQS connectors and Micro-C M12 ports. The device operates on 9-32V DC power, making it compatible with most marine electrical systems. Included in the package are the gauge, mounting nut, sealing gasket, wiring harness, safety instructions, and a Veratron informational card, providing everything needed for quick installation and reliable operation. Certified for marine use, the VMH Flex is Prop 65 compliant, ensuring safety and environmental standards are met, making it an ideal choice for serious boaters seeking advanced data management in a compact package.

Features:

• Up to 5 customizable, scrollable screens for comprehensive data display

• Functions include rudder angle, trim, speed, engine revolutions, hours, fuel and water levels, temperatures, pressures, depth, and battery status

• Innovative laser touch button provides reliable operation in all weather conditions

• NMEA 2000 connectivity for seamless marine data integration

• Two analog resistive inputs for direct sensor connections

• Embedded analog to NMEA 2000 converter simplifies wiring and setup

• LIN port supports intelligent battery sensor monitoring

• Sun-readable 1.44-inch color TFT display with high resolution

• Robust IPX7 protection class ensures durability in harsh marine environments

• Flexible wiring options with Tyco / Hirschmann MQS and Micro-C M12 connectors

• Operates on 9-32V DC power, suitable for most marine electrical systems

• Includes mounting hardware, wiring harness, and comprehensive safety instructions
