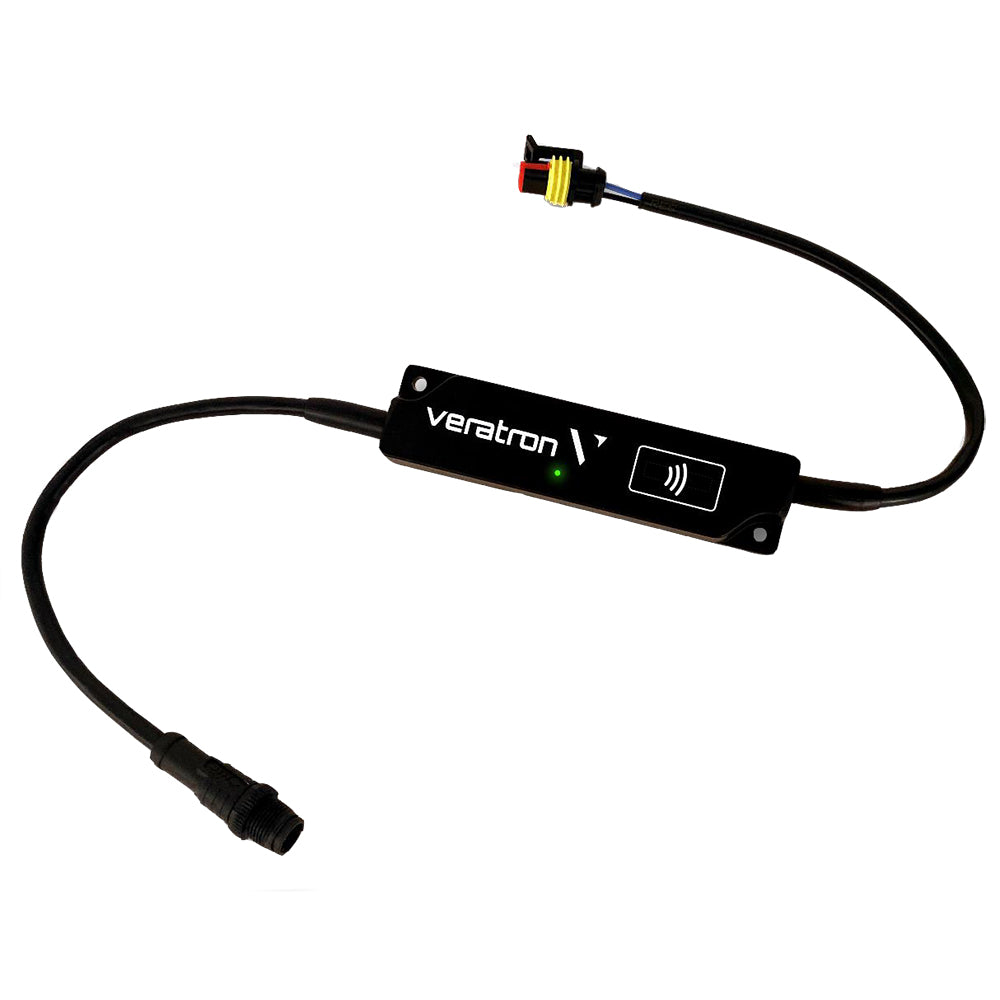

Veratron LinkUp Analog to NMEA 2000 Gateway – Easy Marine Sensor Conversion and Integration

LinkUp Analog to NMEA 2000 Gateway

The resistive-type LinkUp gateway provides an easy method to convert vessel and engine information to NMEA 2000.

Easily installed, the LinkUp Gateway replaces the original wiring, delivering power to both the LinkUp device and sensor from the NMEA 2000 backbone while still being complaint with the NMEA 2000 certification requirements.

Configuring the LinkUp Gateway is simple using a mobile device and the companion LinkUp Configuration App for Android or IOS.

Each device has a built-in passive NFC antenna, so the parameters of the sensors are wirelessly configured to type, instance and warning threshold on the mobile device which is then "tapped" against the LinkUp device for instant data download.

Features:

• User-friendly configuration through wireless interface and companion smartphone App
• Sensor Cable length - 25cm
• NMEA 2000 Cable length - 25 cm
• Tap to download parameters
• Mobile App for Android or IOS
• No power required to program
• No certification required
• Bi-directional communication, programming interface or data recovery

Supported Sensors:

• Fuel Level
• Oil/Boost Pressure
• Fresh/Waste Water Level
• Oil/Gear Oil/Coolant Temperature
• Trim Tabs
• Rudder Angle

Technical Specifications:

• Standard M12 NMEA 2000 plug
• LED Notification
• Operating Voltage - 6 - 16.5V
• Nominal Voltage - 12 V (from NMEA 2000 network)
• IPX7 Rated
• Sensor Plug - Superseal Female 2 Pin
• Counterpart Sensor Plug - - Superseal Male 2 Pin

*Sold as an Individual

The Veratron LinkUp Analog to NMEA 2000 Gateway (Part Number: B00042201) offers a streamlined solution for converting vessel and engine sensor data into NMEA 2000 format. Designed for ease of installation, this resistive-type gateway replaces original wiring, supplying power to both the device and connected sensors directly from the NMEA 2000 backbone while maintaining full compliance with NMEA 2000 certification standards. Its simple setup process is facilitated through a mobile device using the Veratron LinkUp Configuration App available for Android and iOS, allowing users to configure sensor parameters wirelessly with minimal effort. Each device incorporates a built-in passive NFC antenna, enabling quick wireless parameter setup—simply tap your mobile device against the gateway to download sensor configuration data instantly. The gateway supports a variety of sensors including fuel level, oil and boost pressure, water levels, temperature sensors, trim tabs, and rudder angle, making it a versatile tool for marine monitoring systems. It features bi-directional communication, enabling not only data transmission but also programming and data recovery, enhancing overall system flexibility. The device connects via a standard M12 NMEA 2000 plug and includes a 25 cm sensor cable and NMEA 2000 cable for straightforward installation. Its robust IPX7 rated enclosure ensures durability in marine environments, and it operates within a voltage range of 6 to 16.5 volts, drawing power from the NMEA 2000 network at 12 volts. Ideal for boat owners and marine professionals seeking a reliable, easy-to-use gateway, the Veratron LinkUp simplifies sensor integration and enhances vessel monitoring capabilities without requiring additional certification or complex wiring. The product is sold as an individual unit, with comprehensive support available through the manufacturer’s resources. Please refer to the provided owners manual for detailed installation and configuration instructions. This product is designed to meet the demands of modern marine systems, delivering dependable performance in a compact form factor, making it an essential component for enhancing vessel automation and data management systems.

Features:

• User-friendly configuration through wireless interface and companion smartphone App

• Sensor Cable length - 25cm

• NMEA 2000 Cable length - 25cm

• Tap to download parameters

• Mobile App for Android or IOS

• No power required to program

• No certification required

• Bi-directional communication, programming interface or data recovery
