Veratron
SKU:93698

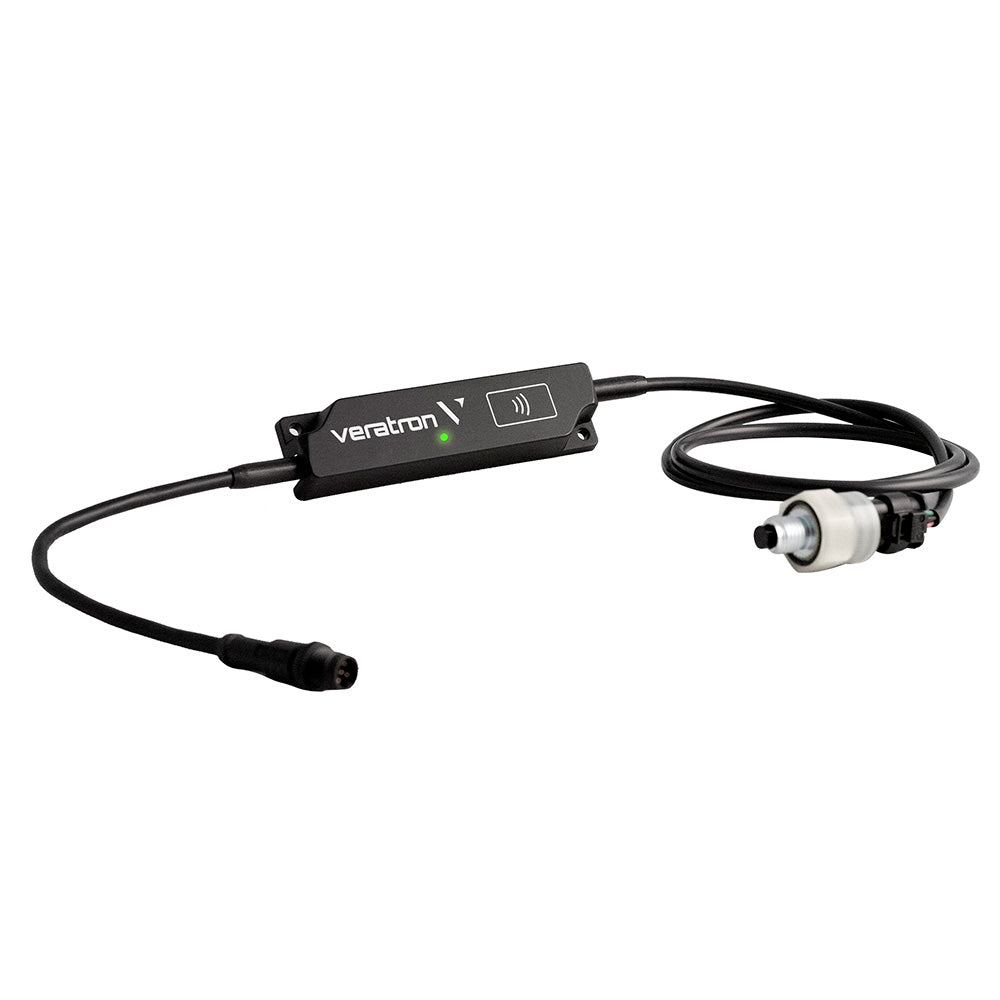

Veratron LinkUp Intelligent Temperature & Pressure Sensor – Combines Oil Temperature and Pressure Monitoring with NMEA 2000 Compatibility
Veratron LinkUp Intelligent Temperature & Pressure Sensor – Combines Oil Temperature and Pressure Monitoring with NMEA 2000 Compatibility
Regular price
$239.58 USD
Regular price
Sale price
$239.58 USD
Unit price
/
per
LinkUp Intelligent Temperature Pressure
This Sensor measures simultaneously the engine oil's temperature and pressure while providing the data to the LinkUp, which translates it to the NMEA 2000 standard.
Features:
- Interface to the new electronic 2-in-1 sensor
- Oil Temperature and Pressure in a single sensor
- Rugged and reliable design derived from the automotive field
- ASIC-controlled sensor
- PWM (Pulse Width Modulated) output to transmit both pressure and temperature
Technical Specifications:
- M12 mounting thread
- IP 69/K protection class
- 5V power feed provided by the LinkUp
- Temperature accuracy 1K in the 135 C 160 C range
- Pressure accuracy 0.2 bar (range 0.5 3 bar), 0.1 bar below and 0.3 bar above
- Temperature range: -40 C + 160 C
- Pressure range: 0.5 to 10.5 bar
- 1M cable length
The Veratron LinkUp Intelligent Temperature & Pressure Sensor (Part Number: B00070501) offers a comprehensive solution for monitoring engine oil conditions with precision and reliability. Designed for seamless integration, this sensor measures both oil temperature and pressure simultaneously, providing vital data to the LinkUp system which translates it into the NMEA 2000 network standard. Its robust construction, derived from automotive-grade components, ensures durability and consistent performance in demanding environments. Featuring an ASIC-controlled design and PWM output, it transmits real-time data efficiently, supporting enhanced engine diagnostics and maintenance planning. The sensor attaches via a standard M12 mounting thread and is rated IP 69/K for superior protection against dust, water, and harsh conditions. Operating within a temperature range of -40°F to 320°F and pressure range of 0.5 to 10.5 bar, it maintains high accuracy, with temperature precision of 1K in the 135°C to 160°C range and pressure accuracy of 0.2 bar within its specified range. The sensor is powered by a 5V feed supplied through the LinkUp system, and it includes a 1-meter cable for flexible installation. This product is ideal for marine, industrial, and automotive applications where reliable oil condition monitoring is critical. Please note, this product may not be returned to the original point of purchase; for issues or concerns, contact Veratron directly. For detailed installation and operation instructions, visit the manufacturer’s manual [here](https://productimageserver.com/literature/ownersManual/93698OM.pdf).
Features:
- Interface to the new electronic 2-in-1 sensor
- Oil temperature and pressure measured simultaneously in a single device
- Rugged, automotive-grade construction for durability and reliability
- ASIC-controlled sensor for accurate data transmission
- PWM output for efficient communication of pressure and temperature data
| Truck Freight: No |
| Oversized: No |
| Owners Manual Url: https://productimageserver.com/literature/ownersManual/93698OM.pdf |
