Veratron
SKU:76242

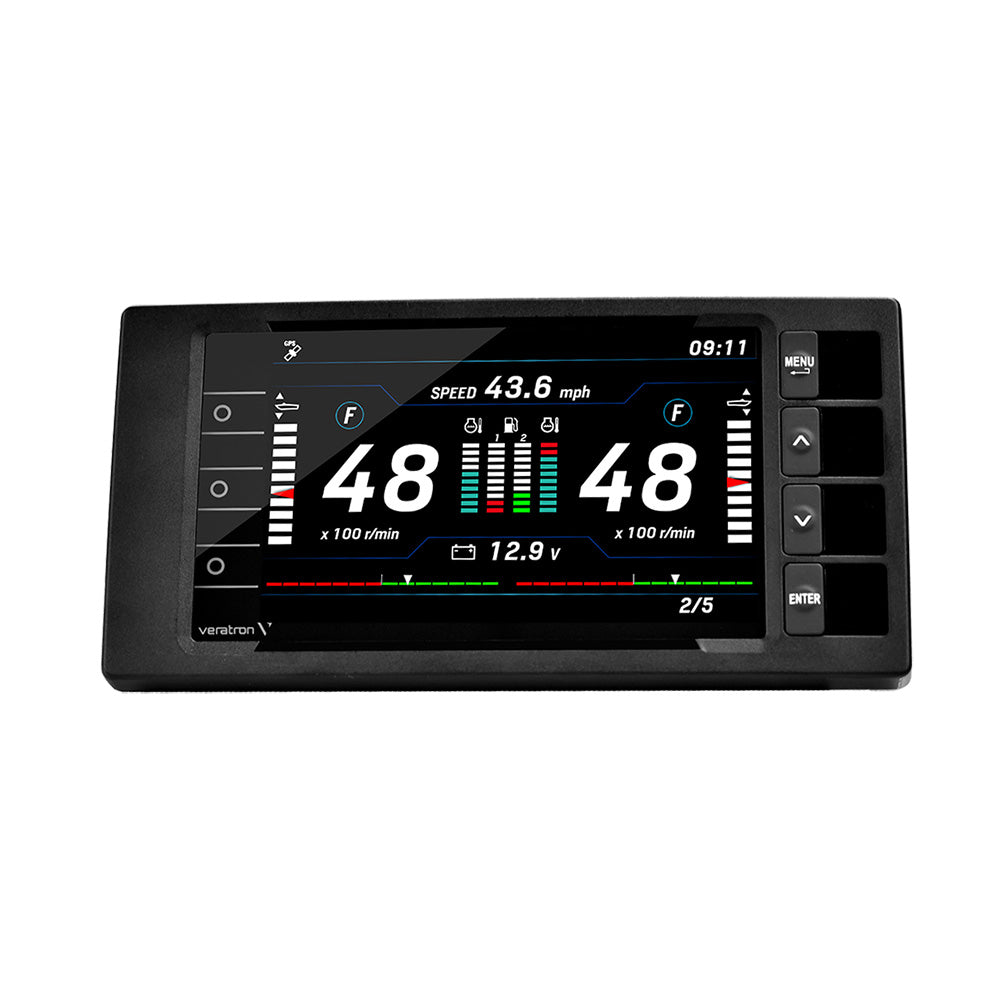

Veratron OceanLink 7-Inch NMEA 2000 Certified TFT Gateway – Marine Display with Touch Screen and Multiple Data Inputs
Veratron OceanLink 7-Inch NMEA 2000 Certified TFT Gateway – Marine Display with Touch Screen and Multiple Data Inputs
Regular price
$1,421.01 USD
Regular price
Sale price
$1,421.01 USD
Unit price
per
OceanLink 7" NMEA 2000 Certified TFT Gateway - Black
The new OceanLink 7" multifunction TFT Display features a 24-bit/16 m colors optically bonded display with transmissive layer technology for perfect readability even in direct sunlight. The TFT Display shows and distributes a wide array of data received from NMEA 2000 and J1939 CAN Bus systems and analog sensors directly connected to the display. Users can customize up to 40 data pages with single, double, treble, or quad grid layouts.
TFT Displays can be daisy-chained with other OceanLink gauges, displays, or NavControls using the unique VDO Marine Bus or directly connected to the NMEA 2000 backbone (optional adapter cable required) for simple installation on any yacht.
Features:
- Touch screen function
- Optically bonded mineral glass lens
- Front rear side protection rating IPX7
- 1x NMEA 2000 connector
- 2x J1939
- 6x Analog input
- 2x Frequency input
- 2x 420 mA
- 3x Digital input or 05 V
- 2x Alarm output
- 2x Video input
- 2x EasyLink data output
- 2x Programmable alarm output 500 mA
- Operating temperature range -20C/+70C
- 12/24V
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Veratron OceanLink 7" NMEA 2000 Certified TFT Gateway offers advanced marine data visualization for modern yachts and vessels. Featuring a vibrant 24-bit color display with optically bonded mineral glass, this multifunction TFT screen ensures excellent readability even in direct sunlight, making it ideal for demanding marine environments. The gateway seamlessly integrates with NMEA 2000 and J1939 CAN Bus systems, as well as analog sensors, providing real-time data distribution across your vessel's network. Users can customize up to 40 data pages with various grid layouts, enabling tailored information display for navigation, engine monitoring, or system diagnostics. The device's daisy-chain capability allows connection with other OceanLink gauges, displays, or NavControls via the VDO Marine Bus or directly to the NMEA 2000 backbone with an optional adapter cable, simplifying installation on any yacht or boat.
Features:
- Touch screen functionality for intuitive control
- Optically bonded mineral glass lens for durability and clarity
- IPX7 front and rear protection rating for water resistance
- Single NMEA 2000 connector for data integration
- Dual J1939 interfaces for expanded system connectivity
- Six analog inputs for sensor data collection
- Dual frequency inputs for precise measurements
- Two 420 mA current inputs for sensor compatibility
- Multiple digital and voltage inputs for versatile connections
- Dual alarm outputs for alert notifications
- Video inputs for integrating external cameras or sensors
- EasyLink data output channels for system communication
- Programmable alarm outputs with 500 mA capacity
- Operational in temperatures from -20°C to +70°C
- Supported on 12V and 24V electrical systems
