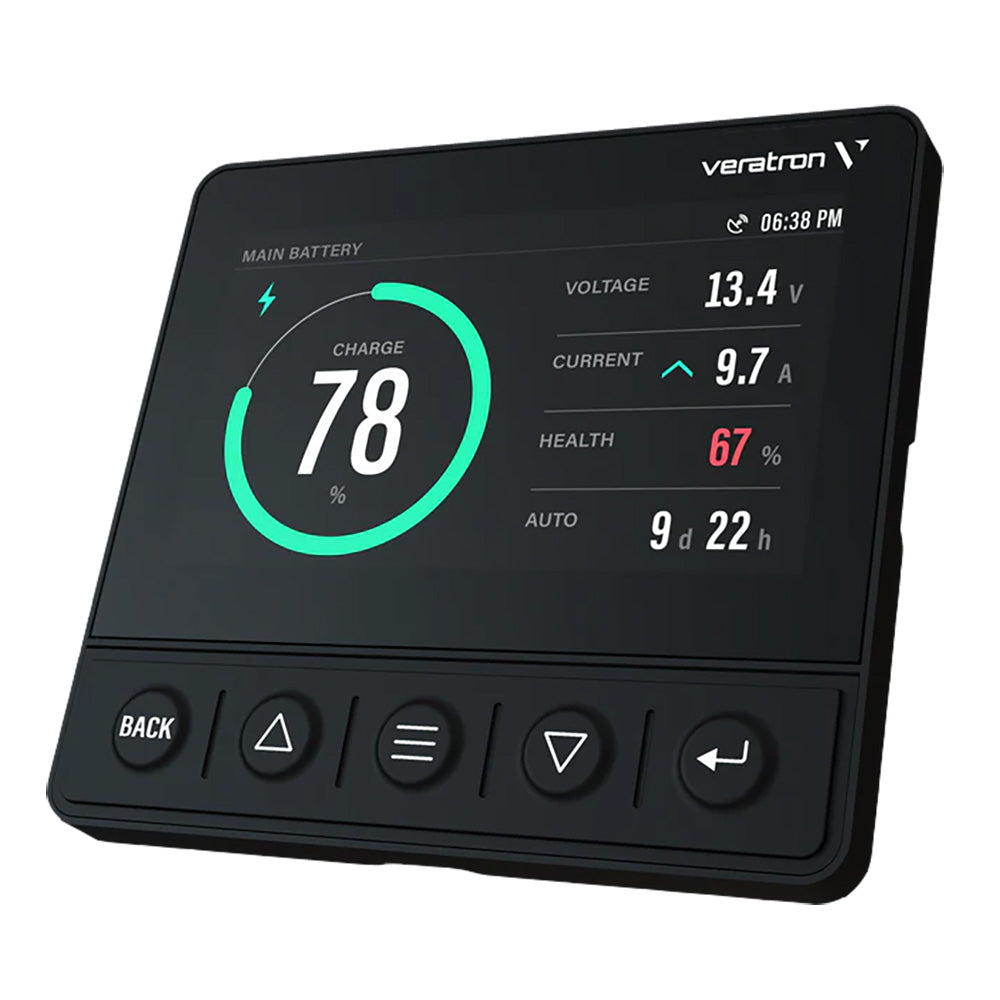

Veratron OL 43 Smart Marine Monitoring TFT Display – 4.3-Inch IPS Screen with NMEA 2000 & J1939 CAN Connectivity

OL 43 Smart Marine Monitoring TFT Display

Experience seamless integration and real-time monitoring with the OL 43. Whether youre tracking engines, batteries, tanks, or navigation data, this 4.3 optically bonded IPS TFT display ensures perfect readabilityeven under direct sunlight. With support for NMEA 2000 and J1939 CAN, plus analog inputs and HTML5-ready Ethernet, the OL 43 is your all-in-one solution for modern marine instrumentation.

The OL 43 Multifunction Display redefines clarity and control in marine environments. Featuring a 4.3 optically bonded IPS TFT screen with anti-glare mineral glass, it delivers brilliant visibility even in harsh conditions.

Designed for seamless integration, it supports NMEA 2000 and SAE J1939 CAN protocols, analog sensors, and Ethernet connectivity.

With lightning-fast startup, customizable multilingual GUI, and robust IPX7-rated housing, the OL 43 is built to perform. Whether monitoring engines, tanks, batteries, or navigation data, this display offers intuitive interfaces, graphical insights, and real-time alarms. Its compact 85mm round form factor and flame-retardant housing make installation simple and safe.

Features:

• IPS TFT display technology for great readability even in direct sunlight
• Optical bonded mineral glass lens with anti-glare coating
• Protection rating IPX7
• NMEA 2000 certified connectivity
• SAE J1939 CAN interface
• 4x Analog input for sensor connection
• Integrated NMEA 2000 converter
• Full engine diagnostic with programmable alarm output
• Reliable in high-temperature environments
• Installation in 85 mm panel cuts via spinlock

The Veratron OL 43 Smart Marine Monitoring TFT Display offers advanced real-time data visualization for modern marine environments. Featuring a 4.3-inch optically bonded IPS TFT screen with anti-glare mineral glass, this display ensures excellent visibility even under direct sunlight, making it ideal for demanding maritime conditions. Its integrated design supports NMEA 2000 and SAE J1939 CAN protocols, along with four analog inputs, providing comprehensive connectivity for engines, batteries, tanks, and navigation systems. The full-color graphical interface is customizable with a multilingual GUI, allowing users to tailor the display to their specific needs. Designed with a robust IPX7-rated housing, the OL 43 withstands harsh weather and high-temperature environments, ensuring reliable performance at sea or on land. Its compact 85mm round form factor simplifies installation in tight spaces, and the flame-retardant housing adds an extra layer of safety. The display also features an integrated NMEA 2000 converter and full engine diagnostics with programmable alarms, providing critical insights and alerts to prevent system failures. Whether monitoring vital engine parameters or navigation data, the OL 43 delivers precise, real-time information in a durable, easy-to-read package that enhances vessel management and safety.

Features:

• IPS TFT display technology for excellent readability in direct sunlight

• Optical bonded mineral glass lens with anti-glare coating

• Protection rating IPX7 for water resistance

• NMEA 2000 certified connectivity for marine data integration

• SAE J1939 CAN interface for advanced communication

• Four analog inputs for sensor connections

• Integrated NMEA 2000 converter for seamless data exchange

• Full engine diagnostics with programmable alarm outputs

• Designed for high-temperature environments

• Easy installation with 85mm panel cut compatibility using spinlock
