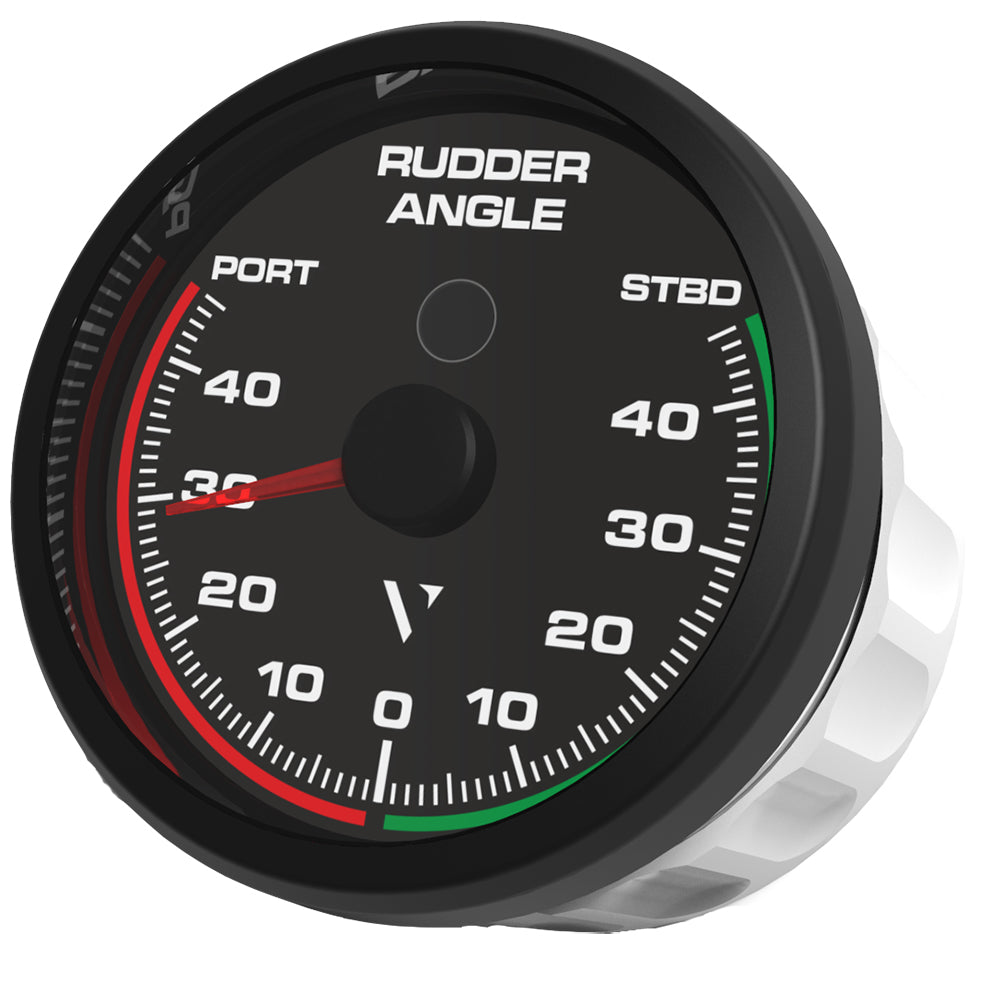

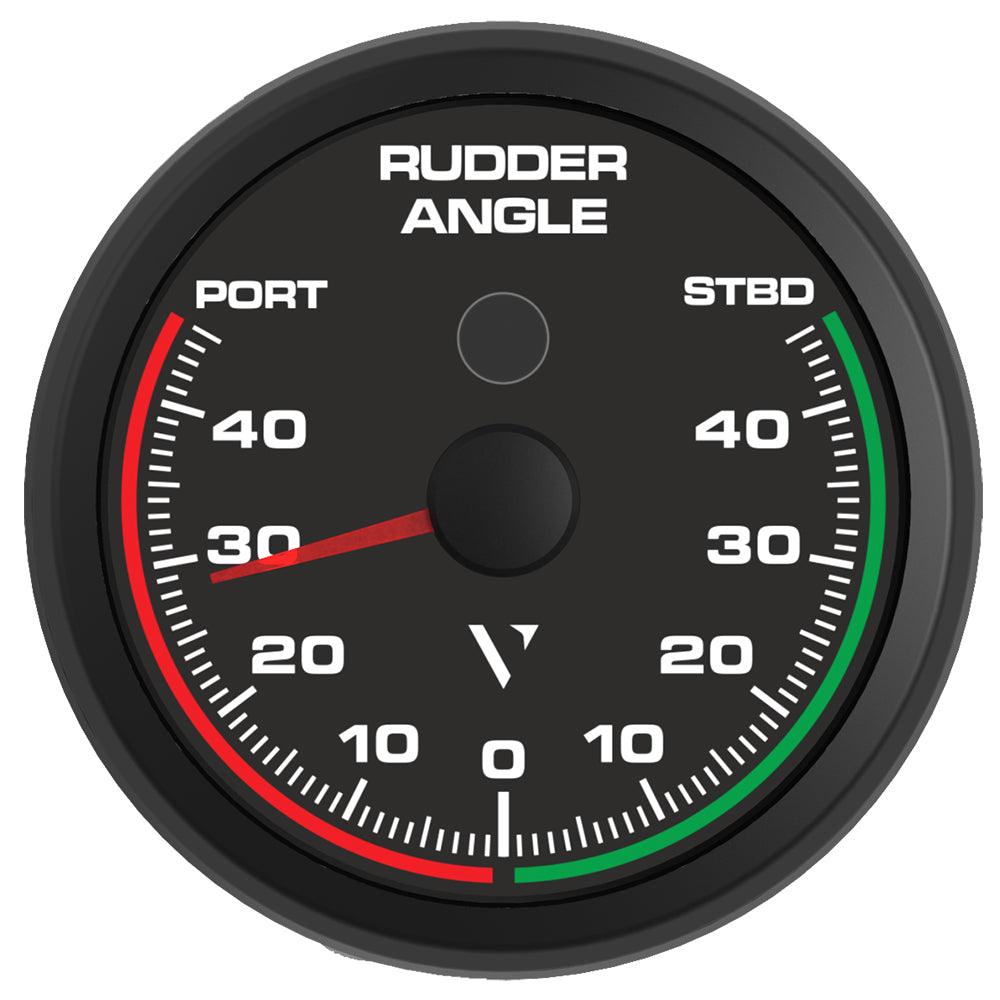

Professional 85MM (3-3/8") Rudder Angle Indicator for NMEA 0183
Specially designed to fit into the standard 85mm panel cut, the Professional Rudder Angle Indicator is developed to suit commercial applications thanks to the embedded NMEA 0183 transceiver - which makes it operable with most of the professional autopilots out in the field - and the large 270 dial scale and Red illumination which makes it well readable and accurate in the indication.
It supports both 12V and 24V systems, and it is designed to resist the harshest environment thanks to its extended operating temperature from -30C to +80C and IPX7 protection class.
Able to support the analogue 3-180 Ohm and 0-5V rudder sensors, the Professional Rudder Angle Indicator also repeats the rudder angle data via NMEA 0183 to multiple gauges connected in series to it.
The embedded infrared (IR) pushbutton allows for a user-friendly fine tuning of the predefined calibration.
Features:
- Designed for NMEA 0183
- Easy programing and installation
Technical Specifications:
- Operating Voltage - 8 to 32 V
- Protection Class - IP6K7
- Illumination - Red LED
- Dial - Black w/graphics
- Pointer - Red Illuminated
- Lens - Plastic Double Lens (anti-reflective)
- Operating Temp. - -40C to 115C
- Connector - Molex MX150 - 12 pin
In the Box:
- Gauge
- Wire Harness
- Mounting Spinlock
- Safety Instructions
*Sold as an Individual
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Veratron Professional 85mm Rudder Angle Indicator for NMEA 0183 is designed for commercial marine applications requiring clear, accurate rudder position monitoring. Built to fit a standard 85mm panel cut, this gauge supports NMEA 0183 connectivity and works with compatible professional autopilot systems. Its large 270-degree dial, red illumination, and illuminated pointer make rudder angle information easy to read at a glance.
Compatible with 12-volt and 24-volt electrical systems, the Veratron Professional Rudder Angle Indicator accepts analog 3–180 ohm and 0–5V rudder sensors. It can also repeat rudder angle data through NMEA 0183 to multiple gauges connected in series, making it suitable for installations that require shared rudder information. An integrated infrared pushbutton supports user-friendly fine tuning of the predefined calibration for more precise setup.
The gauge is built for demanding marine environments with IP6K7 protection and a broad operating temperature range of -40°C to 115°C. A plastic double lens with anti-reflective treatment helps maintain legibility, while the black dial with graphics and red LED illumination provide a clear, professional appearance. The included wire harness, mounting spinlock, and safety instructions support straightforward installation.
Key Features:
-
NMEA 0183 connectivity: Designed for use with compatible professional autopilot and marine instrumentation systems.
-
85mm panel fit: Designed to fit a standard 85mm panel cut for streamlined gauge installation.
-
Broad sensor support: Accepts analog 3–180 ohm and 0–5V rudder sensors.
-
Series data repetition: Repeats rudder angle data via NMEA 0183 to multiple connected gauges.
-
Clear illuminated display: Features a black dial, 270-degree scale, red LED illumination, and red illuminated pointer.
-
Marine-ready construction: IP6K7 protection and operation across a temperature range of -40°C to 115°C.
Product Details:
-
Brand: Veratron
-
Part number: B00067401
-
Gauge type: Rudder angle indicator
-
Operating voltage: 8–32 volts
-
Protection class: IP6K7
-
Illumination: Red LED
-
Dial: Black with graphics
-
Pointer: Red illuminated
-
Lens: Plastic double lens with anti-reflective treatment
-
Connector: Molex MX150, 12-pin
-
Included: Gauge, wire harness, mounting spinlock, and safety instructions
-
Quantity: Sold individually
Choose the Veratron Professional Rudder Angle Indicator for dependable, easy-to-read rudder monitoring in compatible NMEA 0183 marine installations.
