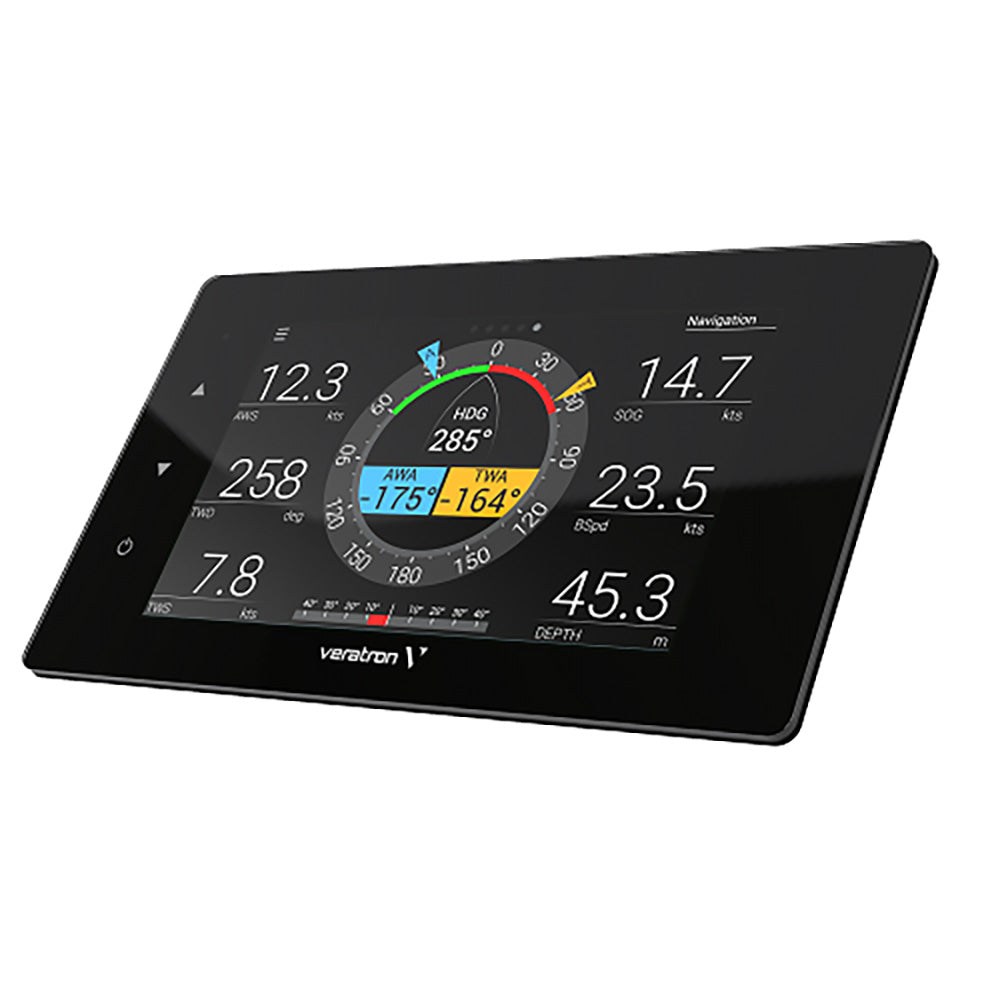

VMH 70 7" Sunlight Readable IPS TFT Touchscreen Display
The best-in-class VMH 70 display is designed to manage large amounts of complex data, and thanks to its real-time operating system it ensures full control of vital engine information immediately after power up.
Easily configured to display information from up to four engines when connected to NMEA2000 or two engines via J1939 or analog inputs simultaneously, it has a large possible setting. This allows users to group similar items such as single or dual engines, battery performance, fuel, water, waste, tank level, rudder and trim, onboard systems, navigation, and weather if desired.
The device has an integrated light sensor that adjusts for easy reading without eye strain, no matter how bright or dark the conditions and two camera inputs allow one to control the engine compartment during navigation and keep an eye on the main deck while maneuvering.
The embedded NMEA 2000 gateway brings all the sensor readings and alarms to your external multi-functional display, saving the cost of an additional converter.
Features:
- Veratron VMH premium instruments series
- 7" sun-readable IPS TFT touchscreen display
- Slim panel installation profile
- Mineral glass front lens
- Reliably operating in high-temperature environments
- IPX7 protection rating (exposed device)
- NMEA 2000 certified
- Fully configurable analog inputs for direct sensor connections with NMEA 2000 gateway
- Customizable startup screen
- Dual SAE J1939 CAN ports
- Easily customizable GUI screens
Technical Specifications:
- Nominal Voltage - 12/24v
- Operating Voltage - 9-32v
- Housing - Aluminum case, mineral glass front lens
- Mounting - Front panel mount via mounting kit
- Connectors - 2x Molex MX-150, 12 pins, 1x DeviceNet M12, 5 pins (NMEA 2000), 2x TE SuperSeal 1.5, 3 pins (EasyLink), 1x M12, 4 pins (Video)
- Compliance - CE, UKCA, Reach, RoHS
In the Box:
- VMH 70 Display
- Sun Cover
- Panel mounting kit
- Engine 1 power and data cable
- Engine 2 data cable
- EasyLink extension cable
*Sold as an Individual
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Veratron VMH 70 7-Inch Sunlight-Readable IPS TFT Touchscreen Display delivers a clear, configurable interface for monitoring critical marine engine and onboard system information. Designed for boat owners, captains, and marine technicians, this premium display supports complex data management with fast access to essential readings immediately after startup.
The VMH 70 can be configured to display information from up to four engines through NMEA 2000 or two engines through J1939 or analog inputs. Customizable screens can organize engine data, battery performance, fuel, water, waste, tank levels, rudder and trim, onboard systems, navigation, and weather information according to the vessel’s monitoring needs. An integrated light sensor automatically adjusts the display for easier viewing in changing lighting conditions, while two video inputs support monitoring areas such as the engine compartment or main deck.
With an integrated NMEA 2000 gateway, the Veratron VMH 70 can bring sensor readings and alarms to an external multifunction display without requiring a separate converter. Its slim front-panel installation profile, aluminum housing, mineral glass front lens, and IPX7 protection rating make it suited for marine helm and control-panel applications. The display also includes dual SAE J1939 CAN ports, customizable GUI screens, a customizable startup screen, and fully configurable analog inputs for direct sensor connections.
Key Features:
-
7-inch sunlight-readable IPS TFT touchscreen: Provides a clear interface for viewing marine engine and vessel system information.
-
Multi-engine monitoring: Supports data from up to four engines through NMEA 2000 or two engines through J1939 or analog inputs.
-
Integrated NMEA 2000 gateway: Sends sensor readings and alarms to an external multifunction display.
-
Dual video inputs: Supports monitoring of the engine compartment, main deck, or other onboard camera views.
-
Configurable display interface: Customizable GUI screens and startup screen allow information to be arranged for the vessel’s needs.
-
Marine-ready construction: Includes an aluminum case, mineral glass front lens, IPX7 protection rating, and front-panel mounting.
Product Details:
-
Brand: Veratron
-
Series: VMH premium instruments
-
Part number: B00129201
-
Nominal voltage: 12/24 volts
-
Operating voltage: 9–32 volts
-
Housing: Aluminum case with mineral glass front lens
-
Mounting: Front-panel mount via mounting kit
-
Connectivity: NMEA 2000, dual SAE J1939 CAN ports, configurable analog inputs, EasyLink, and dual video inputs
-
Compliance: CE, UKCA, REACH, and RoHS
-
Included: VMH 70 display, sun cover, panel mounting kit, engine 1 power and data cable, engine 2 data cable, and EasyLink extension cable
-
Quantity: Sold individually
Choose the Veratron VMH 70 for a configurable marine touchscreen display that brings engine, vessel, alarm, and onboard system information together in one streamlined interface.
Return Information: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
