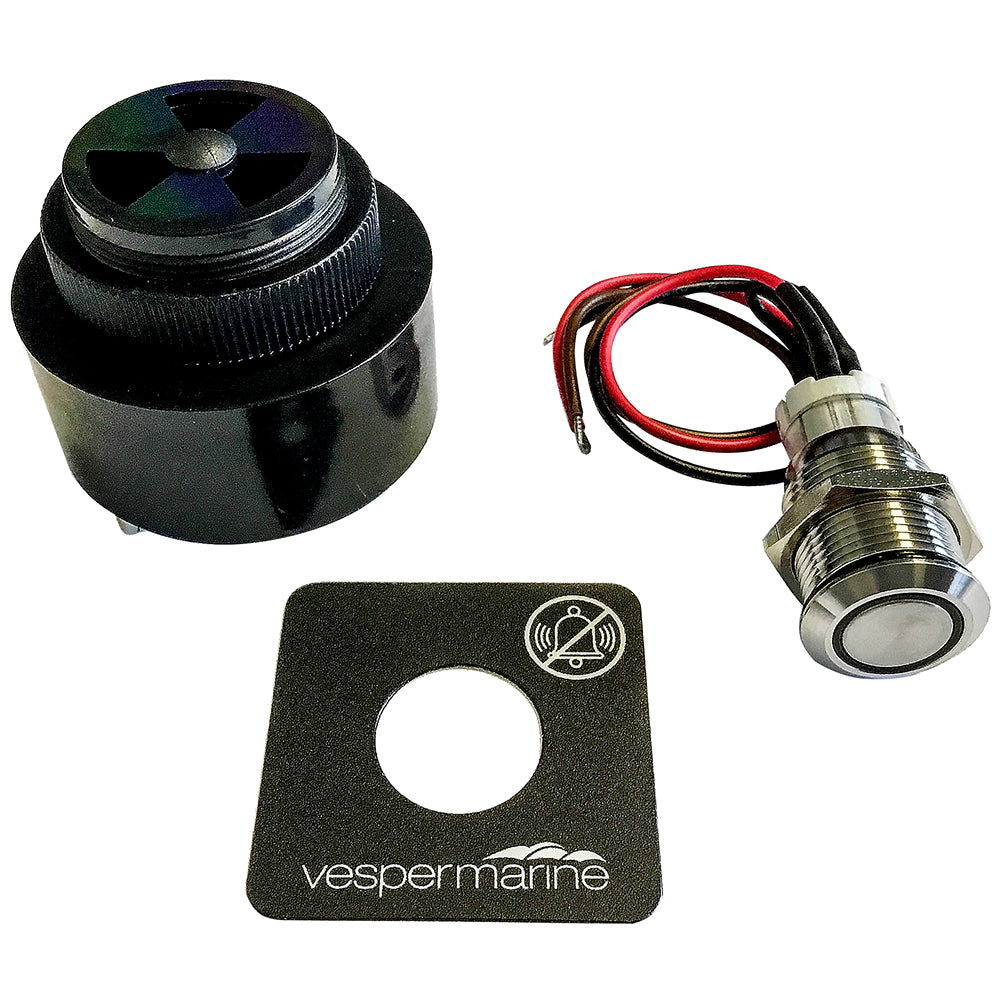

Vesper External smartAIS Alarm and Mute Switch Kit for WatchMate XB-8000

External smartAIS Alarm Mute Switch Kit for WatchMate XB-8000

The WatchMate XB-8000 smartAIS has the ability to trigger an external alarm that can be mounted anywhere onboard. If the XB-8000 detects a risk situation due to a potential collision, anchor drag, or a MOB activation, it alerts you with an alarm on your mobile device. It simultaneously sounds the external alarm which operates even if your mobile device is turned off.

The alarm is designed to be easily mounted and can be connected directly to the XB-8000 without the need for external relays or other components. By simply rotating the sound output vane you can control the volume level.

It is easily configured to make a steady continuous or pulsing tone like a truck backup alarm. It is heavy-duty and very robust. Its terminals are via screw down or you can use 6.35mm (1/4") quick disconnects.

This alarm can be used with both 12 and 24 VDC systems. It also has reverse polarity protection to prevent damage due to incorrect wiring.

Mute Switch for XB-8000

The Switch is used to mute the Alarm. Its 304 stainless steel body is durable and waterproof making it ideal for mounting both internally or externally. It is designed to be used with 12 and 24 VDC systems.

Alarm Specifications:

• Rated voltage: 12-32 VDC (reverse polarity protected)
• Maximum voltage: 32 VDC
• Maximum current: 35 mA
• Frequency: 2.9 kHz (+/- 0.5)
• Configuration: Makes either a steady or pulsed sound (choose S or P terminal)
• Sound pressure: 85 steady, 80 pulsed dBA/30cm
• Volume adjustment: Twist front vane holes to closed to reduce volume
• Pulse rate: 0.8 - 1.2 pulse/sec
• Size: Diameter: 43.5mm (1 3/4"), Height: 34.5mm (1 3/8")
• Mounting hole: 29mm (1 3/16")

Switch Specifications:

• Voltage Range:10-32 VDC
• LED Color: Blue
• Button Body: 304 Stainless Steel
• Contact Materia: lSilver Alloy
• Cable:150mm (6) Tinned
• Panel Thickness: 1 10mm
• Operating Temp: -20C +55C
• Insulation Resistance: 1000M
• Contact Resistance: 50m
• Degree of Protection: IP65

Enhance your marine safety system with the Vesper External smartAIS Alarm and Mute Switch Kit, designed specifically for the WatchMate XB-8000. This robust external alarm system provides an additional layer of security by alerting you to critical risks such as potential collisions, anchor drag, or man-overboard situations, even when your mobile device is turned off. The alarm can be mounted anywhere onboard, offering flexible placement options, and connects directly to the XB-8000 without the need for external relays or additional components. Its adjustable sound output vane allows you to control the volume easily, from a steady tone to a pulsing alarm similar to a truck backup siren, ensuring you are promptly notified of hazards in various situations. Made from heavy-duty, durable materials, the alarm operates seamlessly with both 12V and 24V DC systems and features reverse polarity protection to prevent wiring damage. The included mute switch, crafted from stainless steel for durability and waterproofing, allows you to silence the alarm effortlessly, making it suitable for both internal and external mounting. The switch’s blue LED indicator provides clear status visibility, and its rugged design ensures reliable performance in harsh marine environments. The alarm's specifications include an operating voltage range of 12 to 32 VDC, a sound pressure level of up to 85 dBA at 30cm, and a pulse rate adjustable between 0.8 to 1.2 pulses per second. The compact design features a 1 3/4-inch diameter and just over an inch in height, making it easy to install in tight spaces. This kit is an essential addition for serious boaters looking to maximize safety and situational awareness while navigating or at anchor. With Prop 65 compliance, the Vesper smartAIS Alarm & Mute Switch Kit ensures safety and peace of mind during your marine adventures, providing reliable, loud alerts and convenient control at your fingertips.

Features:

• External alarm with adjustable volume: Easily control sound levels with a twist of the front vane.

• Universal compatibility: Operates on 12V and 24V DC systems with reverse polarity protection.

• Heavy-duty construction: Made from durable materials suitable for harsh marine environments, including waterproof stainless steel switch.

• Configurable alarm tone: Choose between steady or pulsed sound to suit your alert preferences.

• Flexible mounting options: Can be installed internally or externally with mounting hole compatibility.

• Mute switch: Facilitates quick silencing of alarms with a waterproof, stainless steel button featuring a blue LED indicator.

• Compact design: Small footprint for easy installation in confined spaces, with robust terminal connections.

• Safety compliance: Meets Prop 65 standards, ensuring safe usage onboard.
