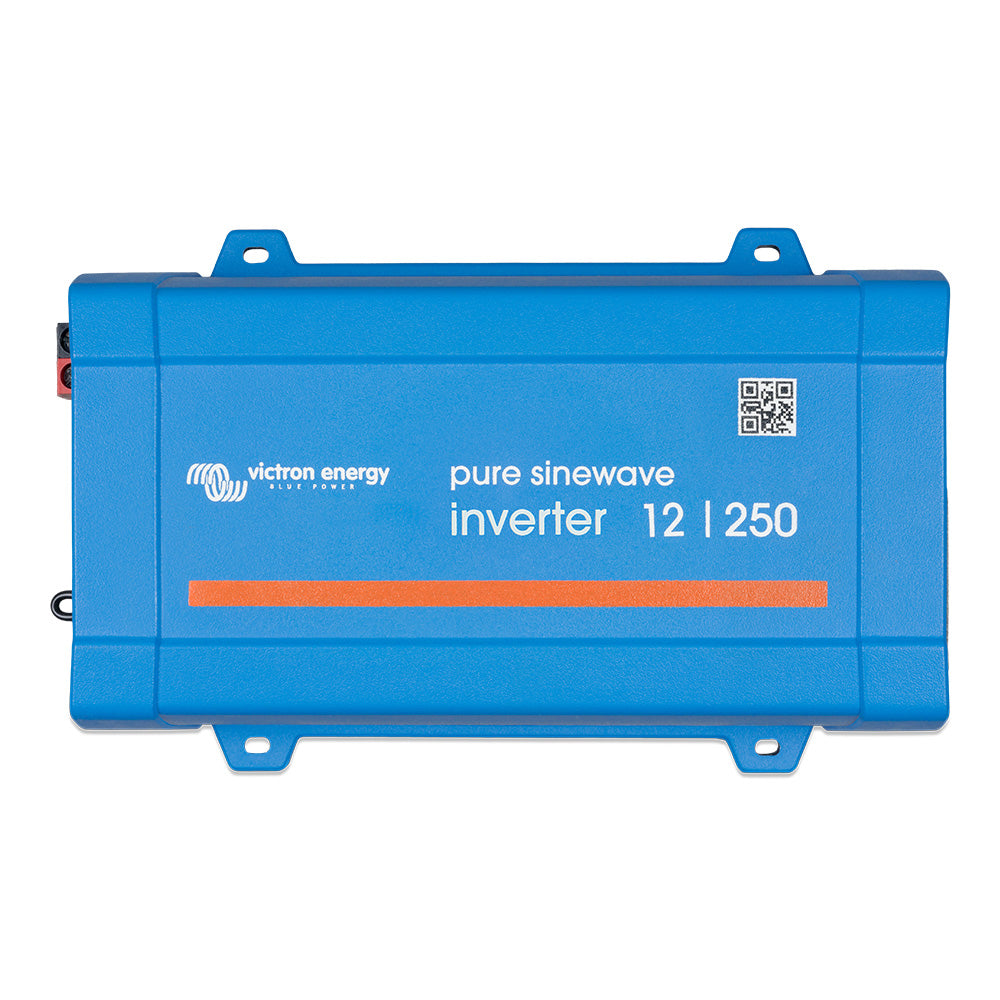

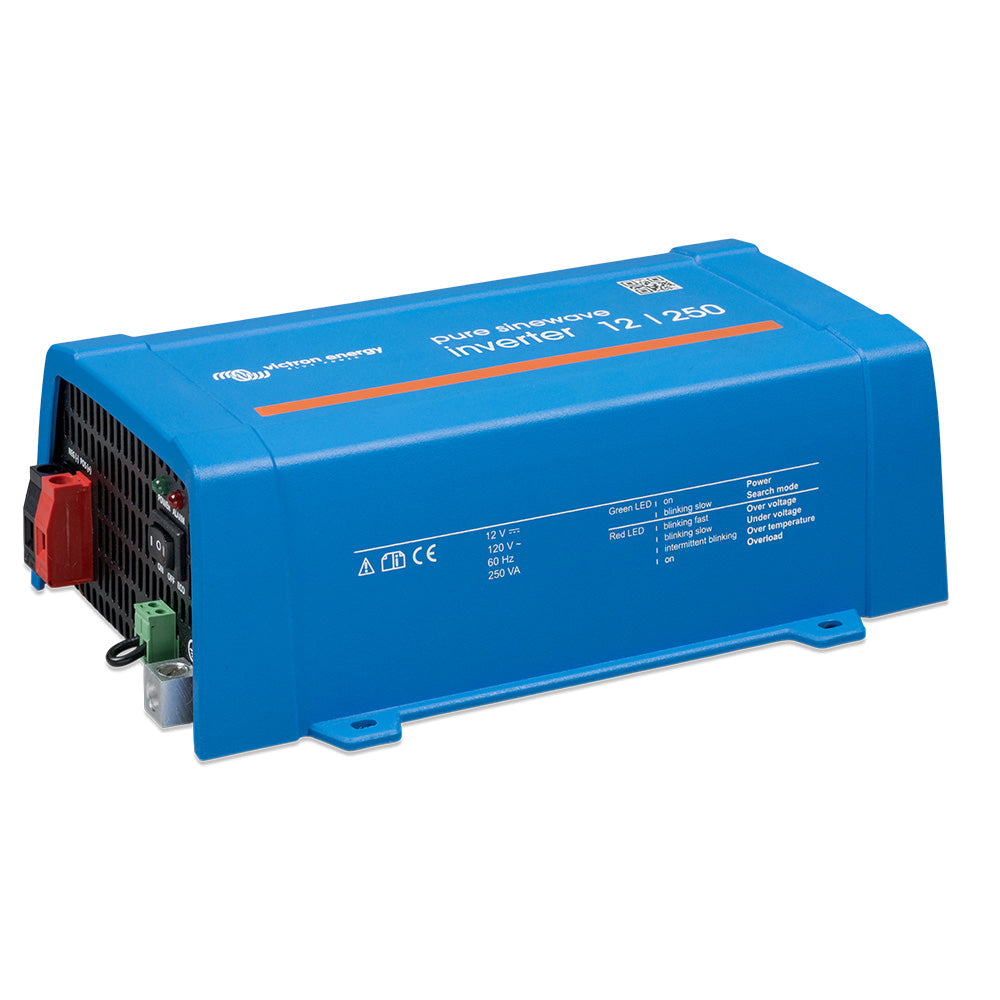

Victron Energy 12/250 Inverter with VE.Direct and Nema 5-15R Output

Inverter 12/250 120V VE.Direct Nema 5-15R

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBooks and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut -off and restart levels
• Dynamic cut -off: load-dependent cut-off level
• Output voltage 2 10 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring -In- and output voltage, % load and alarms

Proven reliability - The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against o verheating, whether due to over load or high ambient temperature.

High start-up power - Needed to start loads such as power co nverters for LED lamps, halogen lamps or electric tools.

ECO mode - When in ECO mode , the inverter will switch to stan dby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds) . If the load exceeds a preset level, the inverter will remain on.

Remote on/off- A remote on/off switch can be connected to a two-pole connecto r, or between battery plus and the left-hand contact of the two-pole connector.

To transfer the load to another AC source: the automatic transfer switch - For our low power inverters , we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

DC connection with screw terminals - No special tools needed for installation

Output Sockets - Nema 5-15R

The Victron Energy 12/250 inverter is designed for reliable power conversion in mobile and off-grid applications, ideal for users needing a versatile, fully configurable inverter. Suitable for powering LED lamps, power tools, and other electronic devices, this inverter offers advanced features to ensure seamless operation and protection. Its high start-up power capability makes it suitable for demanding loads, while the ECO mode helps conserve energy by switching to standby during low load conditions, reducing overall power consumption. The inverter’s fully programmable settings, including low battery voltage alarms, dynamic load-dependent cut-off, and adjustable output voltage and frequency, allow for tailored operation to meet specific needs. The built-in VE.Direct port enables easy connection to computers, smartphones, tablets, and other devices via USB or Bluetooth Smart dongle, providing monitoring and control options for enhanced usability. The inverter’s proven reliability stems from its full bridge and toroidal transformer topology, ensuring durability and safety against short circuits, overheating, overloads, and high ambient temperatures. An integrated remote on/off switch and compatibility with an automatic transfer switch streamline installation and operation, making this inverter a robust choice for solar power systems, RVs, boats, and backup power solutions. With its compact design and straightforward screw terminal connection for DC input, the Victron Energy 12/250 inverter combines reliability, advanced configuration, and user-friendly features to deliver dependable power wherever you need it.
