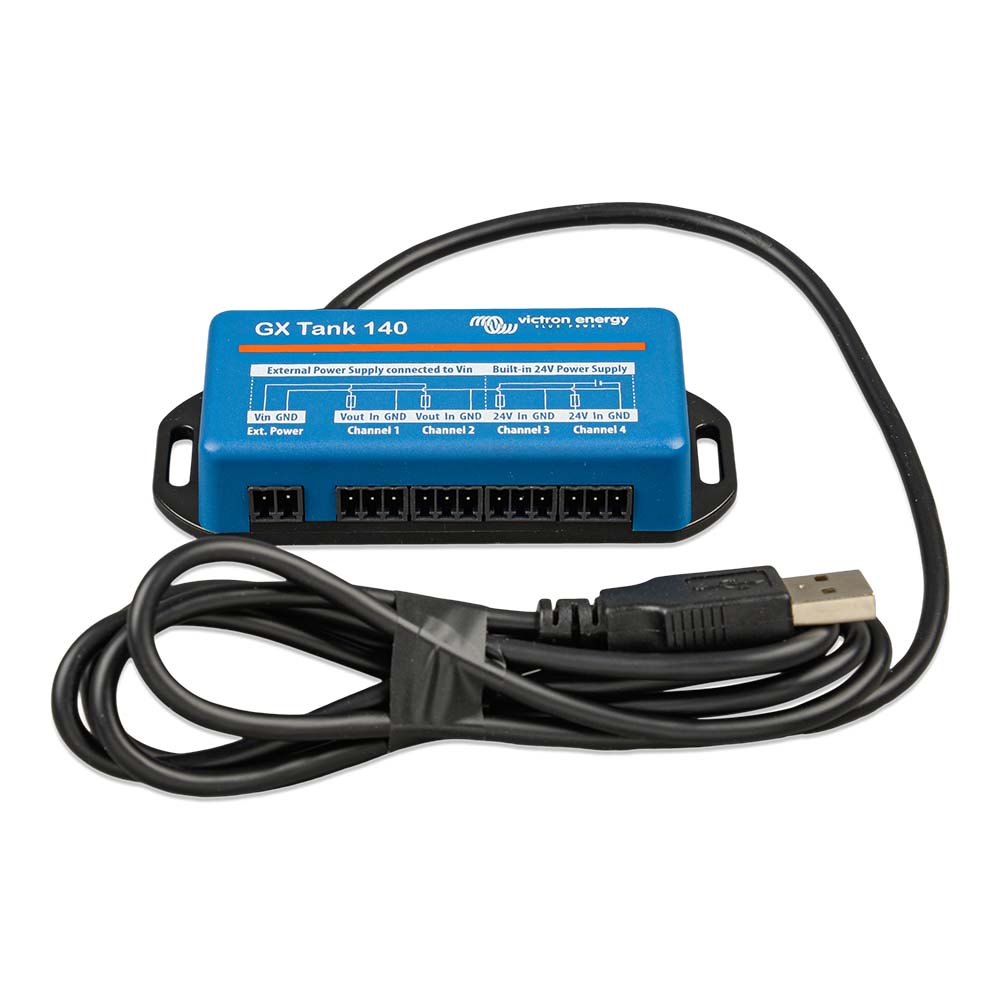

Victron Energy GX Tank 140 Tank Monitoring System for 4-20 mA and 0-10 VDC Sensors

GX Tank 140 Tank Monitoring for 4-20 MA, 1-10VDC Sensors - Monitors Up to 4 Sensors *Sensor Not Included

The GX Tank 140 takes readings from up to four tank level sensors. It is an accessory for our range of GX system monitoring products, of which the Cerbo GX is the most commonly used model.

Tank levels can be read out locally in the system, see screenshot, as well remotely through ourVRM Portal.

The GX Tank is compatible with current senders (4 to 20 mA) as well as voltage senders (0 to 10 V). The connection to the GX Device is via USB, which is also how the GX Tank is powered: no additional power wires are required.

Tank sender wiring is kept as simple as possible: two of the four inputs provide a 24 V power supply, to power the sender. The other two channels do require an external power supply, and there is power in the terminal together with fused outputs to facilitate that.

Upper and lower limits are configurable, to allow using senders that provide only part of the scale, for example, 0 to 5 V.

To provide a stable reading, the readings are averaged damping. The damping can be configured between 1 and 60 seconds.

Faulty sensors and wiring issues are detected: an alarm will be raised when values are out of range.

For marine applications, the GX Device can transmit these tank levels on the NMEA 2000 network to be picked up by other displays such as an MFD.

The Victron Energy GX Tank 140 offers reliable tank level monitoring for up to four sensors, making it an essential accessory for your GX system setup, including the popular Cerbo GX model. Designed for seamless integration, this monitoring device ensures accurate readings both locally in your system and remotely via the VRM Portal, providing real-time insights into your tank levels from anywhere. The GX Tank 140 supports current sensors (4-20 mA) and voltage sensors (0-10 V), enabling compatibility with a wide range of sensor types used in various industrial, marine, or renewable energy applications. Connectivity is simplified through a USB interface that supplies power and transmits data, eliminating the need for extra wiring and making installation straightforward. The device features configurable upper and lower limits, allowing users to customize the measurement scale, for instance, when sensors operate within partial ranges such as 0 to 5 volts. To ensure stable and reliable readings, the GX Tank 140 employs configurable damping from 1 to 60 seconds, smoothing out fluctuations and providing consistent data. It includes fault detection capabilities that alert users to sensor malfunctions or wiring issues, safeguarding your system's integrity. In marine environments, the GX device can transmit tank level data over the NMEA 2000 network, allowing integration with multifunction displays (MFDs) for comprehensive vessel management. Crafted by Victron Energy, a trusted name in power solutions, the GX Tank 140 combines ease of use with advanced monitoring features, helping optimize tank management and prevent potential issues before they escalate. Please contact your dealer for support, repairs, or returns related to this product, ensuring expert assistance when needed. This device is compliant with industry standards, providing confidence in its durability and performance across diverse applications, including demanding marine and industrial environments.

Features:

• Supports up to four tank level sensors: 4-20 mA or 0-10 VDC

• Simple USB connection for power and data transmission

• Configurable upper and lower measurement limits

• Adjustable damping (1 to 60 seconds) for stable readings

• Fault detection for sensors and wiring issues

• Compatible with marine NMEA 2000 network for integrated vessel monitoring

• No additional power wiring required, powered via USB

• Ideal for industrial, marine, and renewable energy applications
