Victron Energy Multi RS Solar 48/6000 Inverter/Charger - 6kVA Hybrid Power Solution

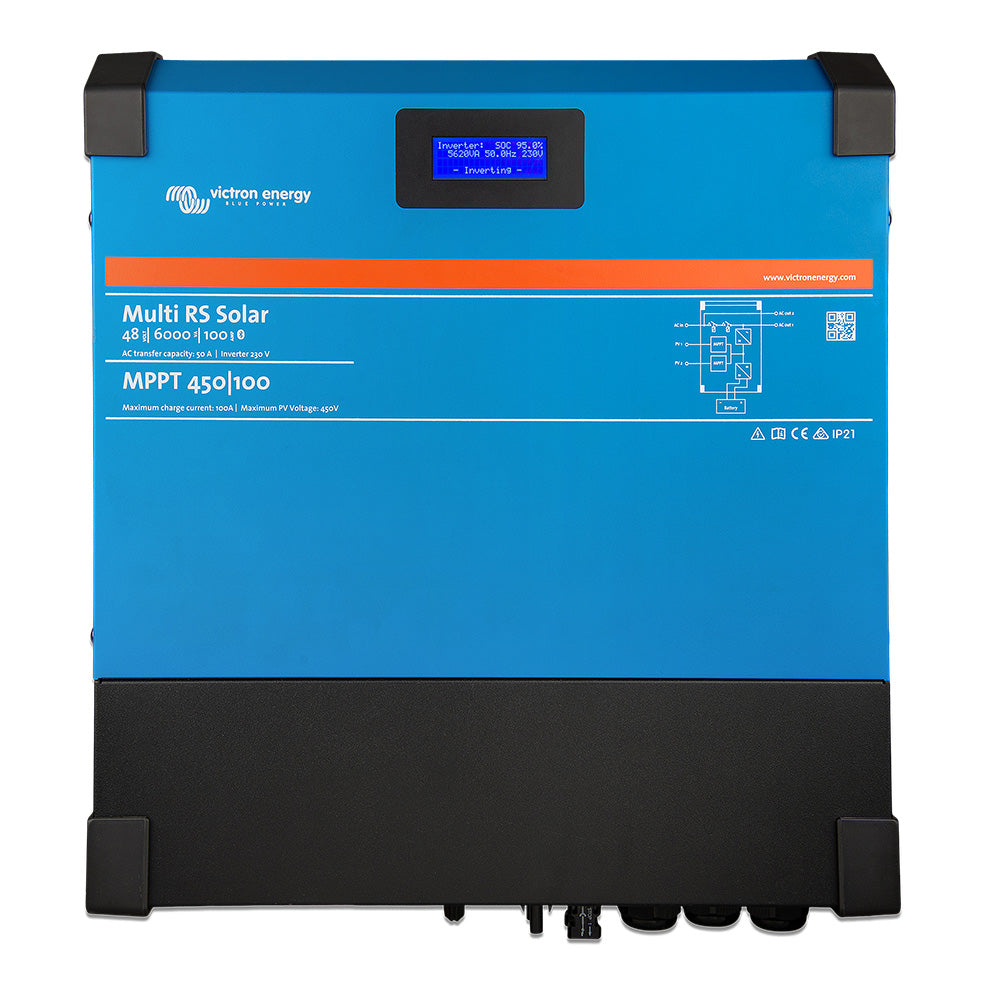

Multi RS Solar 48/6000 Inverter/Charger

The Multi RS Solar 48/6000 is a 48V 6kVA inverter/charger with two independent 3kWp PV 450V MPPT trackers for 6kWp total panel capacity. It supports direct grid connection without batteriesperfect for starting simple and adding storage later.

Updated in mid-2023 to a dual tracker design, its high-frequency technology delivers exceptional efficiency in a quiet, lightweight package with low standby power. Monitor all parameters via the integrated display or the VictronConnect app, which also provides historical trends, firmware updates, and configuration tools. Connect to a Cerbo GX for advanced ESS functions, like zero-export to block grid feed-in and backup mode to power critical loads during outages.

Operating Modes:

• Hybrid mode Stores excess solar energy in a battery, to be used during the night or periods of high demand. Supplies additional power from the battery when demand exceeds grid capacity.
• Backup mode Switches to backup mode during a grid outage.
• Off-grid mode Operates without a grid connection.
• Generator mode Controls the generator to minimize run hours. Supplies additional power from the battery when demand exceeds the capacity of the generator.
• PV Inverter mode Works as a PV inverter without a battery.

PowerControl PowerAssist - Boosting the capacity of the grid or a generator

A maximum grid or generator current can be set. The Multi RS will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).

PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the Multi RS will compensate insufficient generator or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.

Display, Bluetooth VictronConnect app

The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device , using the VictronConnect app.

Extendable PV capacity, both AC -coupled DC -coupled

The integrated 6 kWp PV capacity can be extended by adding solar chargers to the system. Alternatively, the PV capacity can be extended by installing PV Inverters, of which the output power will be automatically controlled by the integrated frequency shift power control.

Communication Ports

VE.Can connection to a GX device for system monitoring, energy meter (11), data logging, and remote firmware updates.

VE.Direct connection to a GlobalLink 520 for remote data monitoring.

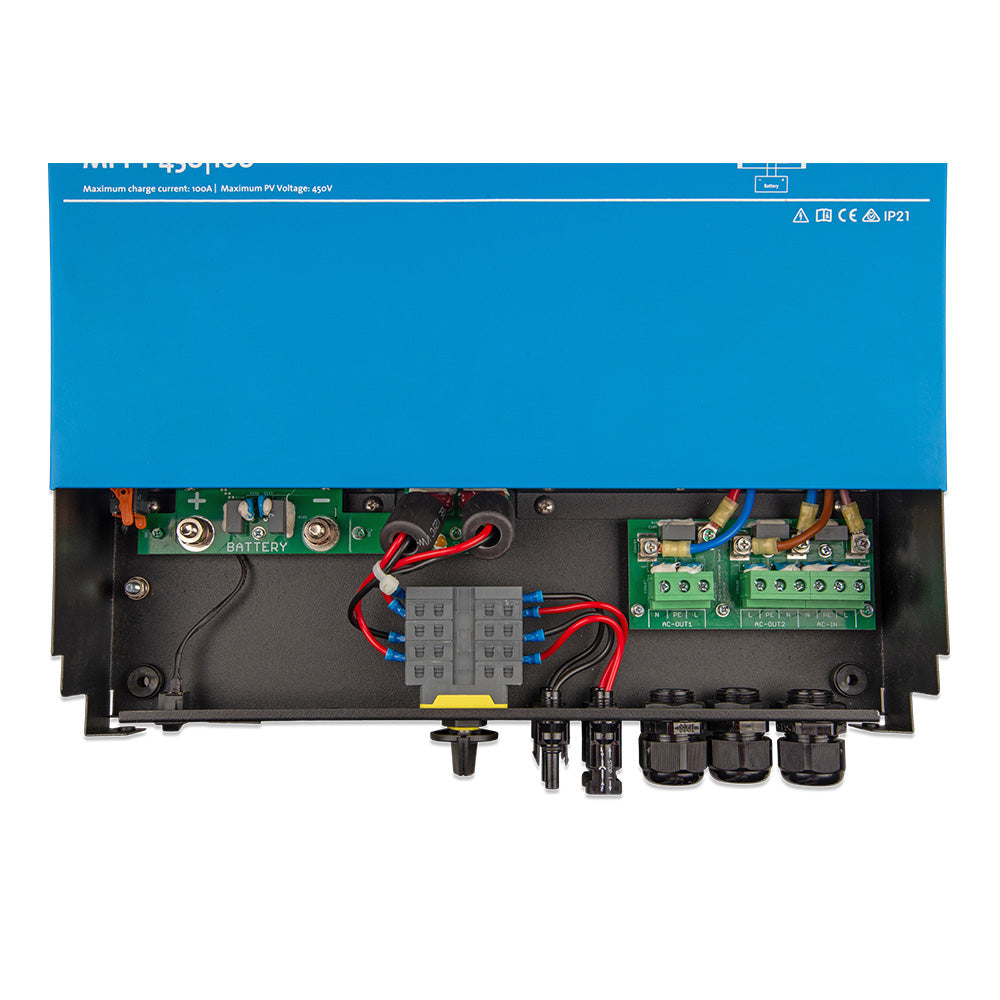

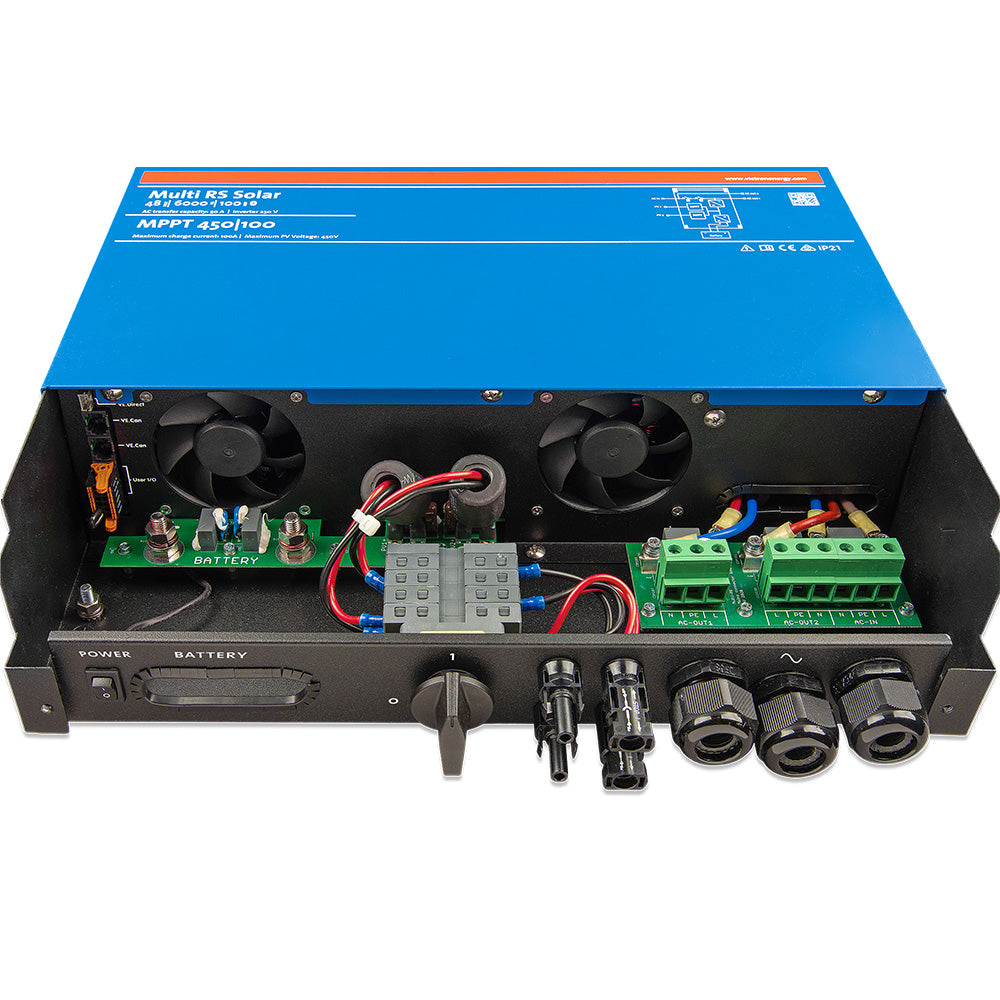

I/O Connections

Programmable relay, temperature sensor and voltage sensor connections

The Victron Energy Multi RS Solar 48/6000 Inverter/Charger is an advanced hybrid power system designed for versatile energy management in residential and small commercial applications. Featuring a 48V 6kVA inverter/charger, it incorporates two independent 3kWp MPPT trackers capable of handling a total of 6kWp of solar panel capacity, making it suitable for expanding solar installations. Its high-frequency technology ensures high efficiency, lightweight design, and quiet operation, ideal for installation in various environments. The integrated display and compatibility with the VictronConnect app enable users to monitor real-time parameters, access historical data, and perform firmware updates effortlessly. For more sophisticated system control, connect the Multi RS to a Cerbo GX for features like zero-export, grid feed-in management, and backup power during outages. This inverter/charger supports multiple operating modes including hybrid, backup, off-grid, generator, and PV inverter, providing flexible energy solutions tailored to your needs. The hybrid mode allows for storing excess solar energy in batteries for night-time or high-demand use, while backup mode seamlessly switches during grid failures. Off-grid operation ensures independence from the grid, and generator mode optimizes generator usage to reduce run hours and fuel consumption. PowerControl with PowerAssist functionality enhances system capacity by boosting power during peak loads, intelligently balancing grid, generator, and battery resources to prevent overloads. Extend your solar capacity easily by adding additional PV panels or inverters, as the system supports both AC and DC coupling, with automatic power regulation via frequency shift control. Communication options include VE.Can and VE.Direct ports for system monitoring and remote data logging, compatible with Victron GX devices and GlobalLink 520. Additional I/O connections for programmable relays, temperature, and voltage sensors increase customization potential. Compact yet powerful, the Victron Multi RS Solar 48/6000 offers reliable, scalable energy management for those seeking to maximize their solar investment with intelligent, flexible power solutions.

Features:

• Hybrid inverter/charger with 48V 6kVA capacity for versatile energy management

• Two independent 3kWp MPPT solar trackers for a total of 6kWp solar input capacity

• High-frequency technology delivers high efficiency, lightweight, and quiet operation

• Integrated display and Bluetooth compatibility via VictronConnect app for real-time monitoring and updates

• Supports multiple operating modes including hybrid, backup, off-grid, generator, and PV inverter

• PowerControl with PowerAssist boosts capacity during peak loads by utilizing battery power

• Expandable PV capacity through additional solar chargers or PV inverters, compatible with AC and DC coupling

• Advanced system communication via VE.Can and VE.Direct ports for remote monitoring and firmware updates

• Flexible I/O connections for relays, temperature, and voltage sensors for system customization

• Designed for easy integration with Cerbo GX and GlobalLink 520 for enhanced system control and monitoring
