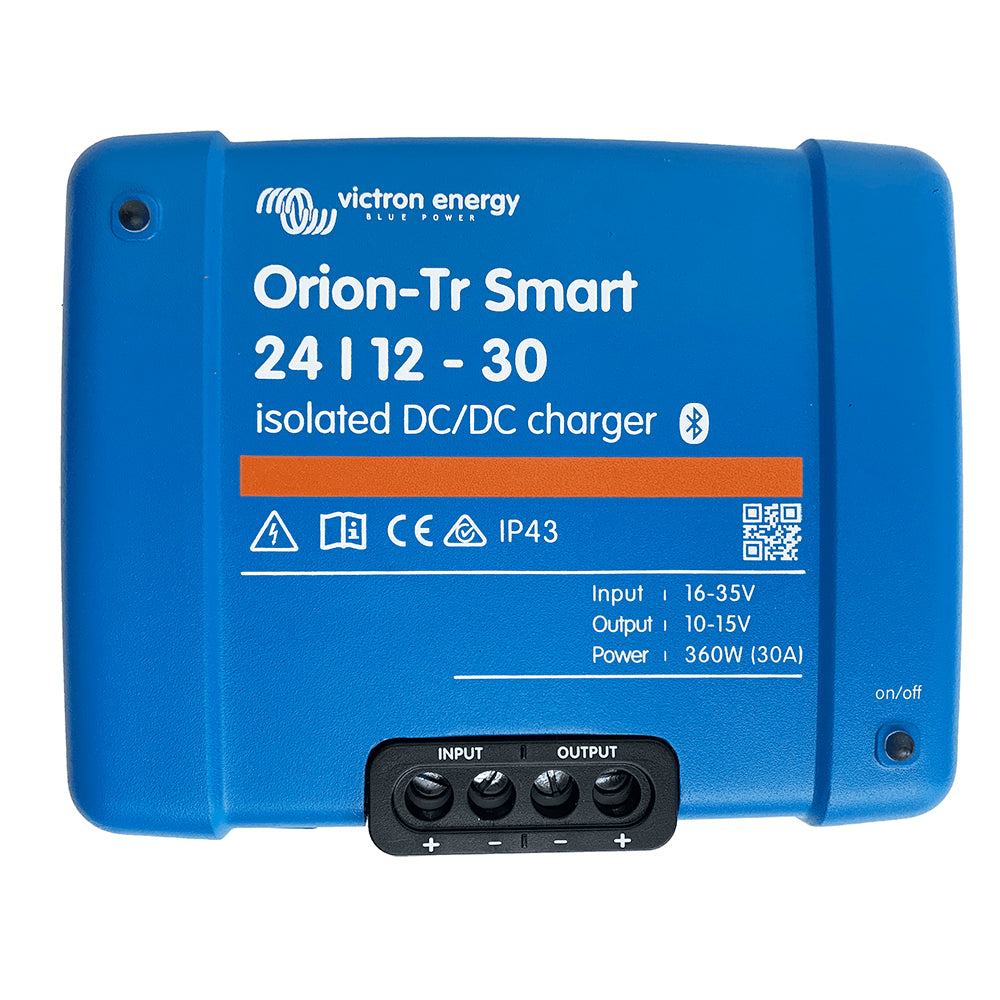

Victron Energy Orion-Tr Smart 24/12-30A 360W Isolated DC-DC Charger and Power Supply ORI241236120

Orion-TR Smart 24/12-30A (360W) Isolated DC-DC Charger or Power Supply

The Orion-Tr Smart isolated DC-DC charger serves as a DC-DC battery charger or a power supply (also designed for use as a constant voltage source), offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.

Bluetooth Smart Enabled

• Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available
• Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product

Fully programmable

• Battery charge algorithm (configurable) or fixed output.
• Smart Alternator Compatibility: engine running detection mechanism

Adaptive 3-Stage Charge Algorithm: Bulk Absorption Float

• For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged
• For lithium batteries, the absorption time is fixed; the default is 2 hours
• Alternatively, a fixed output voltage can be chosen

Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines)

The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details).

Remote On/Off

A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation. Input fuse (not replaceable)

*Input fuse (not replaceable)

Specifications:

• Input Voltage Range: 20-35 V
• Under Voltage Shut Down: 14 V
• Under Voltage Restart: 15 V
• Nominal Output Voltage: 12.2 V
• Output Voltage Adjust Range: 10-15 V
• Output Voltage Tolerance: +/- 0,2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A
• Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 45 A
• Short Circuit Output Current: 60 A
• Cont. Output Power at 25 Degrees C: 430 W
• Cont. Output Power at 40 Degrees C: 360 W
• Efficiency: 88 %
• No Load Input Current (2): < 100 mA
• Standby Current: Less than 1A
• Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range -20 to +55 C (derate 3 % per C above 40 C)
• Humidity: Max. 95 % non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 16 mm AWG6
• Weight: 1,6 kg (3.5 lb)
• Dimensions (H x W x D):130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
• Protection Category IP43 (electronic components), IP22 (connection area)
• Safety Standards: EN 60950
• Emission/Immunity Standards: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Orion-Tr Smart 24/12-30A is an isolated DC-DC battery charger and adjustable power supply designed for boats, RVs, and vehicles using 24-volt input systems with 12-volt service batteries or DC loads. With Bluetooth connectivity, programmable charging settings, galvanic isolation, and a 30A continuous output, it helps provide controlled DC power where smart alternators, long cable runs, or voltage drops can affect charging performance.

Use the Orion-Tr Smart as a configurable battery charger with an adaptive three-stage charging algorithm or as a fixed-voltage power supply. Bluetooth Smart allows compatible smartphones, tablets, and other devices to monitor operating data, change settings, and update the charger through the VictronConnect app. The built-in engine-running detection is suited to vehicles with Euro 5 and Euro 6 smart alternators and can stop the converter when the engine is not running to help prevent unwanted starter-battery discharge.

The unit includes remote on/off capability, screw terminals for installation without special tools, and short-circuit protection. Units can be connected in parallel to increase output current. High-temperature protection reduces output current at elevated ambient temperatures, while the IP43 protection rating applies when installed with the screw terminals facing downward. The isolated design provides 200 VDC separation between the input, output, and case.

Key Features

• Bluetooth Smart: Monitor data, adjust settings, and update the charger using the VictronConnect app.
• Dual Function: Operates as a programmable DC-DC battery charger or adjustable fixed-voltage power supply.
• Adaptive Three-Stage Charging: Configurable bulk, absorption, and float charging for supported battery applications.
• Smart Alternator Compatibility: Engine-running detection supports vehicle charging systems used with Euro 5 and Euro 6 engines.
• Remote On/Off: Connect a remote switch or relay contact through the two-pole connector.
• Protected and Expandable: Short-circuit protection, high-temperature protection, galvanic isolation, and parallel operation capability.

Product Details

• Brand: Victron Energy
• Model: Orion-Tr Smart 24/12-30A
• Part Number: ORI241236120
• Input Voltage Range: 20–35 volts
• Nominal Output Voltage: 12.2 volts
• Output Voltage Adjustment Range: 10–15 volts
• Continuous Output Current: 30 amps at nominal output voltage and 104°F
• Continuous Output Power: 430 watts at 77°F; 360 watts at 104°F
• Maximum Output Current: 45 amps for 10 seconds
• Efficiency: 88%
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature: -4°F to 131°F, with output derating above 104°F
• Connection: Screw terminals; supports cable cross-sections up to 16 mm² (AWG 6)
• Weight: 3.5 pounds
• Protection Category: IP43 for electronic components and IP22 for the connection area
• Safety and Compliance Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, and ECE R10-5

California Proposition 65 Warning

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Please contact your dealer for any returns, repairs, or support issues related to this product. Choose the Victron Energy Orion-Tr Smart for controlled, connected DC-DC charging and power conversion in demanding 24-volt vehicle, marine, and RV electrical systems.
