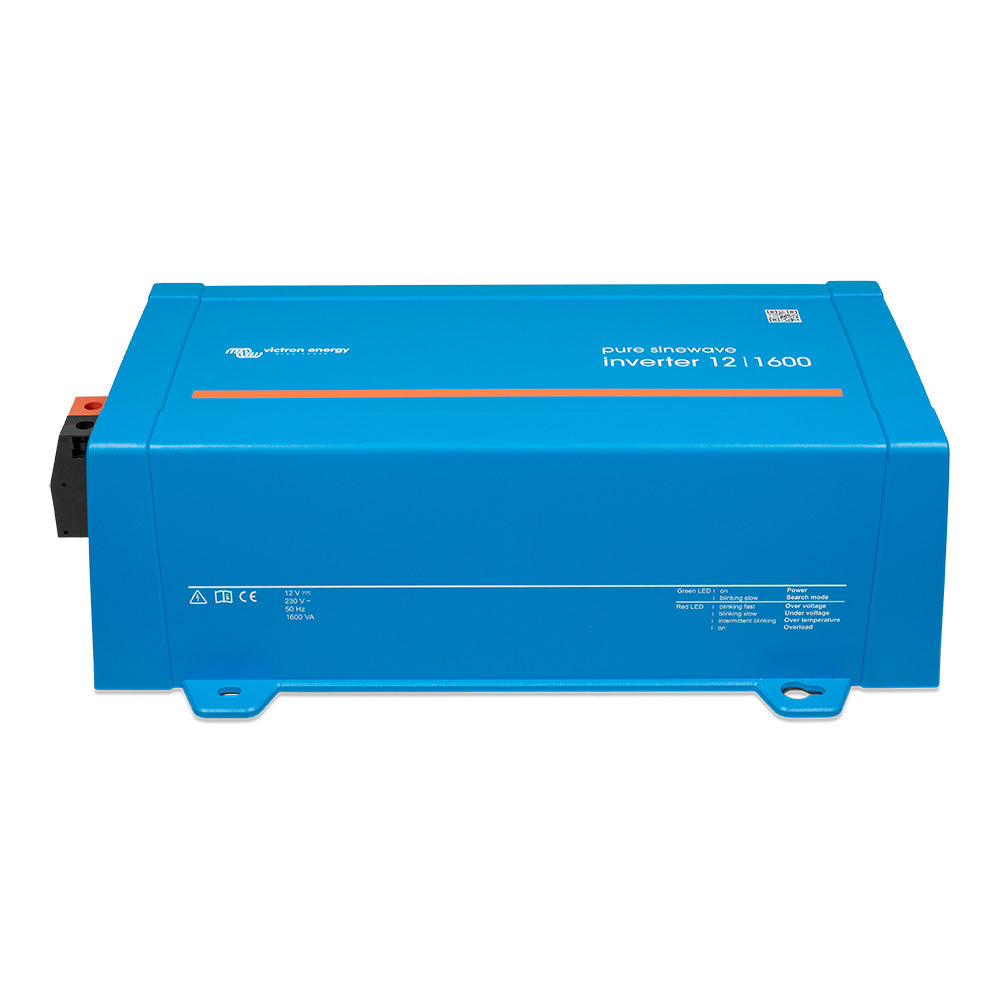

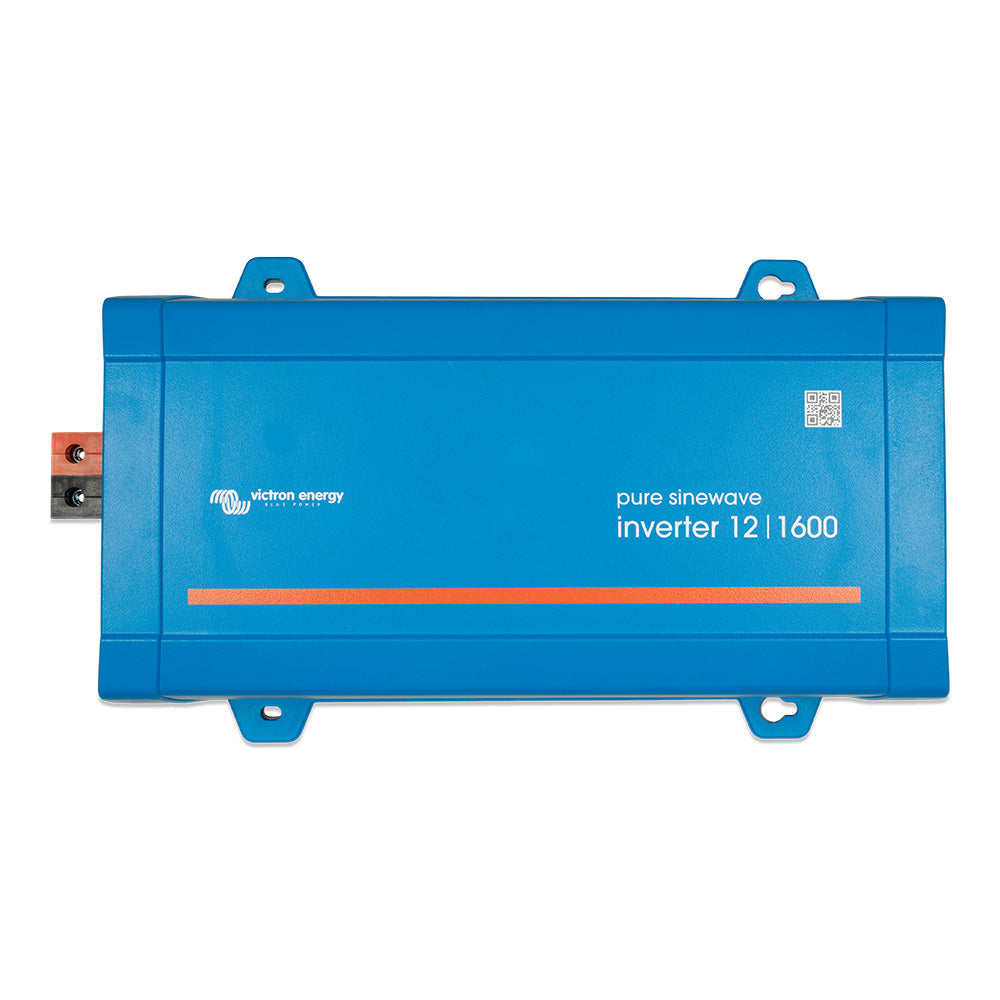

Victron Energy Phoenix Inverter 12/1600 120V VE.Direct with NEMA 5-15R Outlet

Phoenix Inverter 12/1600 120V VE.Direct NEMA 5-15R

Inverters allow users to power domestic equipment, requiring 230V/120V AC, using leisure or automotive batteries rated at 12V, 24V, or 48V DC.

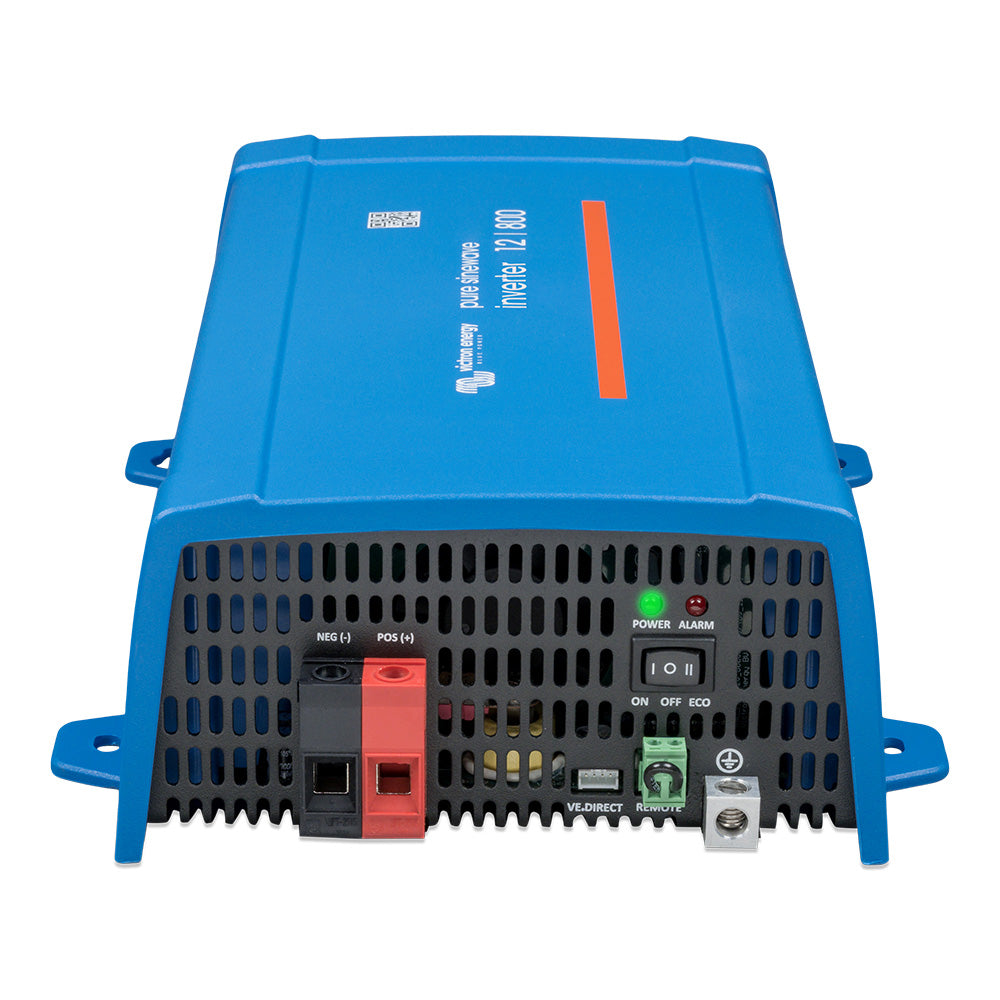

VE.Direct Communication Port

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBooks, and other devices
• (VE.Direct Bluetooth Smart dongle needed)

Fully Configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load-dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

In and output voltage, % load, and alarms

Proven Reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.

The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High Start-Up Power

Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.

ECO Mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote On/Off

A remote on/off switch can be connected to a two-pole connector, or between the battery plus and the left-hand contact of the two-pole connector.

LED Diagnosis

To Transfer the Load to Another AC Source: The Automatic Transfer Switch

For Victrons low-power inverters, they recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Inverter Specifications:

• Cont. Power at 25 degrees C: (1) 250VA
• Cont. Power at 25 degrees C / 40 degrees C: 200 / 175W
• Peak Power: 400W
• Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V
• Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
• DC Low Restart Alarm (adjustable): 10,9 / 21,8 / 43,6V
• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V
• Max. Efficiency: 87 / 88 / 88%
• Zero-Load Power: 4,2 / 5,2 / 7,9W
• Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W
• ECO Mode Stop Start Power Setting: Adjustable
• Protection (2): a - f
• Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)

Enclosure Specifications:

• Material Color: Steel chassis and plastic cover (blue Ral 5012)
• Battery-Connection: Screw terminals
• Maximum Cable Cross-Section: 10mm / AWG8

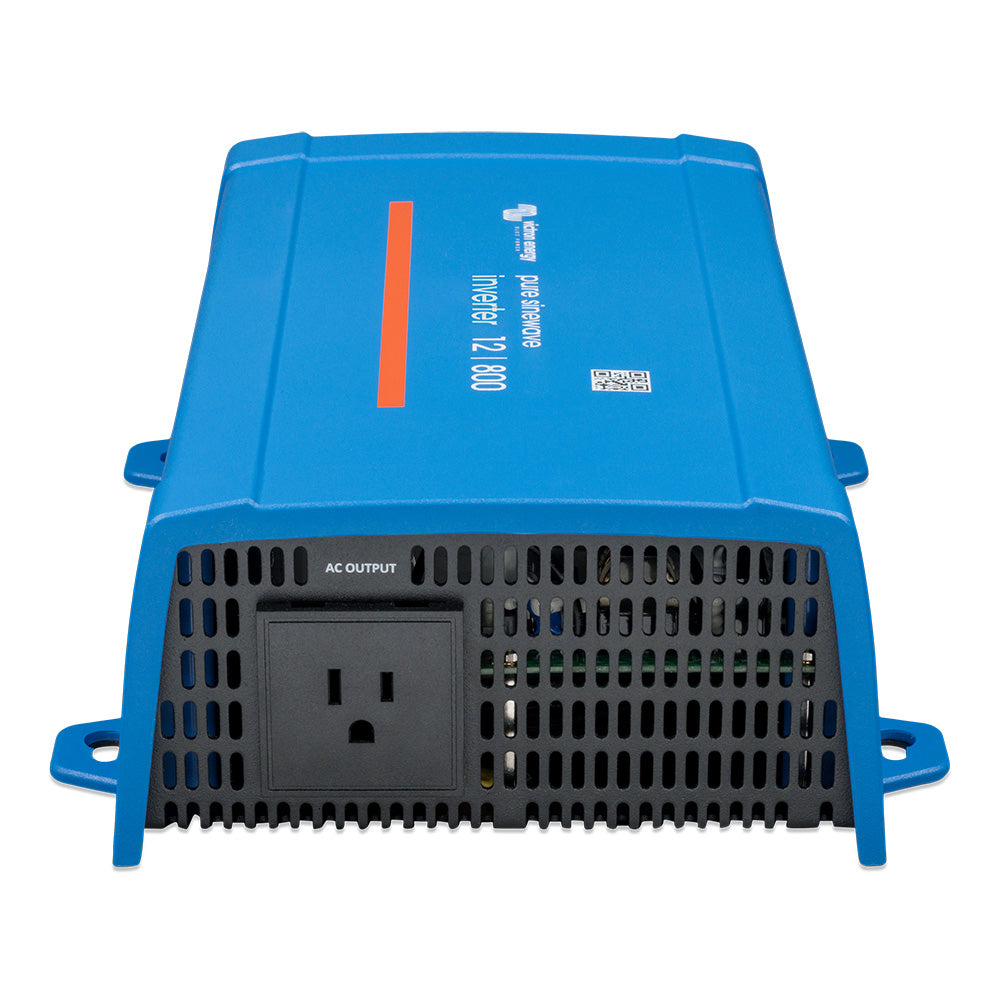

• Standard AC Outlets: 120V: NEMA 5-15R
• Protection Category: IP 21
• Weight: 2,4kg / 5.3 lbs
• Dimensions (H x W x D, mm); (H x W x D, inch): 86 x 165 x 260; 3.4 x 6.5 x 10.2

Accessories:

• Remote On-off: Yes
• Automatic Transfer Switch: Filax

Standards:

• Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)
• EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
• Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high

The Victron Energy Phoenix Inverter 12/1600 (Part Number PIN122161500) offers reliable power conversion for off-grid applications, recreational vehicles, and backup systems. Designed to convert 12V DC from leisure or automotive batteries into a stable 120V AC supply, this inverter is ideal for powering household appliances, LED lamps, and power tools. Its proven full bridge and toroidal transformer topology ensure durability and consistent performance, with protection against short circuits and overheating. This inverter features a high start-up power capability, enabling it to power devices like LED drivers and electric tools without difficulty. The device’s fully configurable settings include low battery voltage alarms, dynamic load-dependent cut-offs, adjustable output voltage (210-245V), and frequency (50Hz/60Hz), providing tailored operation for your specific needs. Monitoring features include real-time input and output voltage, load percentage, and alarm statuses, accessible via the VE.Direct communication port. The VE.Direct port allows connection to computers, smartphones, or tablets (with appropriate interfaces), making remote management simple and efficient. An integrated ECO mode enables energy savings by switching the inverter to standby when the load drops below 15W, with customizable restart intervals. Remote on/off control can be added via a two-pole connector, providing convenience for remote operation. The inverter’s robust construction includes a steel chassis with a blue RAL 5012 plastic cover, screw terminals for battery connection, and an IP 21 protection rating suitable for indoor use. Compact and lightweight, it weighs approximately 5.3 pounds, with dimensions designed for easy installation. Certified to international safety and EMC standards, the Victron Phoenix inverter ensures peace of mind for demanding applications. Compatible accessories include remote on/off switches and the Filax automatic transfer switch, which offers rapid switchover times under 20 milliseconds, ideal for sensitive electronics. Whether used for recreational vehicles, backup power, or off-grid systems, this inverter provides reliable, configurable, and efficient power conversion to meet your needs.

Features:

• VE.Direct communication port for remote monitoring and control

• Fully configurable low battery alarms, voltage cut-offs, and frequency settings

• High start-up power suitable for LED drivers and electric tools

• Eco mode for energy savings with adjustable load threshold

• Remote on/off switch compatibility for convenient operation

• Proven reliability with short-circuit and thermal protection

• Compact steel chassis with IP 21 protection for indoor use

• Certified to international safety and EMC standards
