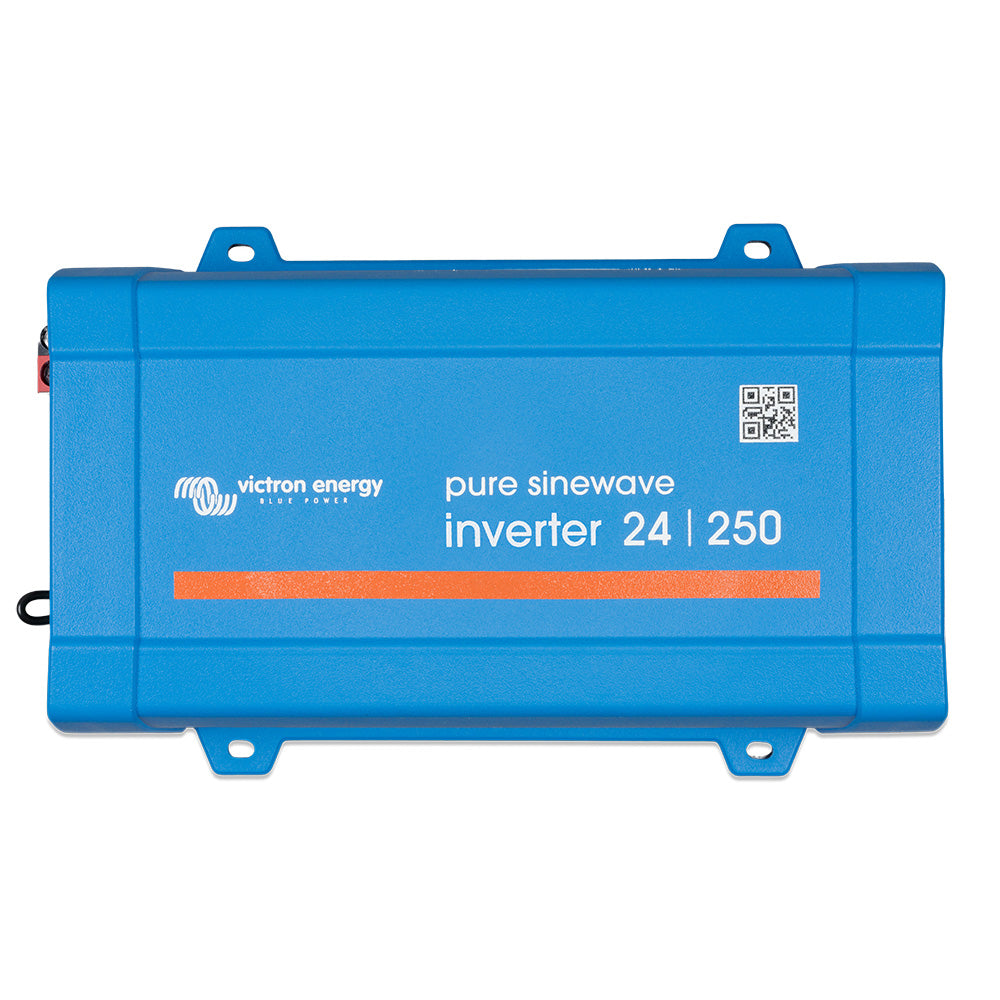

Victron Energy Phoenix Inverter 24/250 120V VE.Direct NEMA GFCI UL458 PIN242510510

Phoenix Inverter 24/250 120V VE Direct NEMA GFCI UL458

The Victron Phoenix VE.Direct inverter series delivers reliable, pure sine wave AC power from 12V, 24V, or 48V battery systemsideal for marine, RV, and off-grid applications. Available in power ratings from 250VA to 1600VA, these inverters offer exceptional efficiency, low standby consumption, and full protection for your sensitive electronics.

Features:

• Pure sine wave output Safely powers sensitive electronics
• VE.Direct communication Monitor and configure via USB (separate VE.Direct to USB cable required) or Bluetooth with the VictronConnect app (separate VE.Direct Smart Bluetooth Dongle required)
• ECO mode Minimizes standby consumption to save battery life
• High surge capacity Starts inductive loads like compressors and pumps
• Full electronic protection Includes overload, short circuit, and temperature safeguards
• NEMA 5-15R or GFCI outlet GFCI models are UL 458 listed for added safety

Specifications:

• Input voltages: 12V, 24V, or 48V (depending on model)
• Output voltage: 120V 3%, 60Hz 0.1% (adjustable)
• No-load consumption: 4.210W (standard) / under 3W (ECO mode)
• Operating temperature: -40C to +65C (fan-assisted)
• Ingress protection: IP21
• Remote on/off; screw-terminal DC connection; pair with the Victron Filax 2 for automatic transfer switching

Victron Energy Phoenix Inverter 24/250 120V VE.Direct NEMA GFCI UL458 provides reliable pure sine wave AC power for 24V battery systems in marine, RV, and off-grid applications. Designed to operate sensitive electronics and everyday equipment, this 250VA inverter delivers regulated 120V AC output in a compact, efficient format.

VE.Direct communication allows monitoring and configuration through USB with a separate VE.Direct to USB cable or through the VictronConnect app using a separate VE.Direct Smart Bluetooth Dongle. ECO mode helps reduce standby consumption when the connected load is low, while high surge capacity supports the startup demands of inductive equipment such as compressors and pumps. The integrated GFCI outlet and UL 458 listing provide important electrical protection for supported installation and use requirements.

Key Features:

• Pure sine wave output: Provides clean AC power for sensitive electronics and compatible equipment.
• VE.Direct communication: Enables monitoring and configuration through compatible Victron accessories.
• ECO mode: Helps minimize standby power consumption to conserve battery energy.
• High surge capacity: Supports startup loads from inductive equipment, including compressors and pumps.
• Electronic protection: Includes overload, short-circuit, and temperature safeguards.
• NEMA GFCI outlet: Includes a GFCI receptacle and is UL 458 listed.

Product Details:

• Brand: Victron Energy
• Model: Phoenix Inverter 24/250 120V VE.Direct NEMA GFCI UL458
• Part number: PIN242510510
• Input voltage: 24V DC
• Output voltage: 120V AC, adjustable; 60Hz with 0.1% accuracy
• Rated power: 250VA
• No-load consumption: 4.2W standard; under 3W in ECO mode
• Operating temperature: -40°F to +149°F, fan-assisted
• Ingress protection: IP21
• Connections: Remote on/off and screw-terminal DC connection
• Transfer switching: Can be paired with the Victron Filax 2 for automatic transfer switching

Choose the Victron Energy Phoenix 24/250 inverter for dependable pure sine wave power and practical control in 24V marine, RV, and off-grid electrical systems.

Please contact your dealer for any returns, repairs or support issues related to this product.
