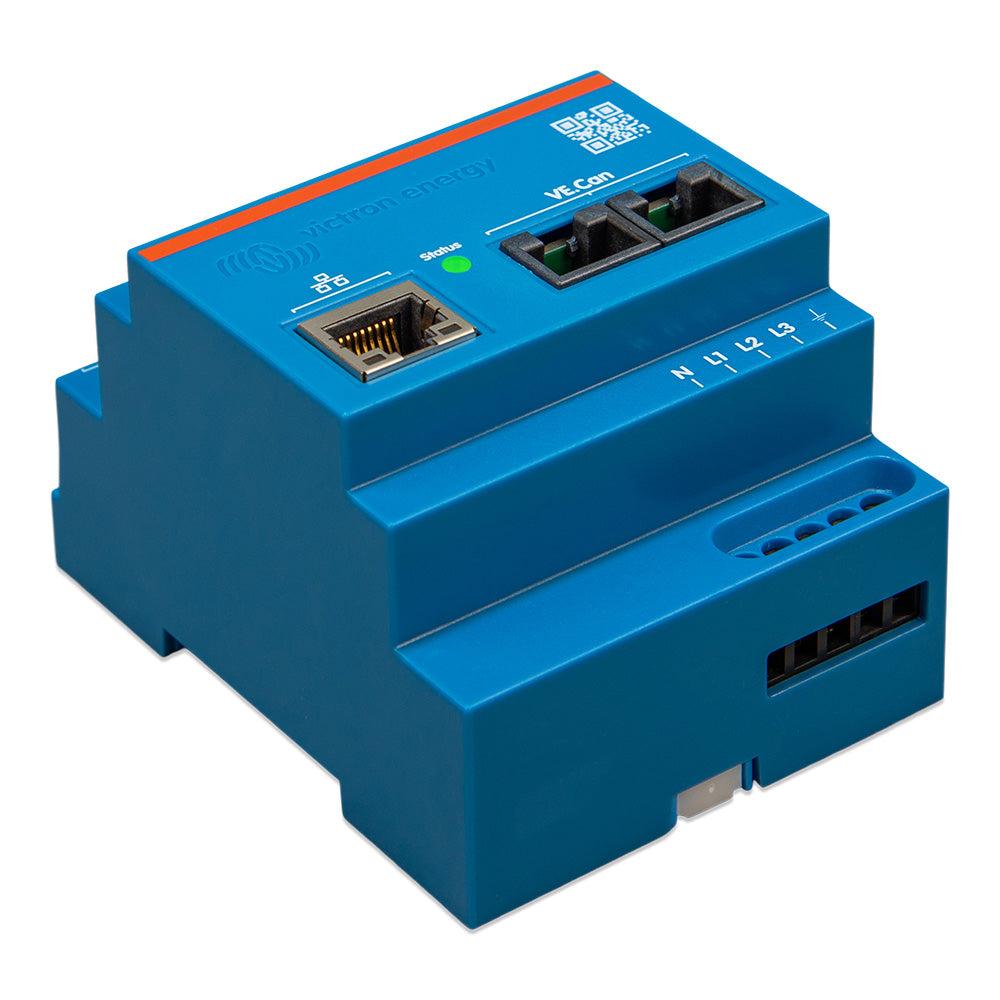

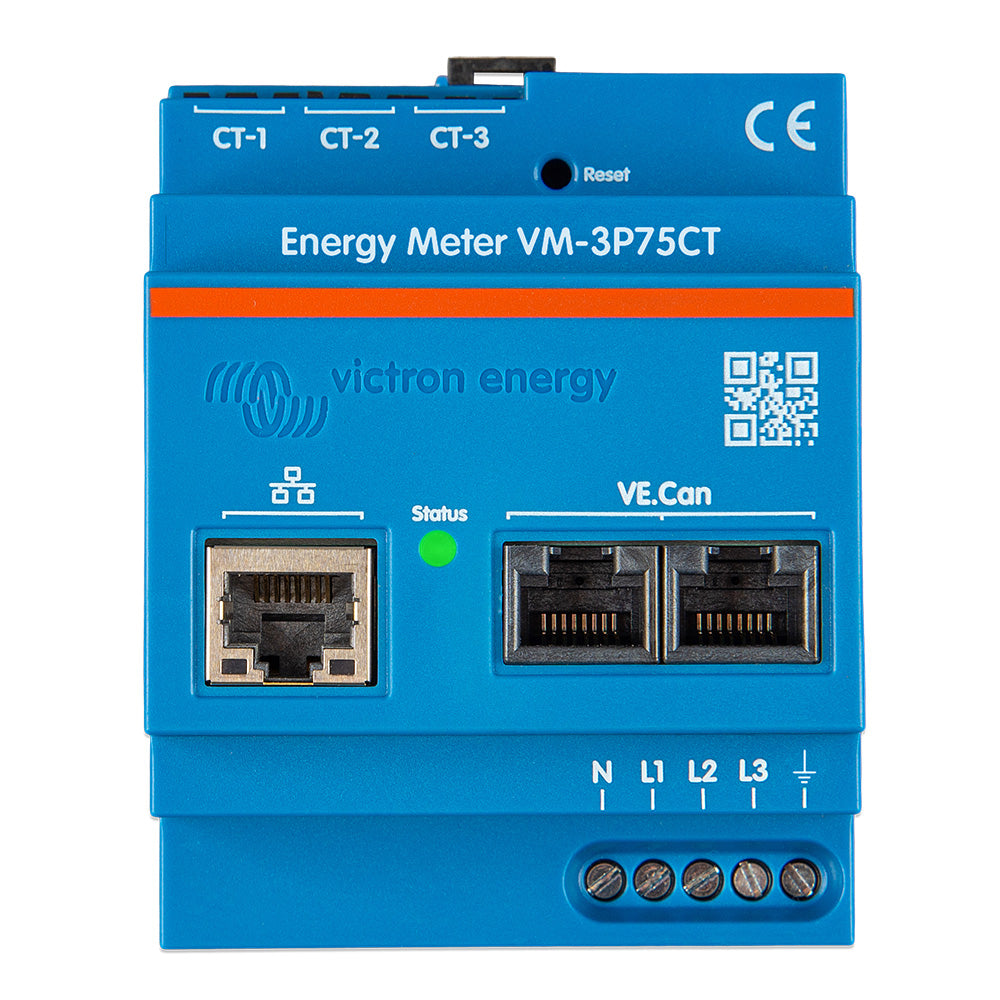

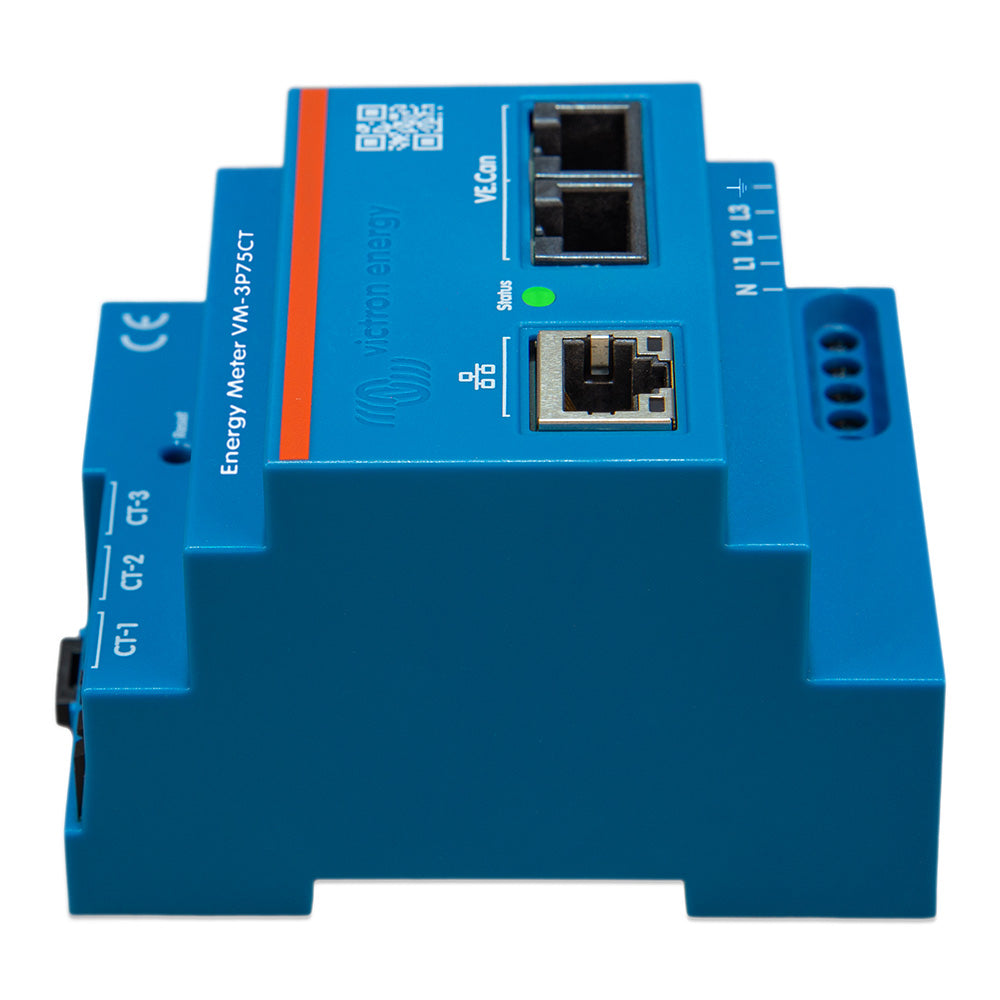

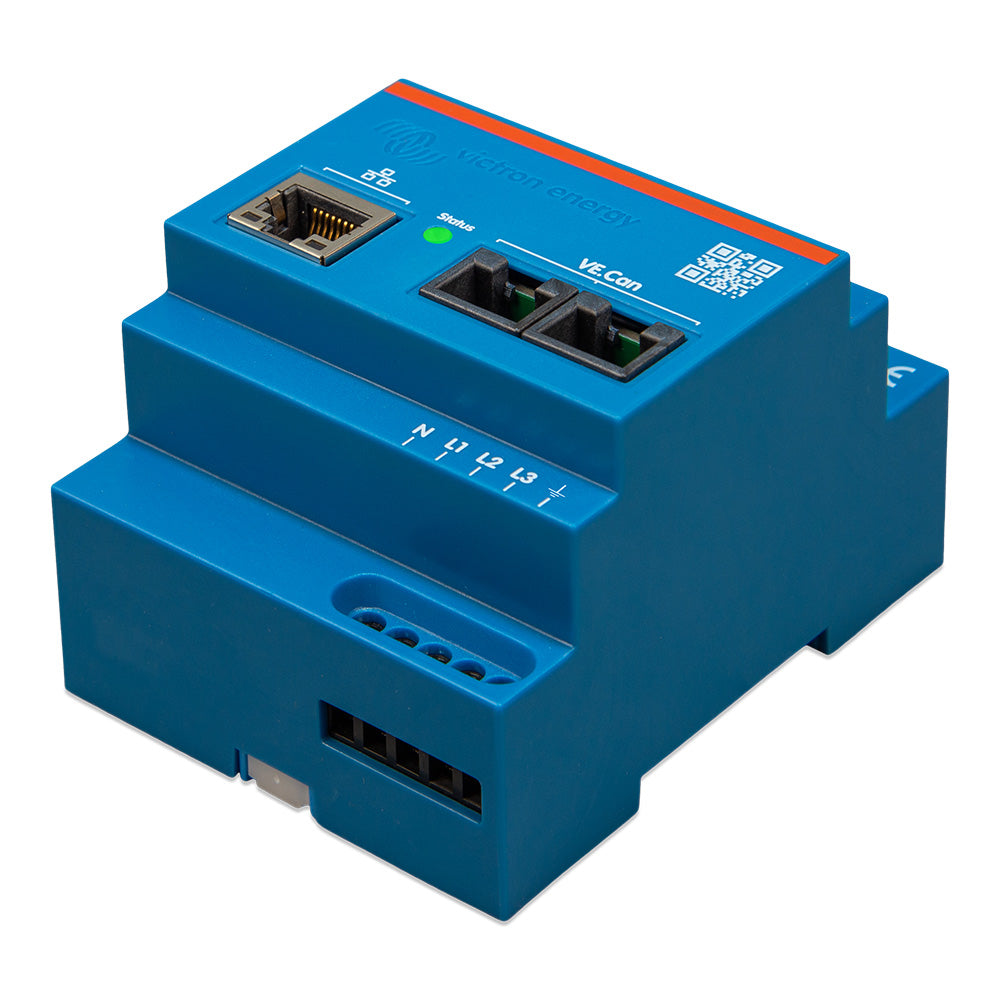

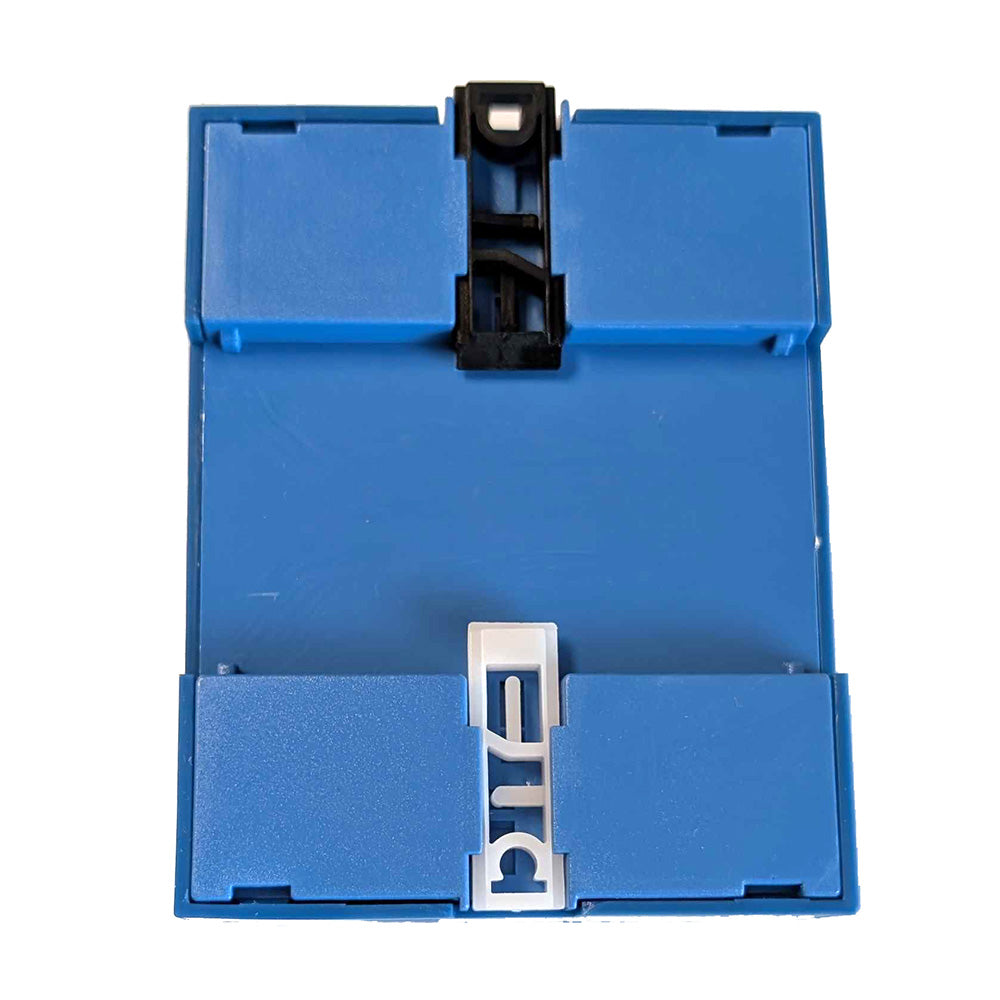

Victron Energy VM-3P75CT Single- and Three-Phase Energy Meter, 75A, REL200300100

Energy Meter VM-3P75CT Single + 3-Phase

The Victron VM-3P75CT energy meter is a standard device to measure the power and energy of single- and three-phase applications and calculates each phases power values and broadcasts this over VE.Can or Ethernet with a high rate. It has built-in Ethernet and VE.Can ports for connecting to a GX device and the split-core current transformers enable easy and quick installation without modifying existing wiring.

The energy meter works out of the box (the firmware may need to be updated; details can be found in the Firmware Updates chapter) as a grid meter for systems with a MultiPlus and Quattro. Configuration (via VictronConnect) is only required for changing the role and manual IP configuration, rather than the default DHCP. Its data is displayed on a GX device such as the Cerbo GX or Ekrano GX, as well as in VictronConnect and the VRM Portal.

Specifications:

• Voltage connection: Direct
• Input voltage range L-N: 85 to 265VAC
• Input voltage range L-L:150 to 460VAC
• Frequency: 50/60Hz
• Current connection: Via current transformers (included - wire length 640mm (25.2in)
• Rated current: 75A
• VE.Can communication port: Two RJ45 connectors (VE.Can terminators included)
• Ethernet communication port: One RJ45 connector, Modbus UDP
• Refresh rate: 100ms
• Type: Self-power supply via L1-N
• Switch or circuit breaker: Required as a means of a disconnecting device - not included
• External fuse [1]: Required in the neutral conductor - 500mA, not included
• Consumption: 1.45W / 3.1VA
• Frequency: 50/60Hz
• Material Color: Polycarbonate, blue (RAL5012)
• Voltage connection: Screw terminals 0.25 - 1.5mm2 (24 - 16AWG)
• Current transformer connection: Pluggable screw terminals (included)
• Protection category: IP20
• Weight: 370g (including packaging)
• Dimensions: 90 x 71 x 59mm (3.5 x 2.8 x 2.3in)
• Indoor/outdoor usage: Indoor only
• Operating temperature: From -10 to +55 C
• Storage temperature: From -20 to +70 C
• Relative humidity: < 90% non-condensing
• Altitude: 2000m (6562ft)
• Mains supply voltage fluctuations: 0.1Vin
• Overvoltage category: Cat. III
• Pollution degree: 2

Whats In The Box

• Victron VM-3P75CT with 3 input terminal blocks
• 3x Split-core current transformer, wired ready for connection
• Wire length: 640mm (25.3)
• VE.Can terminators (2-pieces)

Victron Energy VM-3P75CT Single- and Three-Phase Energy Meter

The Victron Energy VM-3P75CT is a 75A energy meter designed to measure power and energy in single- and three-phase applications. It calculates power values for each phase and broadcasts data over VE.Can or Ethernet at a 100ms refresh rate, making it suitable for Victron Energy systems using a GX device such as the Cerbo GX or Ekrano GX.

Built-in Ethernet and VE.Can communication ports simplify system integration, while the included split-core current transformers support installation without modifying existing wiring. The VM-3P75CT works out of the box as a grid meter for systems with a MultiPlus or Quattro, although firmware updates may be required. VictronConnect is used when changing the meter role or configuring a manual IP address instead of the default DHCP setting. Measured data can be viewed through a connected GX device, VictronConnect, or the VRM Portal.

Key Features:

• Single- and three-phase measurement: Measures power and energy across single- and three-phase applications.
• 75A rated current: Supports monitoring applications with current measurement through the included split-core transformers.
• VE.Can and Ethernet connectivity: Connects to GX devices through two RJ45 VE.Can connectors or Ethernet using Modbus UDP.
• Fast data refresh: Broadcasts calculated phase power values at a 100ms refresh rate.
• Easy installation: Includes three wired split-core current transformers for installation without modifying existing wiring.

Product Details:

• Brand: Victron Energy
• Model: VM-3P75CT
• Part Number: REL200300100
• Voltage connection: Direct
• Input voltage range: 85–265VAC L-N; 150–460VAC L-L
• Frequency: 50/60Hz
• Current connection: Included current transformers with 25.2-inch wire length
• Communication: Two RJ45 VE.Can connectors with terminators and one RJ45 Ethernet connector
• Power supply: Self-powered through L1-N
• Material and color: Polycarbonate, blue RAL5012
• Protection category: IP20
• Operating environment: Indoor use only; -10°F to 131°F operating temperature
• Included: VM-3P75CT meter, three wired split-core current transformers, three input terminal blocks, and two VE.Can terminators
• Required but not included: Disconnecting switch or circuit breaker and a 500mA neutral-conductor external fuse

Choose the Victron Energy VM-3P75CT for accurate single- and three-phase energy monitoring with flexible VE.Can and Ethernet connectivity in compatible Victron Energy installations.

Please contact your dealer for any returns, repairs or support issues related to this product.
